MBM-XEM-001 - Intel® FM6348 10-GbE Low Latency Switch

SKU: 9663259

Manufacturer: SUPERMICRO

MPN: MBM-XEM-001

Availability: Special Order


Price: $4,976.14
or as low as $161/month
Quantity:

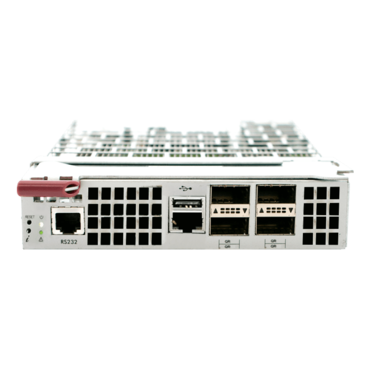

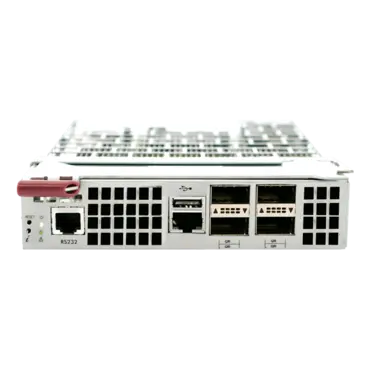

MicroBlade SDN Switch Module (MBM-XEM-001)
General Specifications
  • Intel® FM6348 10GbE Low Latency Switch
  • 4x 40Gbps QSFP uplinks
  • 56x 10Gbps or 1Gbps downlinks
  • 1 Console port
  • 1 USB port
Switching Capacity
  • 960Gbps
Physical Layer Features
  • Jumbo frames up to 9KB
  • 40 gigabit optical/copper
  • 1 gigabit optical Ethernet copper
Layer 2 Features
  • 4K VLANS
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Trees (802.1s)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • IEEE 802.3ac VLAN tagging
  • IEEE 802.1AX LAG
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • Static MAC filtering
  • UDLD
  • Uplink Failure Detection (UFD)
Data Center Features
  • L2 Data Center Bridging
  • CEE v1.01 DCB for PFV/ETS
SDN
  • Open Flow 1.x
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists (to 4K)
  • SSH, SSL Encryption
System Management
  • XML-RPC
  • Industry Standard CLI
  • Command completion
  • Content-sensitive "Help"
  • SNMP v1/v2/v3
  • SSH
  • TFTP Client
  • Syslog
  • DHCP (Client)
  • Web-based management interface - (future) - HTTP/HTTPS
  • NTP
Multicast
  • IGMP Snooping
Weight
  • 3.2lbs/1.5kg
Dimensions
(W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
