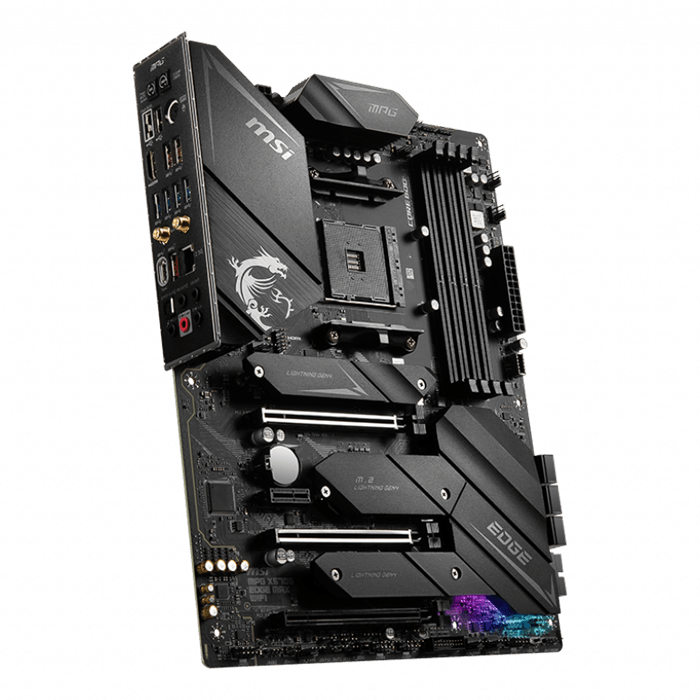

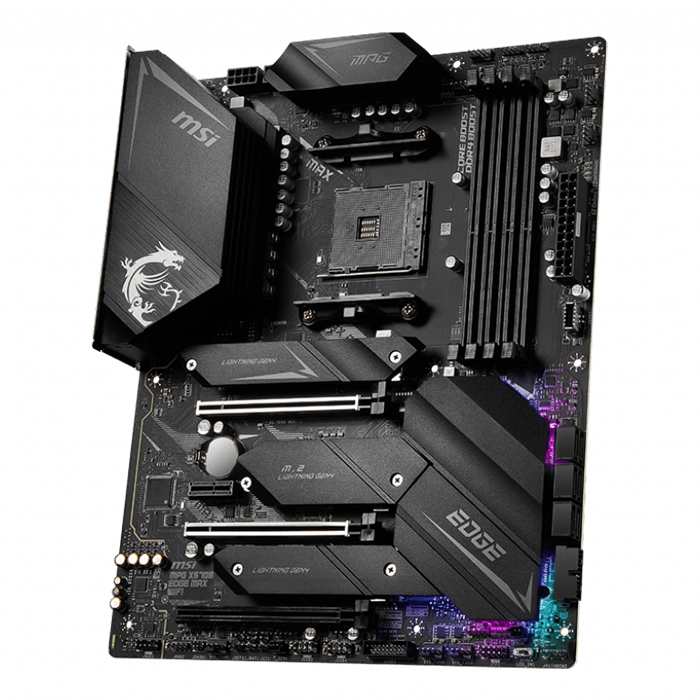

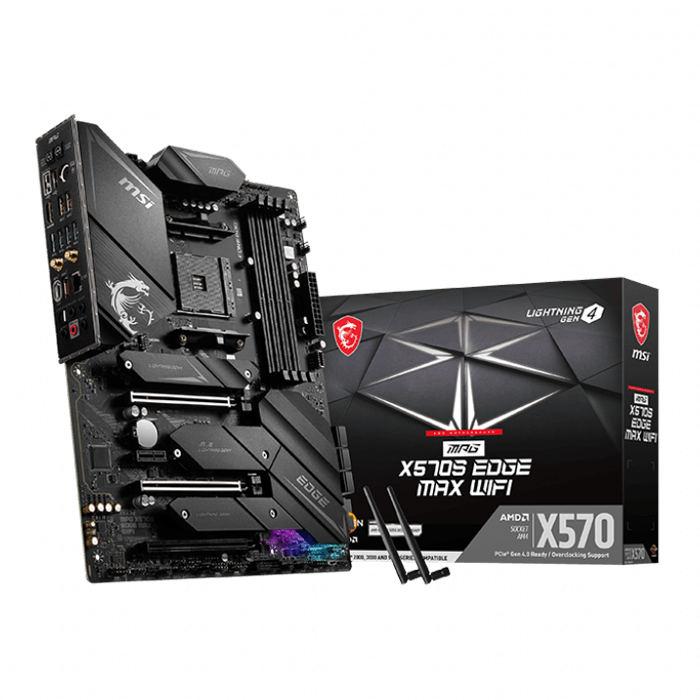

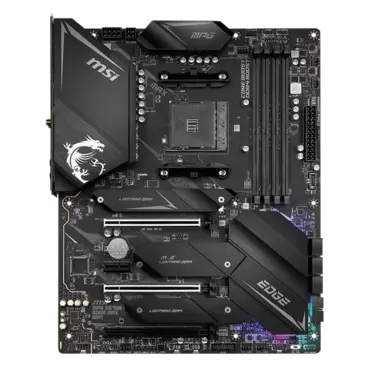

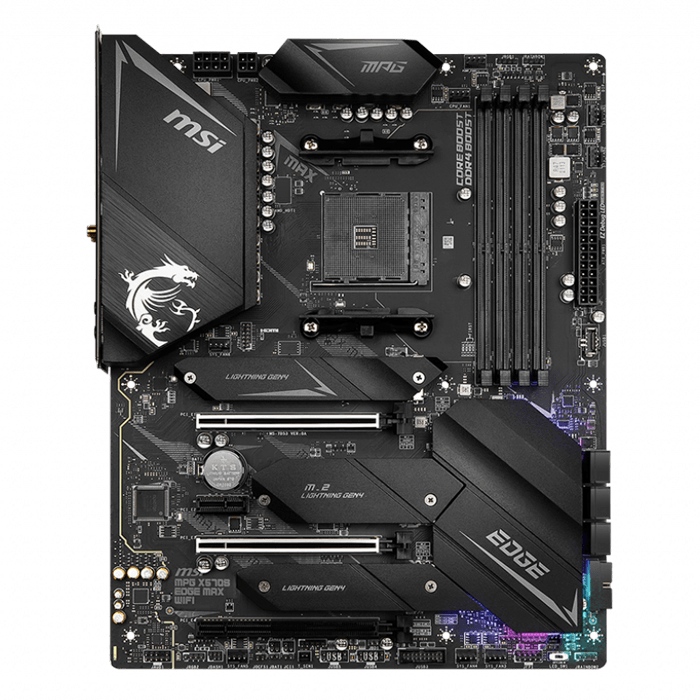

MPG X570S EDGE MAX WIFI, AMD X570 Chipset, AM4, HDMI, ATX Motherboard

• Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors ¹
• Supports Socket AM4

1. Please go to msi.com to get the newest support status as new processors are released.

AMD X570 Chipset

• 4x DDR4 memory slots, support up to 128GB
• Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC ¹
• Max frequency by A-XMP OC mode:
  • For Ryzen™ 5000 G-Series & 4000 G-Series processors
    • 1DPC 1R Max speed up to 5300 MHz
    • 1DPC 2R Max speed up to 4266 MHz
    • 2DPC 1R Max speed up to 4400 MHz
    • 2DPC 2R Max speed up to 3600 MHz
  • For Ryzen™ 5000 Series & 3000 Series processors
    • 1DPC 1R Max speed up to 5100 MHz
    • 1DPC 2R Max speed up to 4000 MHz
    • 2DPC 1R Max speed up to 4000 MHz
    • 2DPC 2R Max speed up to 3600 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory

• Supports PCIe 4.0 / PCIe 3.0
  • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
• 1x PCIe x16 slot (From processor)
  • PCI_E1 supports x16 for AMD Ryzen™ 5000 Series,5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors
  • PCI_E1 supports x8 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors
• 2x PCIe x16 slots (From X570 chipset)
  • PCI_E3 supports x4
  • PCI_E4 supports 3.0 x1 only
• 1x PCIe 3.0 x1 slot (From X570 chipset)

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz ¹ / ²

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the processor installed.

• Supports AMD CrossFire™ Technology

• 6x SATA 6Gb/s ports (From X570 chipset) ¹
• 3x M.2 slots (Key M)
  • Supports PCIe 4.0 / PCIe 3.0
    • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • Support SATA 6Gbps
  • M2_1 (From processor)
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 (From X570 chipset)
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_3 ¹ (From X570 chipset)
    • Supports 2242/ 2260/ 2280 storage devices

1. SATA5 and SATA6 will be unavailable when installing M.2 PCIe SSD in the M2_3 slot.

AMD X570 Chipset

• Supports RAID 0, RAID 1 and RAID 10

AMD X570 Chipset

• 1x USB 3.2 Gen 2 10Gbps Type-C internal connector
• 4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors
• 2x USB 2.0 ports on the back panel
• Asmedia ^® 1074 Chipset
  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
• GL850G Hub
  • 4x USB 2.0 ports are available through the internal USB connectors

AMD Processor

• 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports and 1 Type-C port on the back panel)

Realtek ^® ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• 1x Realtek ^® RTL8125B 2.5 Gbps LAN controller

Intel ^® Wi-Fi 6E AX210

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹ (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth ^® 5.2 ² , FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
2. Bluetooth 5.2 will be ready in WIN10 21H1.

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 2x USB 2.0 connectors (support additional 4 USB ports)
• 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports)
• 1x USB 3.2 Gen 2 10Gbps Type-C connector
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x 2-pin Thermal sensors connector
• 1x Tuning Controller connector

• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 1x EZ LED Control switch
• 4x EZ Debug LEDs

• 1x Clear CMOS Button

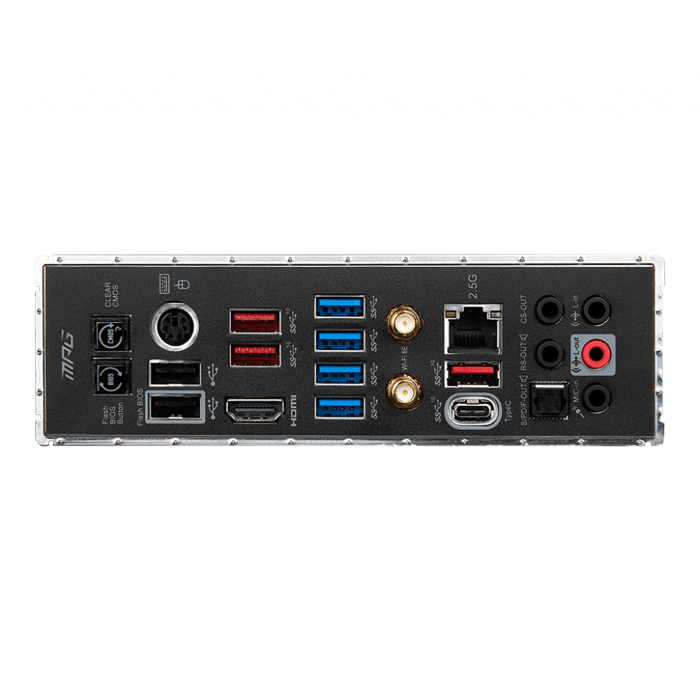

• 1x Keyboard / Mouse
• 3x USB 3.2 Gen 2 10Gbps Type-A
• 1x 2.5G LAN
• 5x Audio Connectors
• 1x Flash BIOS Button
• 2x USB 2.0
• 1x HDMI
• 4x USB 3.2 Gen 1 5Gbps Type-A
• 2x Wi-Fi / Bluetooth
• 1x USB 3.2 Gen 2 10Gbps Type-C
• 1x Optical S/PDIF Out

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

9 mounting holes

• Support for Windows ^® 10 64-bit
