MPG Z490 GAMING EDGE WIFI, Intel® Z490 Chipset, LGA 1200, DP, ATX Motherboard

SKU: 13390332

Manufacturer: MSI

MPN: MPG Z490 GAMING EDGE WIFI

Availability: Available


Price: $179.60
or as low as $6/month
Quantity:
PROCESSOR

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket1,2

  1. Please go to intel.com for compatibility information.
  2. Onboard graphics output are disabled when using the F SKU processors.
CHIPSET

Intel® Z490 Chipset

MEMORY
  • 4x DDR4 memory slots, support up to 128GB1
  • Supports 1R 2133/2666/2933 MHz*
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4266+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory
EXPANSION SLOTS
  • 1x PCIe 3.0 x16 slot (from CPU)
  • 1x PCIe 3.0 x16 slot (x4 mode, from PCH)
  • 2x PCIe x1 slots (from PCH)
ONBOARD GRAPHICS
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
  • 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
MULTI-GPU
  • Supports AMD® 2-Way CrossFire™ Technology
STORAGE

Intel® Z490 Chipset

  • 6x SATA 6Gb/s ports1
  • 2x M.2 slots (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    • M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices1
    • M2_2 slot supports 2242/ 2260 /2280 storage devices2
    • Intel® Optane™ Memory Ready***3
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
  3. Before using Intel® Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel® Z490 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB

Intel® Z490 Chipset

  • 1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel
  • 7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector)
  • 2x USB 2.0 ports on the back panel
  • 4x USB 2.0 ports available through the internal USB connectors, hub-GL850G

ASMedia® ASM3241

  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
AUDIO

Realtek® ALC1200-VD1 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1x Realtek® RTL8125B-CG 2.5G LAN Controller
WIFI & BLUETOOTH

Intel® AX201

  • MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • 802.11ac; WiFi 6 pre certified
  • Bluetooth 5.1, FIPS, FISMA
  • 1x M.2_3 Socket with E key (Wi-Fi mode)
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water pump connector
  • 6x 4-pin system fan connectors
  • 1x front panel audio connector
  • 2x system panel connectors
  • 1x chassis intrusion connector
  • 1x Clear CMOS jumper
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x TBT connector1
  • 1x RTD3 connector
  1. Thunderbolt card need support RTD3

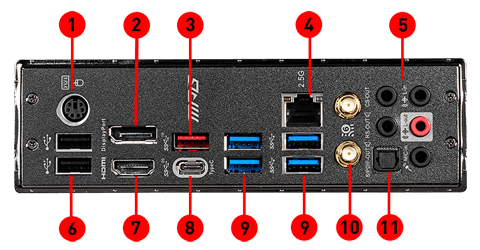

BACK PANEL PORTS
  1. PS/2 Combo Port
  2. DisplayPort
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. LAN Port
  5. HD Audio Connectors
  6. USB 2.0
  7. HDMI Port
  8. USB 3.2 Gen 2x2 20Gbps (Type-C)
  9. USB 3.2 Gen 1 5Gbps (Type-A)
  10. Wi-Fi / Bluetooth
  11. Optical S/PDIF OUT

DIMENSIONS
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
OPERATING SYSTEM
  • 9 mounting holes
BOX CONTENT
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
