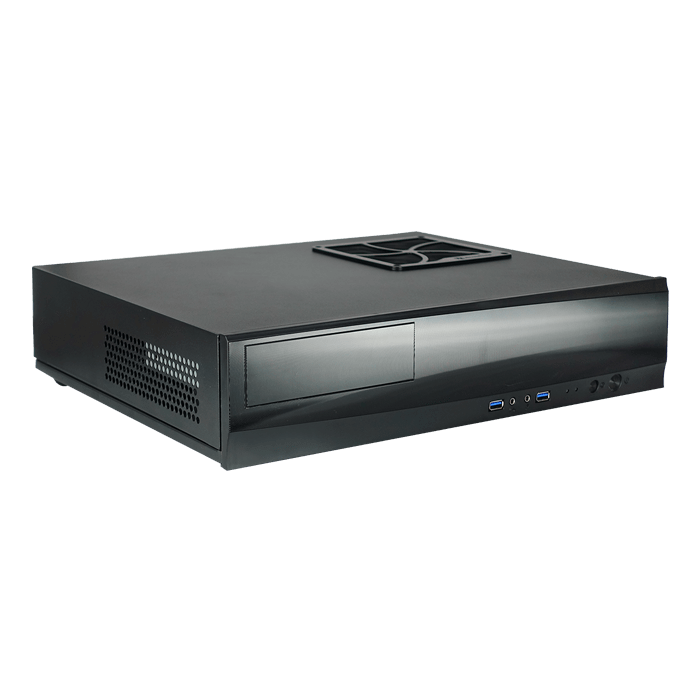

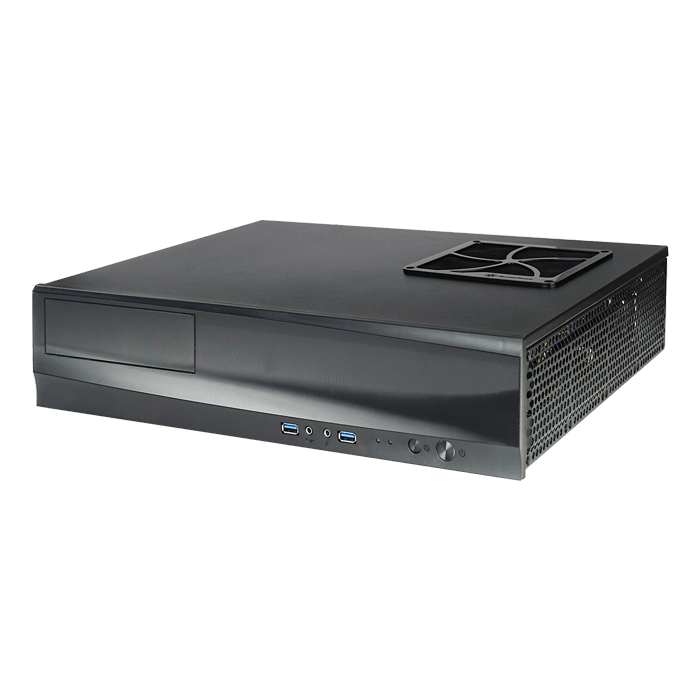

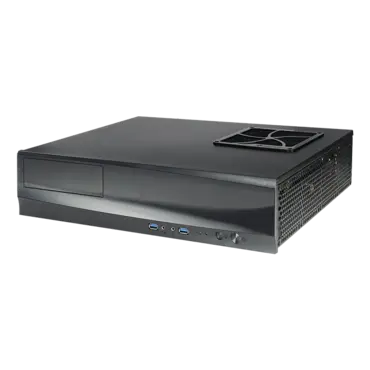

MS600N Multi Screen Appliance (with Mini DP-Male to HDMI-Female Active Adapters), Intel® 8th Generation Core™ i7 6 cores, 8GB Memory, 250GB Storage
Quantity:
- SKU: 15252396
- Manufacturer: DT RESEARCH
- MPN: MS0600N-4-2U-B
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$2,914.10
| with Mini DP-Male to HDMI-Female Active Adapters | |
| System | |
| CPU | Intel® 8th Generation Core™ i7, 6 cores CPU |
| RAM | 8GB |
| Storage | 250GB flash |
| Operating System | Microsoft® Windows® 10 IoT Enterprise operating system |
| Network Interface | 10/ 100/ 1000Mb BaseT LAN |
| Max. Display Connection | 4 screens |
| Display Resolution | DisplayPort (1.4) 4096 x 2160 @ 60Hz (x4) |
| Video Performance? | 1080P (FHD) x 8≈@12mbps/30fps; 2160P (4K) x 2~4@60mbps/30fps |
| I/O Ports | |
| Display Connectors | 4 mini-DisplayPort(1.4) outputs? |
| Audio Jack | 1 |
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| DC-in | 1 |
| Ethernet | RJ45 connector for Ethernet x 1 |
| Front Controls | Power on/off; system reset; 2 USB ports; 1 Audio out; 1 Microphone in |
| Front Indicators | Power and HDD |
| Optional Ports | WLAN (optional via internal PCI-Express slot or external USB) |
| Mechanical and Environmental | |
| AC/DC Adapter | 300W ATX |
| Fan/ Fanless | Fan |
| Enclosure | Plastic, aluminum + steel |
| Dimensions (H x W x D) | 4.1 x 17.3 x 13.3 in/ 105 x 440 x 340 mm |
| Weight | 13.2 lbs/ 6 kg |
| Temperature | Operation: 0°C – 40°C; Storage: -20°C – 60°C |
| Humidity | 5% – 95% non-condensing |
| MAJOR OPTIONS SPECS | |
| HD Video Capture Box | HDMI input with HDCP support, and connect to Signage Players via USB 2.0 port |
| HDMI Video Capture Card |
Video capture card with HDMI, component, composite and S-video inputs. * HDCP content (High-Bandwidth Digital Content Protection) not supported. |
