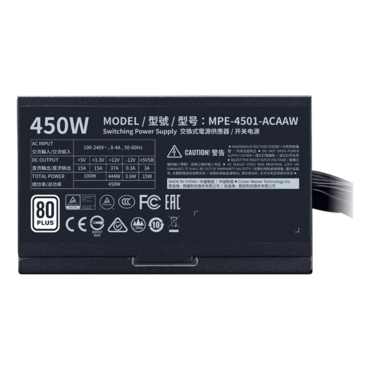

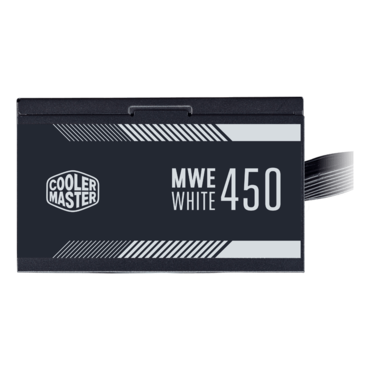

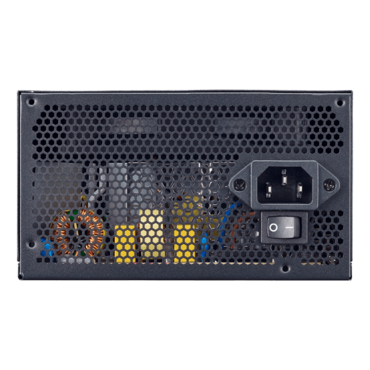

MWE 450 WHITE - V2, 80 PLUS Standard 450W, No Modular, ATX Power Supply

Quantity:
  • SKU: 13181876
  • Manufacturer: COOLER MASTER
  • MPN: MPE-4501-ACAAW-US
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$69.97
Quantity:
MWE 450 WHITE - V2, 80 PLUS Standard 450W, No Modular, ATX Power Supply

Cooler Master MWE 450 WHITE - V2 (MPE-4501-ACAAW-US). 80 PLUS STANDARD CERTIFIED. It’s important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn’t need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn’t necessarily either of those things. The MWE White guarantees a typical efficiency of 80% while being both safe and reliable.

  • 80 PLUS Standard Certified

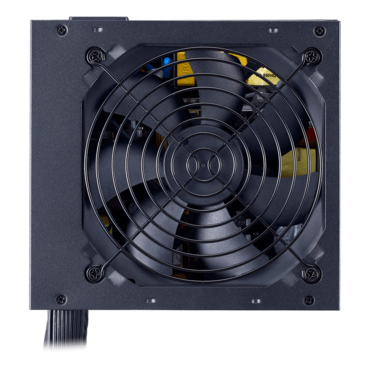

  • 120 mm HDB Fan
  • DC-to-DC + LLC Circuit Design
  • Single +12V Rail
  • Silent Mode
  • Flat Black Cables
MODEL MPE-4501-ACAAW-US
ATX VERSION ATX 12V V2.52
PFC Active PFC
INPUT VOLTAGE 100-240V
INPUT CURRENT 8-4A
INPUT FREQUENCY 50-60Hz
DIMENSIONS 140 x 150 x 86 mm
FAN SIZE 120mm
FAN BEARING HDB
FAN SPEED 1500 RPM
NOISE LEVEL @ 20% 10.12 dBA
NOISE LEVEL @ 50% 15.1 dBA
NOISE LEVEL @ 100% 28.6 dBA
EFFICIENCY 80% Typically Load
80 PLUS RATING 80 PLUS Standard
ERP 2014 LOT 3 Yes
OPERATING TEMPERATURE 40°C
POWER GOOD SIGNAL 100-500ms
HOLD UP TIME >14ms at 100% Full Load@230Vac
MTBF >100,000 Hours
PROTECTIONS OVP, OPP, OTP, SCP, UVP
REGULATORY CB, TUV, cTUVus, CE, FCC, CCC, EAC, RCM, BSMI, KC
ATX 24-PIN CONNECTORS 1
EPS 4+4 PIN CONNECTORS 1
SATA CONNECTORS 6
PERIPHERAL 4-PIN CONNECTORS 3
PCI-E 6+2 PIN CONNECTORS 2
80 PLUS Standard
MODULAR Non Modular
WATTAGE Under 500W
SERIE MWE White Series
