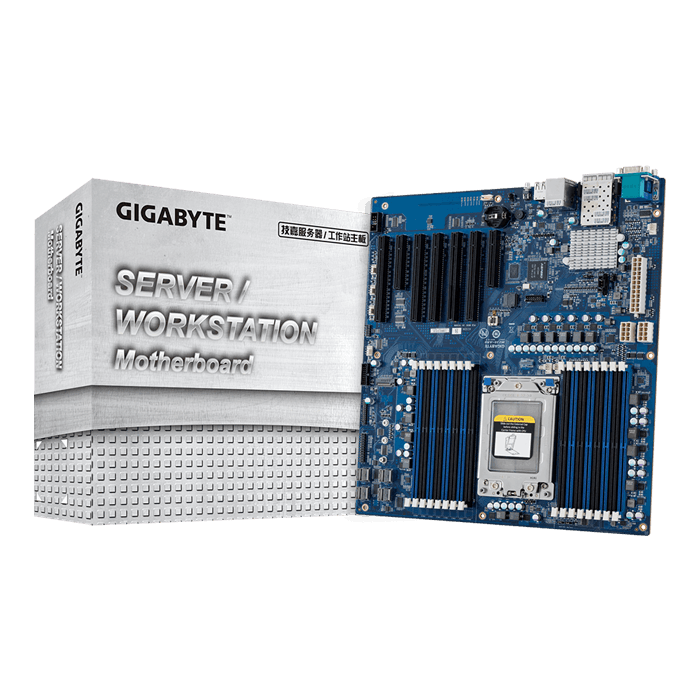

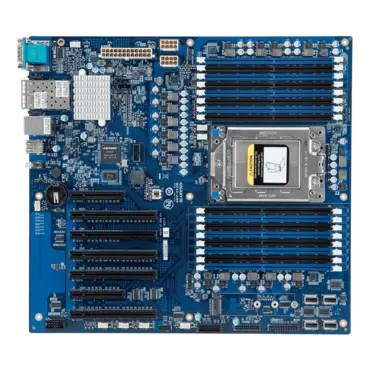

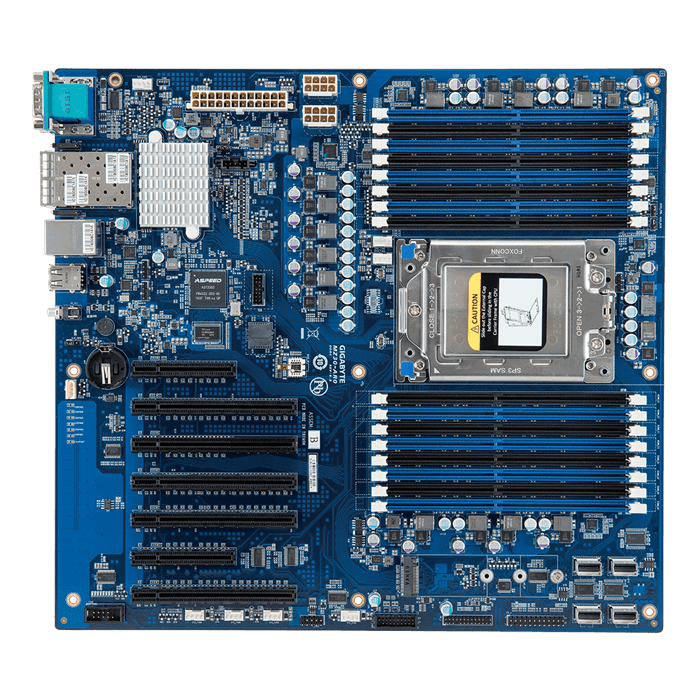

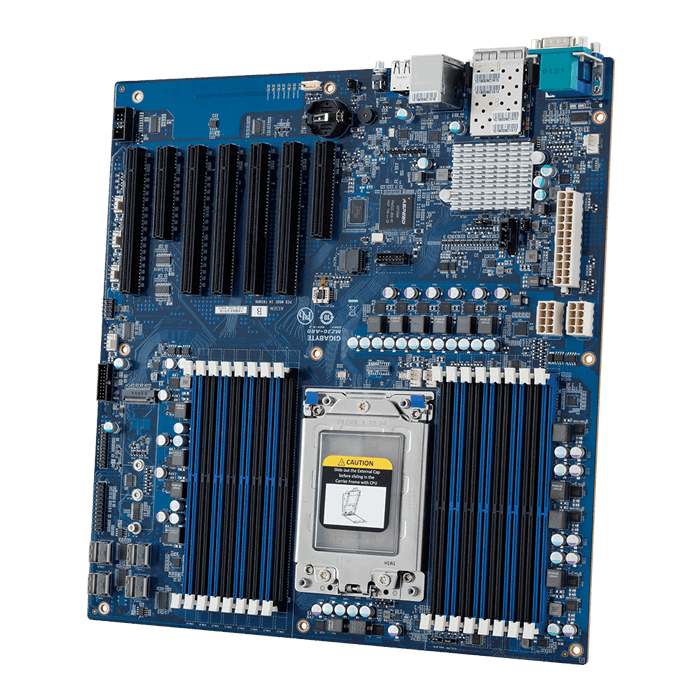

MZ31-AR0, AMD SoC, SP3, DDR4-2666 1TB RDIMM / 16, M.2, VGA, SFP+ 10GbLAN / 2, E-ATX Retail

  • SKU: 11853248
  • Manufacturer: GIGABYTE
  • MPN: MZ31-AR0
Starting At
  • AMD EPYC™ 7000 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
  • 1 x dedicated management port
  • 4 x SlimSAS (for 16 x SATA 6Gb/s) ports
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • Up to 4 x PCIe Gen3 x16 slots and 3 x PCIe Gen3 x8 slots
  • Aspeed® AST2500 remote management controller
Form Factor E-ATX
305W x 330D (mm)
CPU AMD EPYC™ 7000 series processor family
Single processor, 14nm
Up to 32-core, 64 threads
TDP up to 180W
Socket Socket SP3
Chipset System on Chip
Memory 16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 64GB supported
Memory speed: 2666(1DPC)/2400/2133* MHz

- Note:
Memory speed run at 2133MHz when 1R/2R memory modules are fully populated
LAN 2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
SATA 4 x SlimSAS for 16 x SATA III 6Gb/s ports
Expansion Slots Slot_7: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
Internal I/O 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

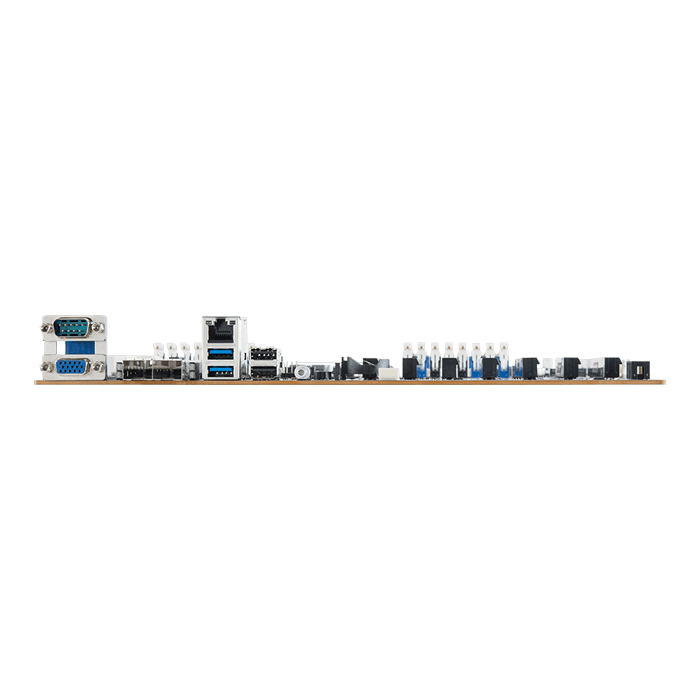

Rear I/O 2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED
TPM 1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
OS Compatibility Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.9
Red Hat Enterprise Linux 7.3

SUSE Linux Enterprise Server 11.4
SUSE Linux Enterprise Server 12 .2

Ubuntu 16.04
Ubuntu 17.04
Board Management Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Hardware information
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Fan profiles
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (HTML5)
PSU Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Operating Properties Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content 1 x MZ31-AR0
1 x I/O shield
1 x Quick start guide
2 x SlimSAS for 8 x SATAIII 6Gb/s cables
Single Box dimensions: 409 x 355 x 78 mm
Carton dimension: 729 x 415 x 432 mm
Quantity: 10 x single box with one carton
Bulk Packaging Content 10 x MZ31-AR0
1 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers Retail: 9MZ31AR0MR-00
Bulk: 9MZ31AR0NR-00
Part Numbers:
- I/O shield: 12AIO-MZ30A0-00R
- SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600800-A4R
- Quick start guide: 25ME0-MZ3000-Q0R
- Fan-sink: 12SF2-01A067-00R ( in option)
