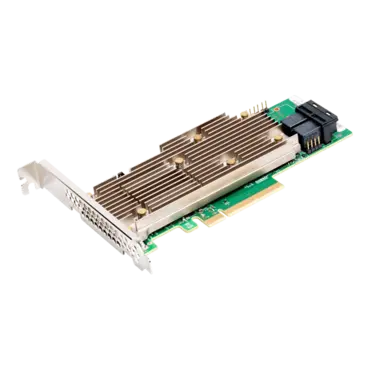

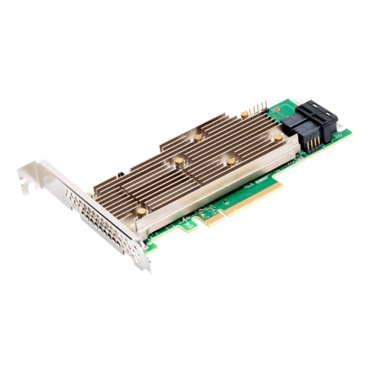

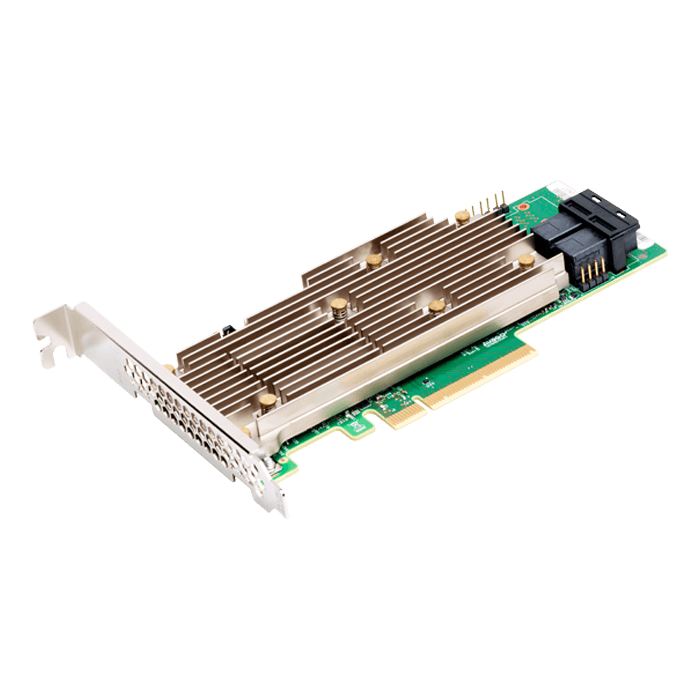

MegaRAID 9440-8i, SATA/SAS/PCIe (NVMe) 12Gb/s, 8-Port, PCIe 3.1 x8, Controller
Quantity:
- SKU: 11628689
- Manufacturer: Broadcom
- MPN: 05-50008-02
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$358.80
MegaRAID 9440-8i, SATA/SAS/PCIe (NVMe) 12Gb/s, 8-Port, PCIe 3.1 x8, Controller
Enables endless design flexibility with the ability to operate NVMe, SAS, or SATA storage devices in a single drive bay
Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9440-8i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of non-business crticial applications.
Broadcom’s Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.
- Connect up to 63 SAS/SATA devices or 24* NVMe devices per controller
- Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Support critical, high-bandwidth applications with PCIe® 3.1 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
| Product | Manufacturer Part # | What's in the Box |
| MegaRAID 9440-8i | 05-50008-02 | MegaRAID 9440-8i, QIG, LP bracket |
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distrib. Inventory | No |
| Generation | 12 Gb/s |
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| Physical Dimensions | Low profile 6.127” x 2.712” |
| Host Bus Type | x8 lane PCI Express® 3.1 |
| Internal Ports | 8 |
| Data Transfer Rates | 12 Gb/s SAS-3 and 8 GT/s PCIe Gen 3 (NVMe) Compliant |
| Devices Supported | SAS/SATA: 63, NVMe: 4 x4, up to 24 x2 or x4* |
| Internal Connectors | 2 Mini-SAS HD x4 SFF-8643 |
| Operating Temperature | 10° to 55° C |
| Operating Voltage (V) | +12V +/-8%, 3.3V +/-9% |
| OS | Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/down-load-serach for details on versions. |
| Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
| I/O Processor / SAS Controller | SAS3408 I/O controller (IOC) |
