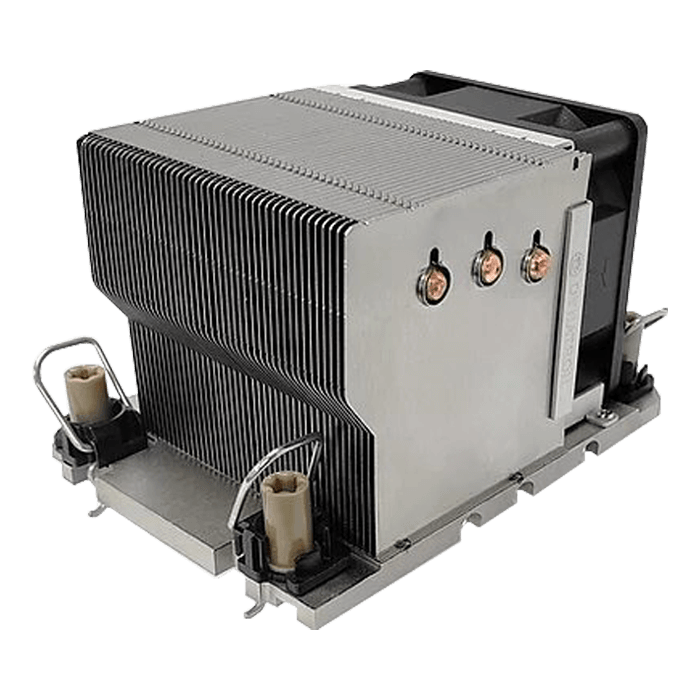

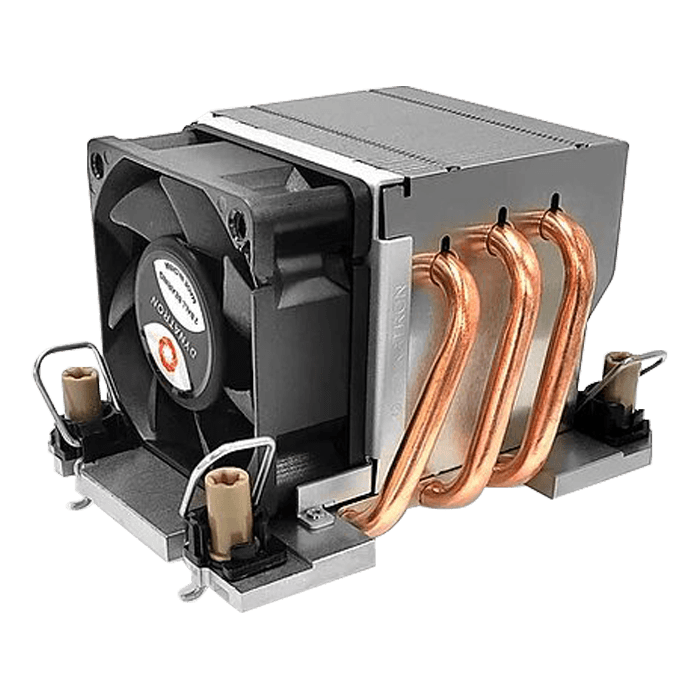

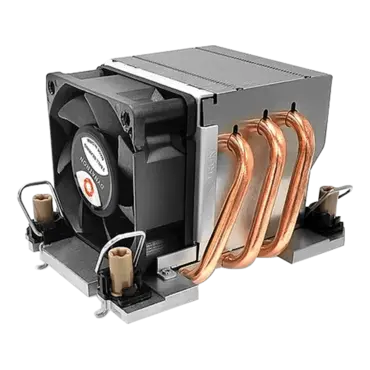

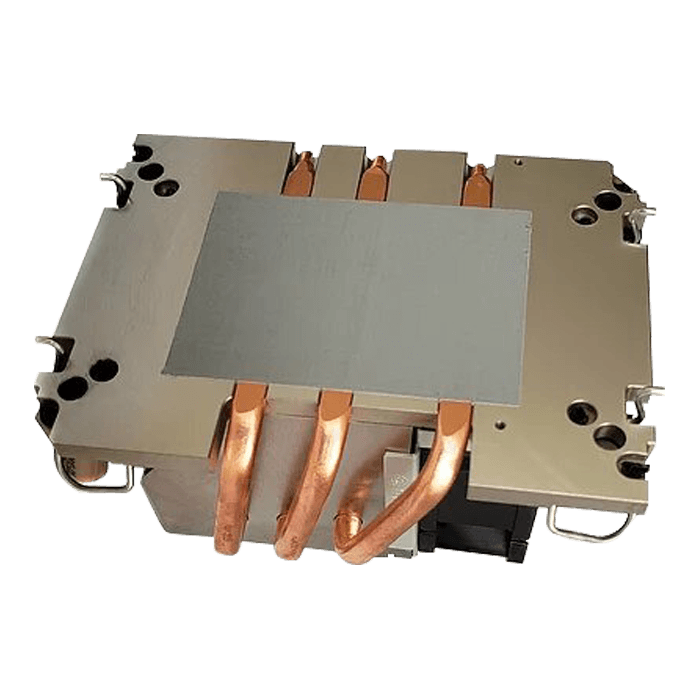

N5, Socket LGA 4189, 66mm Height, 205W TDP, Copper/Aluminum CPU Cooler

SKU: 13749753

Manufacturer: DYNATRON

MPN: N5

Availability: Available


Price: $35.54
or as low as $1/month
Quantity:

The Dynatron N5 CPU cooler is designed for 2U Active cooler for INTEL LGA4189

CPU Support

Intel

CPU Socket

FCLGA 4189-4/5(Socket P4/P5 or P+)

Solution

2U Server and Up

Dimensions

113.0 x 82.0 x 66.0 mm

Weight

440 g

Material

Aluminum Fin stack with Heat Pipe embedded

Fan Dimension

60 x 60 x 25 mm

Speed

At Duty Cycle 0~20%: 1700 ± 200 RPM
At Duty Cycle 50%: 4000 ± 15% RPM
At Duty Cycle 100%: 8000 -0 / +500 RPM

Rated Voltage

12V

Bearing

2 Ball Bearing

Power

At Duty Cycle 0~20%: 1.20 W
At Duty Cycle 50%: 2.520 W
At Duty Cycle 100%: 9.60 W

Air Flow

At Duty Cycle 0~20%: 9.86 CFM
At Duty Cycle 50%: 23.21 CFM
At Duty Cycle 100%: 49.32 CFM

Noise Level

At Duty Cycle 0~20%: 19.32 dBA
At Duty Cycle 50%: 37.89 dBA
At Duty Cycle 100%: 54.26 dBA

Air Pressure

At Duty Cycle 0~20%: 0.860 mm-H2O
At Duty Cycle 50%: 4.760 mm-H2O
At Duty Cycle 100%: 21.50 mm-H2O

Lead Wire Pin Out

Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)

Thermal Grease

Shin-Etsu 7762 Pre-printed
