P85, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 13652719
  • Manufacturer: IN WIN
  • MPN: IW-PS-P850W
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$203.59
Quantity:

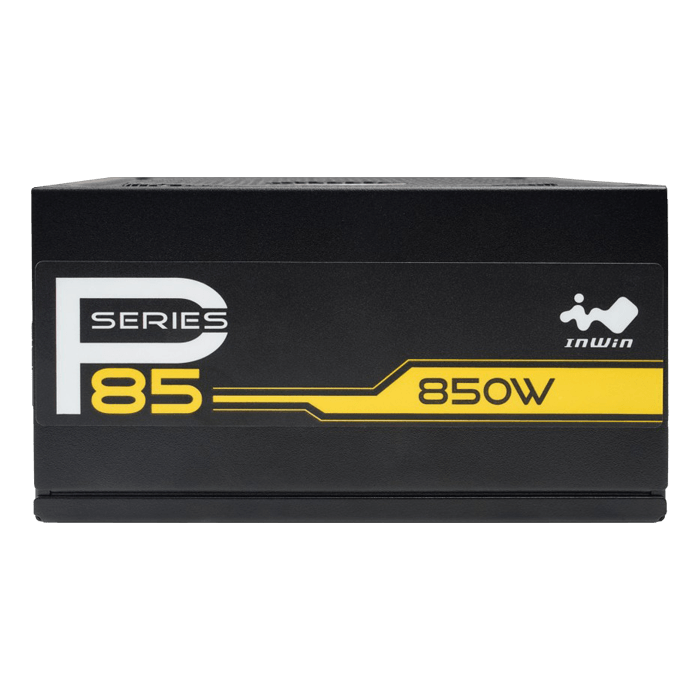

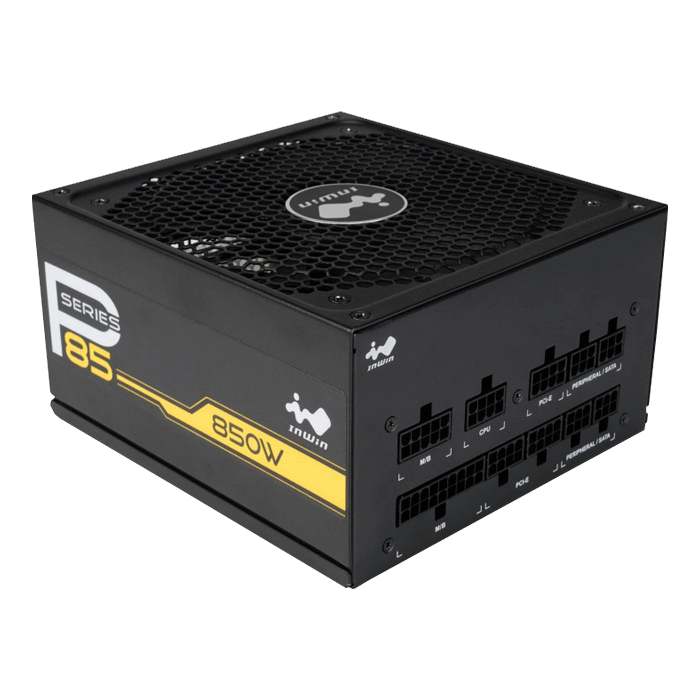

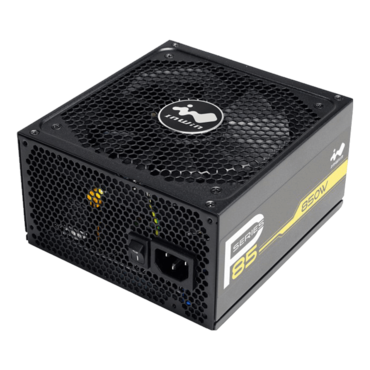

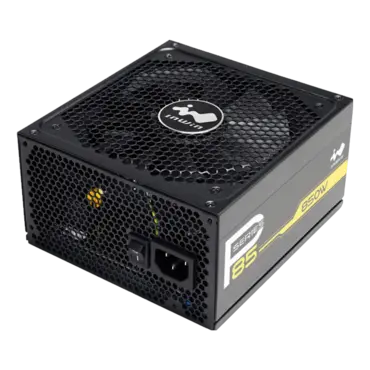

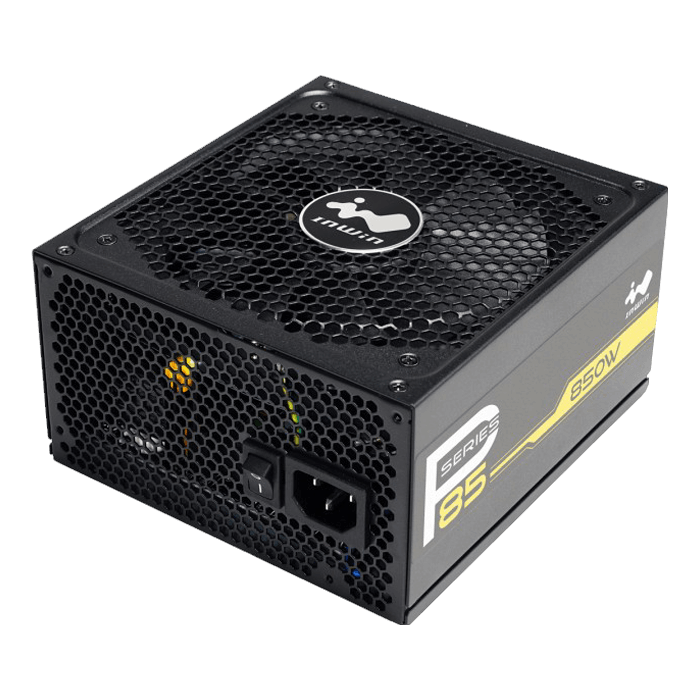

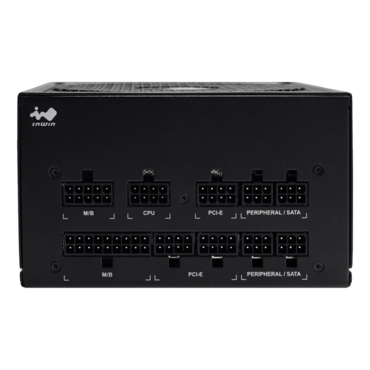

P85, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply

InWin P85 (IW-PS-P850W). The P Series is an 80 PLUS®Gold certified power supply that focuses its features on efficiency, reliability and overall PC building experience. The P Series’ low noise output makes this PSU the optimal choice for most PC builds.

Model P85
Model Number IW-PS-P850W
Total Power 850W
Material SECC
Type ATX12V V2.4
EPS12V V2.92
Cable Management Fully Modular
PFC Active PFC ( >0.95)
Efficiency 80 PLUS® Gold (Up to 90%)
MTBF (Hours) >100,000 hrs.
AC Input 100-240Vac.,10A, 50-60Hz

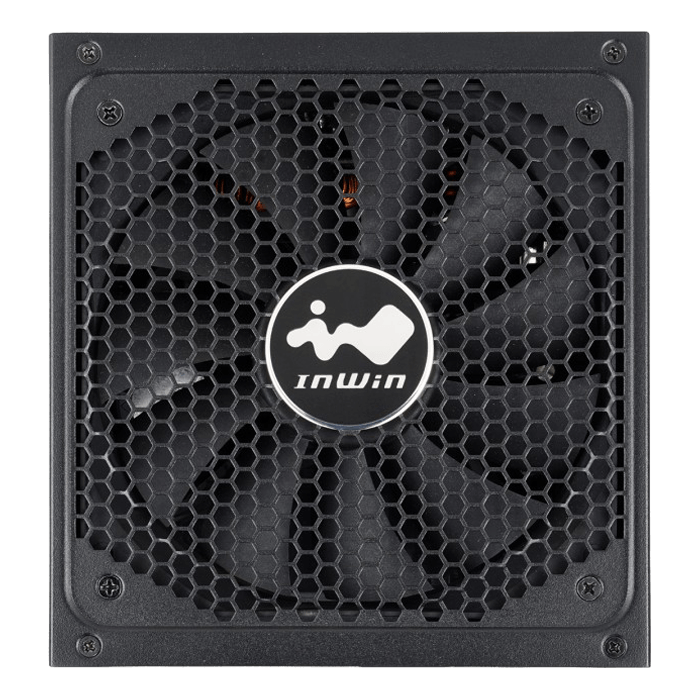

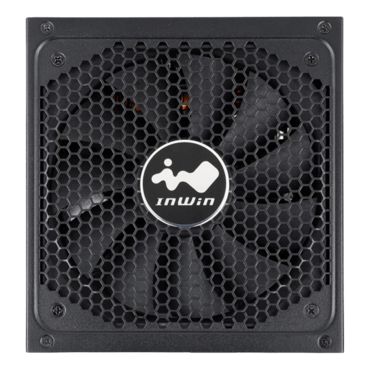

Fan 135mm FDB Fan
Typical Load Fan Noise (dBA)
(50% Loading)
<25dBA
Operating Temperature Range (°C) 0~40 °C
Full Protection OCP/ OVP/ UVP/ SCP/ OTP/ OPP
Safety Certifications cTUVus/ TUV/ CB/ BSMI/ CE/ FCC/ EAC/ CCC/ RCM
Dimensions (L x W x H) 160 x 150 x 86mm
Package Dimensions (L x W x H) 210 x 325 x 100mm
Net Weight 2.64 kg
Gross Weight 3.12 kg
Warranty 5 Years

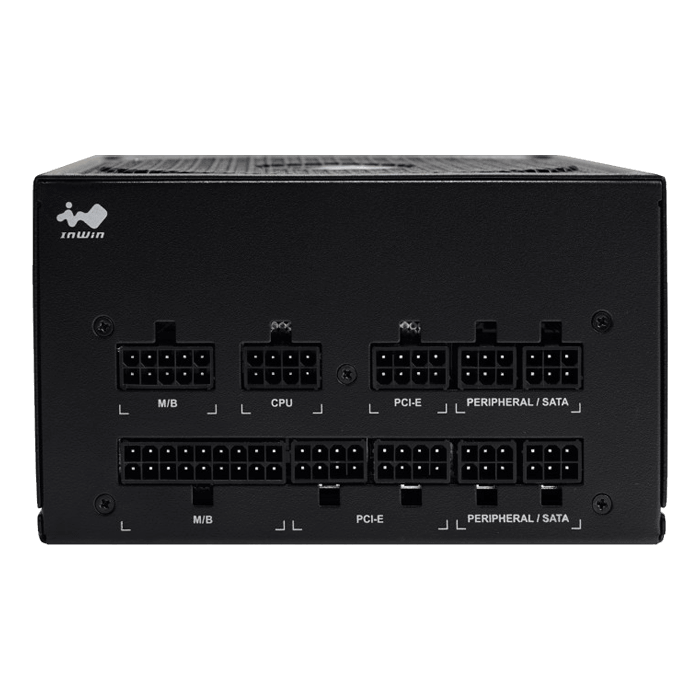

Connectors 20+4 Pin Motherboard 1
8 (4+4) Pin CPU 2
8 (6+2) Pin PCI-E 6
4 Pin Peripheral 4
SATA (90 Degree) 12
Floppy 1
