PCE-AC56, AC1300, Dual-Band, Wi-Fi 5, PCIe Wireless Adapter
Quantity:
- SKU: 8532966
- Manufacturer: ASUS
- MPN: PCE-AC56
- Availability: LOW STOCK
Starting At
$34.76
PCE-AC56, AC1300, Dual-Band, Wi-Fi 5, PCIe Wireless Adapter

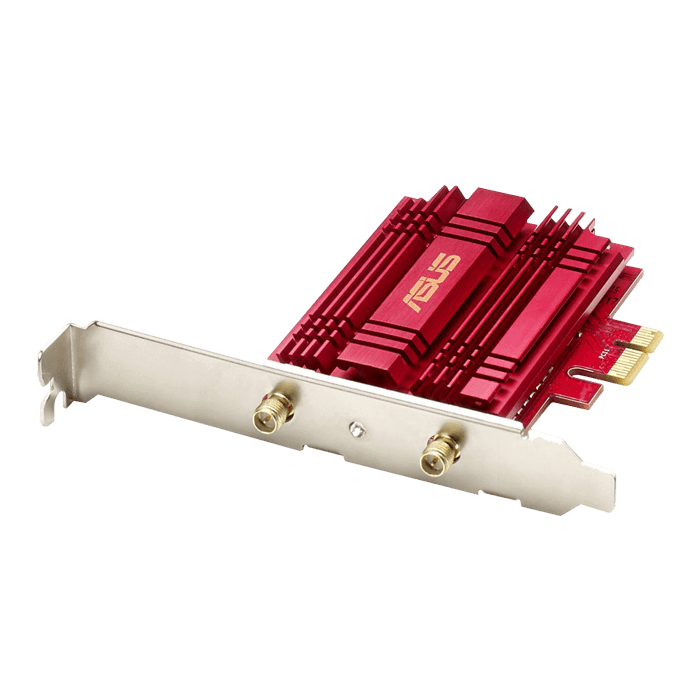

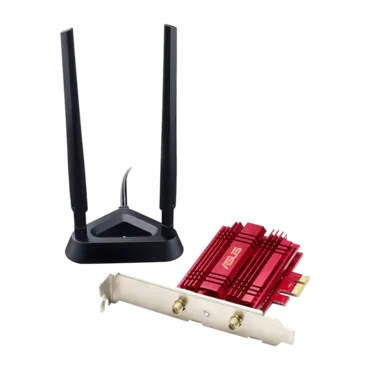

The ASUS PCE-AC56 is a 802.11ac Wi-Fi PCI Express adapter which upgrades your desktop from tangle-some Ethernet cables to carefree industry-leading 802.11ac at up to 867 Mbps. Broadcom® TurboQAM™ technology super-charges 2.4 GHz 802.11n performance from 300 Mbps to 400 Mbps with compatible devices. Plus, the stylish external magnetized antenna base gives you more flexibility in adjusting antenna placement to get the best signal reception quality possible.
- Instant 802.11ac Wi-Fi upgrade for your desktop PC: no more messy Ethernet cables needed.
- Next-generation 802.11ac chipset for super-fast connections up to 867 Mbps
- Selectable dual-band 2.4 GHz/ 5 GHz operation, backwards-compatible with all existing devices
- Broadcom® TurboQAM™ technology gives 33% faster 802.11n performance, with speeds up to 400 Mbps
- High-power design reduces wireless dead zones with 150% greater coverage
- Specially designed heatsink ensures stable and reliable continuous operation
| Network Standard | IEEE 802.11a/b/g/n/ac |
| Interface | PCI Express |
| Antenna | 2 x R SMA Antenna |
| Operating Frequency | 2.4GHz/5GHz |
| Operation Channel | 11 for N. America, 13 Europe (ETSI) |
| Product Segment | AC1300 enhanced AC performance with TurboQAM; 400+867Mbps |
| Data Rate | 802.11a/b/g/n/ac : downlink up to 1300Mbps, uplink up to 1300Mbps (20/40/80MHz) |
| Modulation | 64QAM, 16QAM, CCK, DQPSK, DBPSK, OFDM |
| Management | Wireless Configuration |
| Utilities | Wireless setting |
| Security | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPS support |
| Certificates | CE, FCC, C-Tick, IC |
| Dimensions | 120.9 x 99.1 x 21.6 mm (LxWxH) |
| Weight | 105 g (Device Only) |
| Environmental |
Operating Temperature: 0 °C to 40 °C ( °F to ºF) Storage Temperature: -20 ° to 65 ° C ( °F to °F) Operating Humidity: 10 % to 90 % (Non-condensing) Storage Humidity: 10 % to 90 % (Non-condensing) |
| OS Support |
Windows® 8.1 , 32bit/64bit Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® Vista , 32bit/64bit Windows® XP , 32bit/64bit |
| Package Content |
Dipole Antenna x 2 External magnetic antenna base Low Profile Bracket Support CD Warranty card Wireless LAN Adapter |
