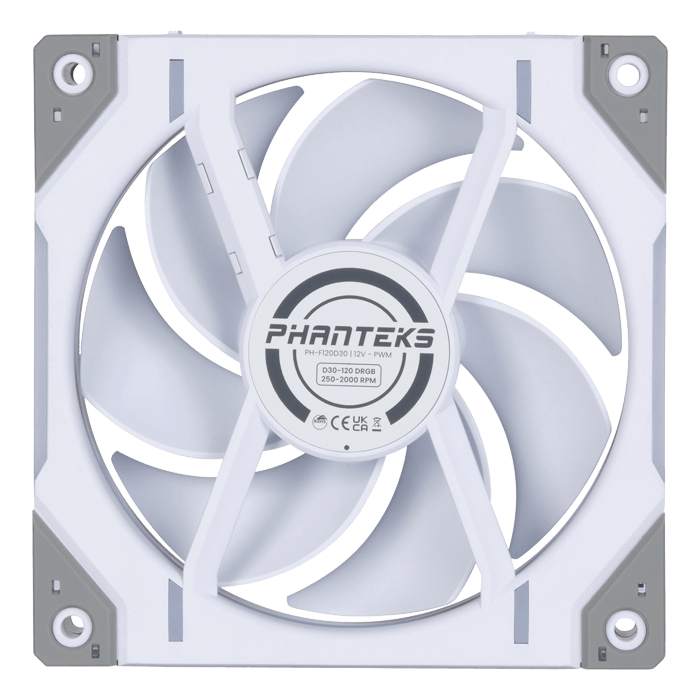

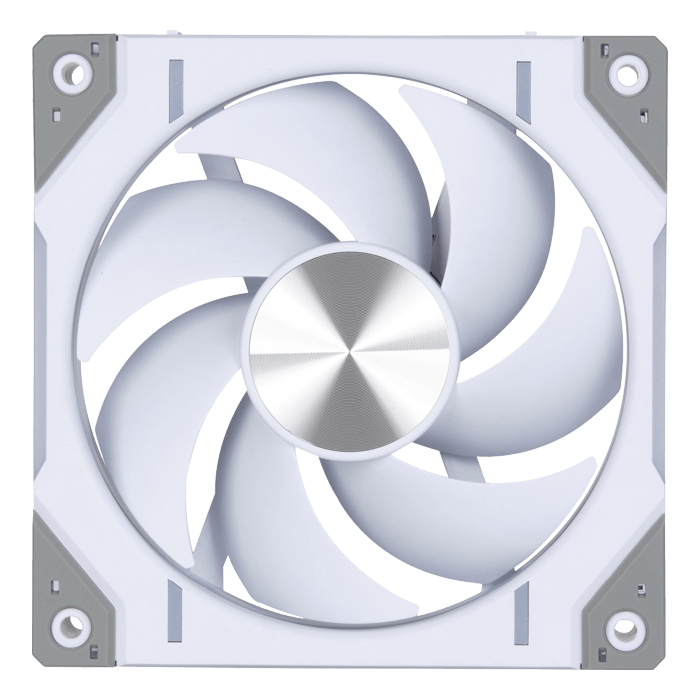

PH-F120D30 D-RGB 120mm, White, RGB LEDs, 2000 RPM, 64.3 CFM, 30.2 dBA, Cooling Fan

  • SKU: 16273794
  • Manufacturer: PHANTEKS
  • MPN: PH-F120D30_DRGB_PWM_WT01
Starting At
PH-F120D30 D-RGB 120mm, White, RGB LEDs, 2000 RPM, 64.3 CFM, 30.2 dBA, Cooling Fan

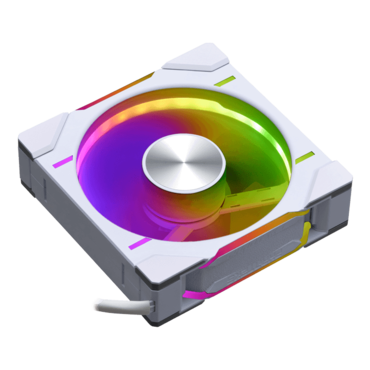

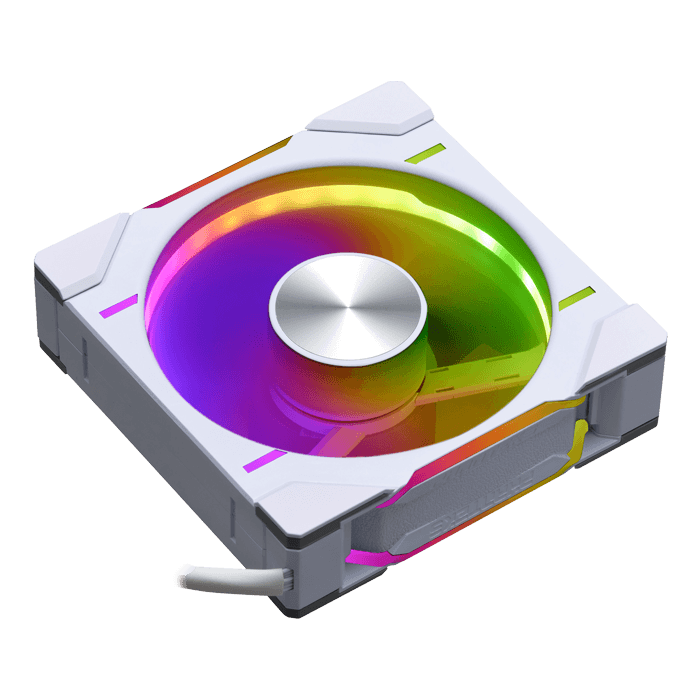

The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.
The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.

Model No. PH-F120D30_DRGB_PWM_BK01
UPC Code 886523002925
Fan Dimension (WxHxD) 120 x 120 x 30 mm
Blade Geometry Seven Blades Design
Frame Color Black/White
Rated Voltage DC 12V / LED 5V
Operating Voltage Range 5 -13.2V
Speed 250 -2000 +10% RPM
Max. Airflow 64.3 CFM
max. Air Pressure 3.01 mm H2O
Noise Level 30.2 dB(A)
Fan Connector 4-Pin PWM
Cable Length 700 mm / 27.56 in
D-RGB Connector 3-Pin JST Daisy-chain
D-RGB Cable Length 600+100 mm / 23.62+3.94 in
LED Number 30 (D-RGB)
LED Rated Current Max 0.45A
MTBF 50.000 hrs at 40°C
Fan Weight 300 g
Package Contents 1x PH-F120D30_DRGB_PWM
4x Fan Screw
4x Radiator Screw 36mm
1x Corner Clip Cable, 3x Corner Clip
1x Bridge Clip, 1x Bridge Clip Connector
4x Screw Cover Corner (2L, 2R)
2x Screw Cover Bridge
1x D-RGB M/B Adapter
Warranty 3 years
