PH-F120SP_BK 120mm, 1300 RPM, 54.4 CFM, 24.2 dBA, Cooling Fan

  • SKU: 13002266
  • Manufacturer: PHANTEKS
  • MPN: PH-F120SP_BK
Starting At

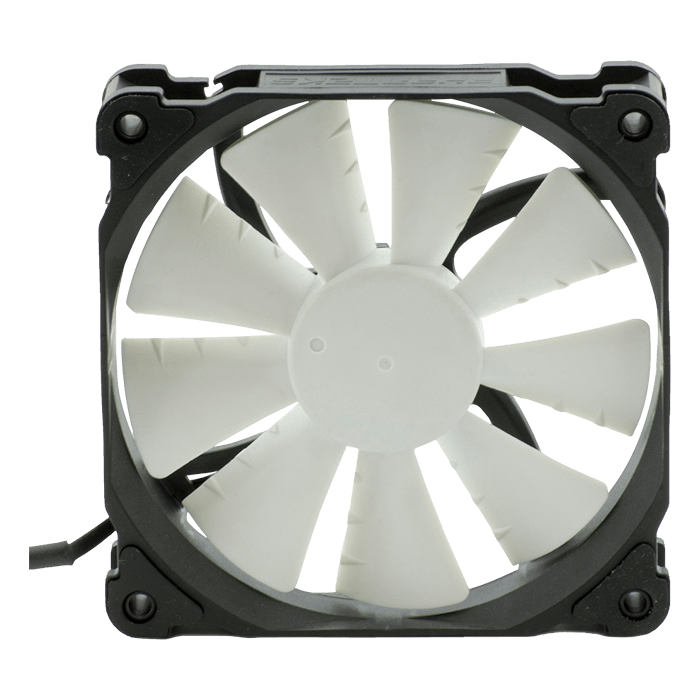

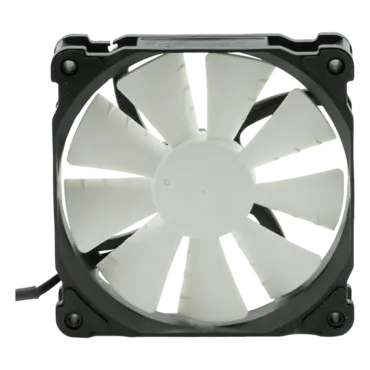

PH-F120SP_BK 120mm, 1300 RPM, 54.4 CFM, 24.2 dBA, Cooling Fan
The new redeveloped blades in PH-F120SP_BK are angled lower to achieve higher air pressure. The redesigned MVB blades generate better airflow and produces better performance. It improves the balance of airflow and air pressure when using with as a case fan. The PH-F120SP_BK has a larger base size with a magnetic brushless DC motor to avoid the effects of resonance and for rotational stability. To create better structural strength and reduce the vibration occurrence, Phanteks redesigned the back frame of the PH-F120SP_BK. With the noise reduction challenges in mind, we modified the component for lower actuator noise, PCBA for lower electromagnetic noise, brushless motor structure for lower operating noise and frame rib for lower wind and vibration noise.
Model NO : PH-F120SP_BK
UPC Code : 886523000501
Fan Dimensions
120 x 120 x 25mm
Speed (RPM)
1300 ± 250 rpm
Max Airflow
54.4 CFM
Acoustical Noise
24.2 dB (A)
Static Pressure
1.29 mm H2O
Input Current
0.08 A
Rate Voltage
DC 12V
Input Power
0.96 W
>150,000 h
Speed Sensor
3 pins
Cable Length
Scope of Delivery
1x 120mm Premium Fan
4x Fan Screws
5 Years
