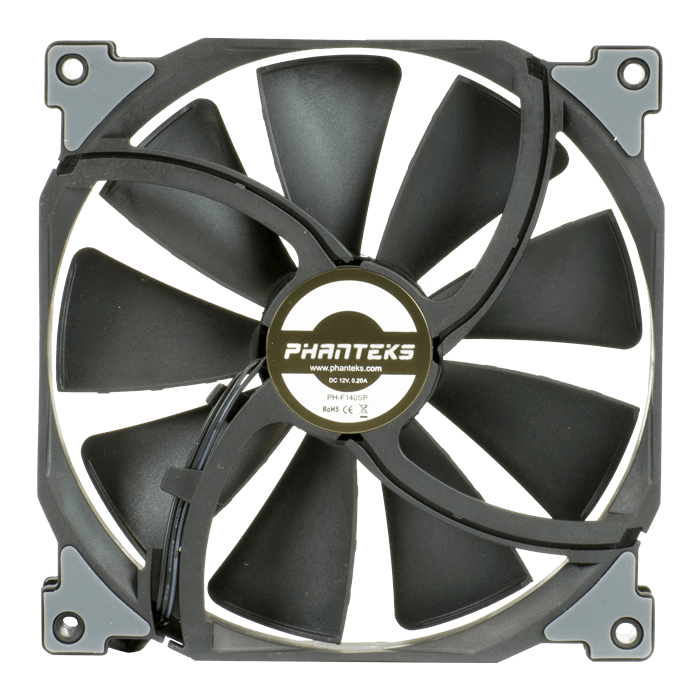

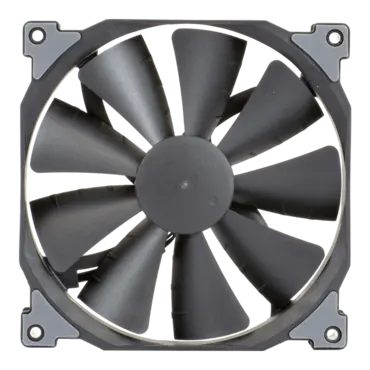

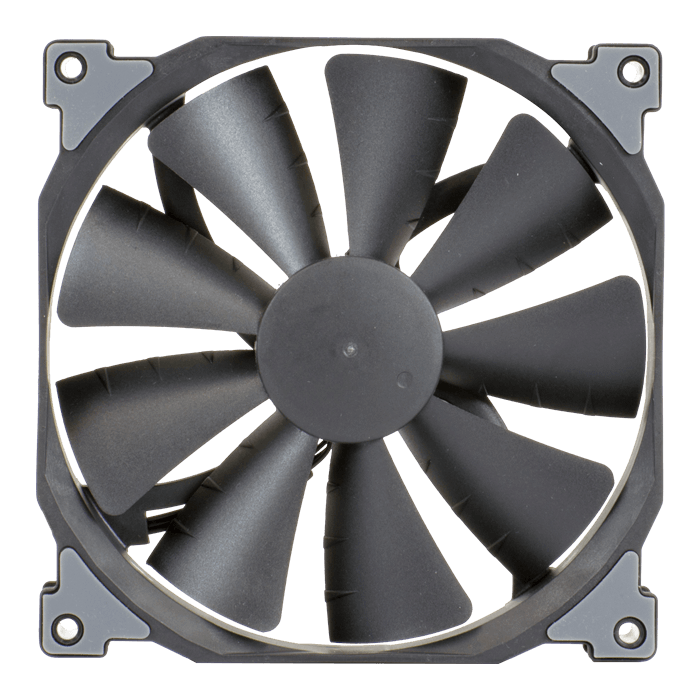

PH-F140SP_BBK 140mm, 1200 RPM, 82.1 CFM, 19 dBA, Cooling Fan

  • SKU: 13499136
  • Manufacturer: PHANTEKS
  • MPN: PH-F140SP_BBK
Starting At
PH-F140SP_BBK 140mm, 1200 RPM, 82.1 CFM, 19 dBA, Cooling Fan

A great choice for case and radiator fan upgrade. The Phanteks PH-F140SP 140mm Premier Case Fan is specifically designed to overcome high static pressure, blade deflection, and noise challenges. Up to nine blades with MVB feature produce powerful yet silent downdraft airflow. The UFB bearing, composed by MOSS and SSC systems, ensures long lifespan and consistent operation. The larger base size with a magnetic brushless DC motor provides maximum rotational stability, while the acoustic dampers, along with the redesigned back frame and PCBA, effectively minimize the vibration and noise. Plus, the PH-F140SP also features 140mm mounting hole for easy installation.

  • 140mm
  • 1200 +/- 250 rpm 82.1 CFM
  • UFB (Updraft Floating Balance)
  • 19 dB (A)
Model NO : PH-F140SP_BBK
UPC Code : 886523000808
Fan Dimensions 140 x 140 x 25mm
Speed (RPM) 1200 ± 250 rpm
Max Airflow 82.1 CFM
Acoustical Noise 19 dB (A)
Static Pressure 1.33mm H2O
Input Current 0.14 A
Rate Voltage DC 12V
Input Power 1.8 W
MTBF >150,000 h
Speed Sensor 3 pins
Cable Length 500mm
Scope of Delivery 1x 140mm Premium Fan
1x 400mm Extension Cable
4x Fan Screws
Warranty 5 Years
