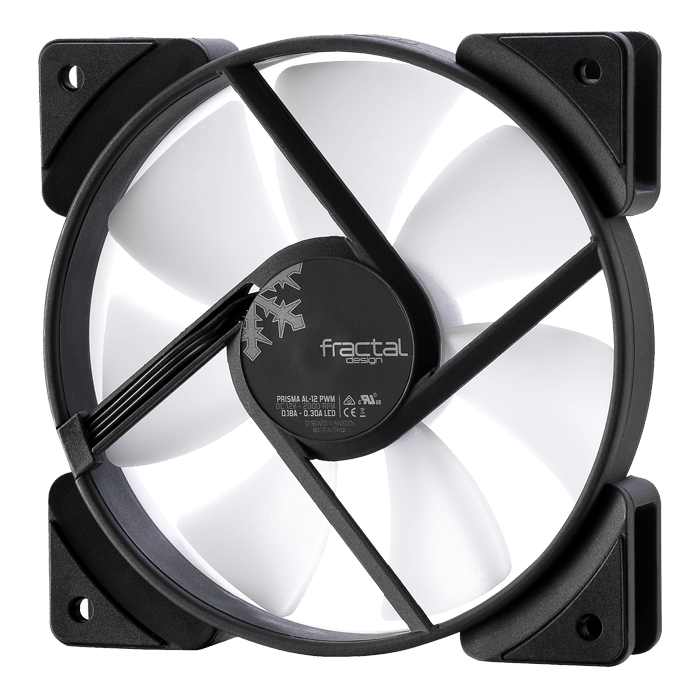

Prisma AL-12 PWM 3P, 3 x 120mm, 2000 RPM, 85.71 CFM, 32.7 dBA, Cooling Fans

SKU: 12635532

Manufacturer: Fractal Design

MPN: FD-FAN-PRI-AL12-PWM-3P

Availability: Available


Price: $67.49
or as low as $2/month
Quantity:
Specification Prisma AL-12 PWM
Size 120 x 120 x 25 mm
Blade color Semi-opaque white
Frame color Black
LED type Addressable RGB
Screw hole pattern 105 x 105 mm
Power connector 4-pin
Bearing LLS
Number of blades 7
Rotational speed 500 – 2000 RPM
Noise level  32.7 dB(A)
Airflow (CFM)  85.71 CFM
Airflow (m3/h)  145.62 m3/h
Static pressure  2.78 mmH2O
Fan input power  2.16W
Fan max input current  0.18A
Fan input voltage 12V
Fan starting voltage 7V
LED input power  1.50W
LED max input current  0.30A
LED input voltage 5V
Low (0-20%) PWM speed 500 RPM
Low PWM noise level 14.8 dB(A)
Low PWM airflow  20.68 CFM
Low PWM static pressure  0.36 mmH2O
MTBF 100,000 hrs
Fan weight 169 g
Package weight 212 g
Cable length 500 mm
Cable type Black sleeved
Package dimensions
(Excluding hanging tab)
147 x 122 x 30 mm
157 x 122 x 80 mm
