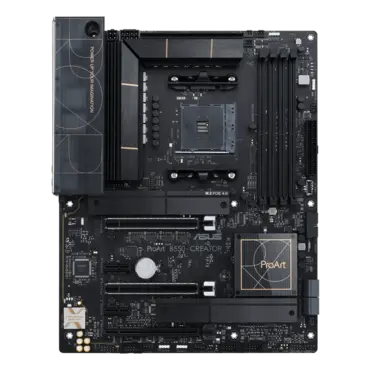

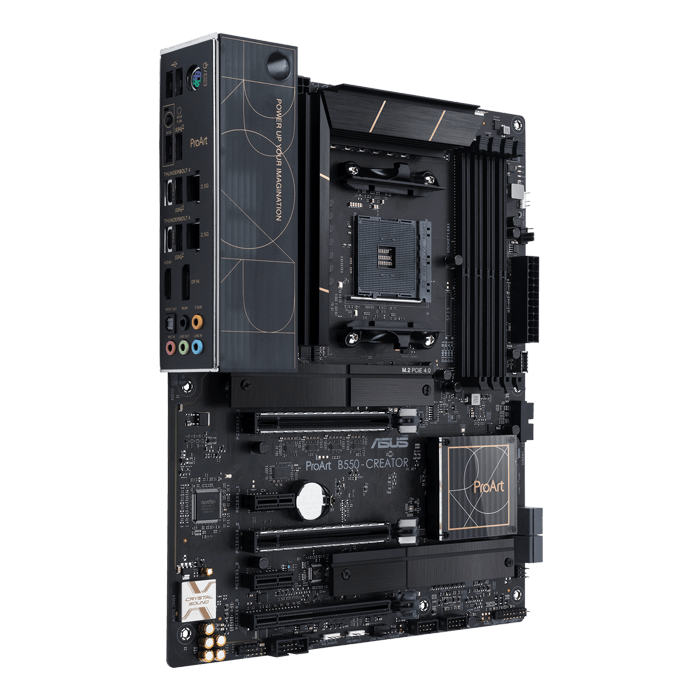

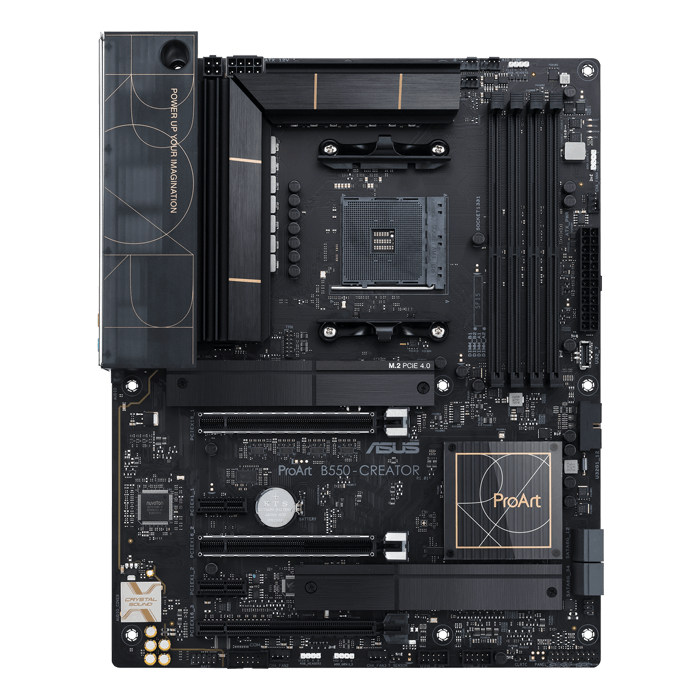

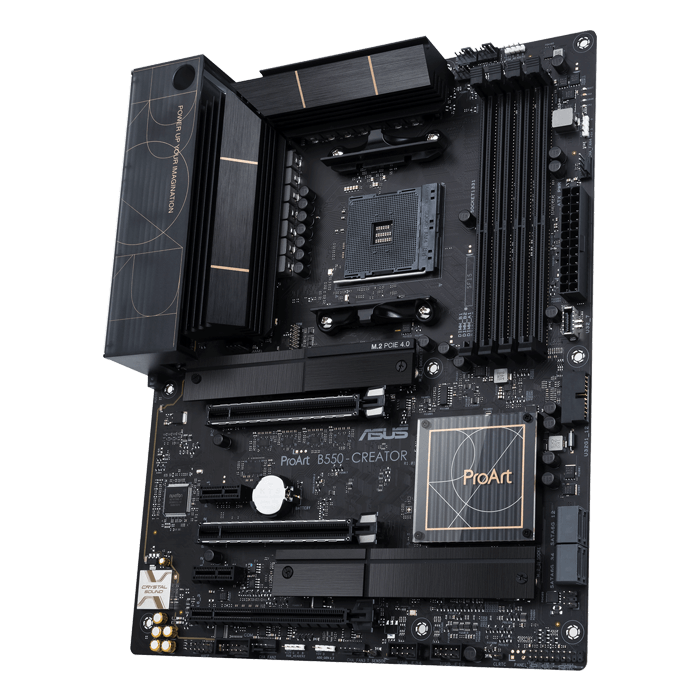

ProArt B550-CREATOR, AMD B550 Chipset, AM4, 2x Thunderbolt™ 4, ATX Motherboard

Quantity:
  • SKU: 13998938
  • Manufacturer: ASUS
  • MPN: ProArt B550-CREATOR
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$263.57
Quantity:
ProArt B550-CREATOR, AMD B550 Chipset, AM4, 2x Thunderbolt™ 4, ATX Motherboard

Robust Power Design

ProArt B550-Creator provides robust power delivery to handle the full power of latest Ryzen processors and improve overall system stability.

  • AM4 socket: Ready for AMD Ryzen™ 5000 Series / 4000 G-Series / 3000 Series desktop processors
  • Powerful I/O: Dual Thunderbolt 4 Type-C ports, dual 2.5G onboard Ethernet, USB 3.2 Gen 2 plus HDMI™ 2.1 and DisplayPort™ 1.2 output
  • Unthrottled Performance: PCI 4.0-ready, 12+2 power stages with high-quality alloy chokes and durable capacitors
  • Advanced Security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
  • ProArt Gives You More: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
  • Trusted Stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability
CPU AMD AM4 Socket for AMD Ryzen™ 5000 Series / 4000 G-Series / 3000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset AMD B550 Chipset
Memory AMD Ryzen™ 5000 Series / 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4866(OC) / 4600(OC) / 4400(OC) /
4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) /
3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 3000 /
2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory*
AMD Ryzen™ 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(OC) / 4800(OC) / 4600(OC) /
4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) /
3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 /
2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory OptiMem II
Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU.
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics 1 x HDMI™ 2.1(4K@60HZ)
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs*
* Output at TBT4_E1 and TBT4_E2 (the USB Type-C® ports right under the ethernet ports) each requires a USB-C® to DisplayPort adapter cable.
Graphics specifications may vary between CPU types.
** VGA resolution support depends on processors’ or graphic cards’ resolution. For more details about the video input and output settings please refer to the user manual.
Expansion Slots AMD Ryzen™ 5000 Series / 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)*
AMD Ryzen™ 4000 G-Series Processors
2 x PCIe 3.0 x16 (x16 or dual x8)*
AMD B550 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)** 2 x PCIe 3.0 x1 slots***
* Supports PCIe bandwidth bifurcation for RAID on CPU function.
** PCIe 3.0 x4 will be switched from Thunderbolt™ 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 4 will have no output.
*** PCIEX1_1 and PCIEX1_2 share bandwidth with M.2_2, which runs at PCIe
3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will.
Multi-GPU support Supports AMD 3-Way/2-Way CrossFireX™ Technology
Storage AMD Ryzen™ 4000 G-Series Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports Supports RAID 0, 1, 10
Ethernet 2 x Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
USB Rear USB (Total 8 ports)
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features:
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 7.1-Channel audio.

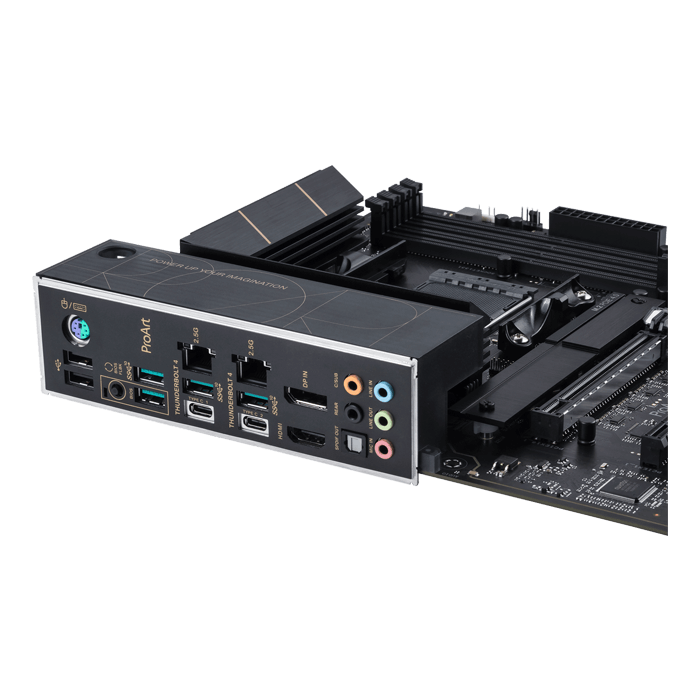

Back Panel I/O Ports 2 x Thunderbolt™ 4 USB Type-C® port(s) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A) 1 x DisplayPort (Input only)
1 x HDMI™ port
2 x Intel® I225-V 2.5Gb Ethernet ports 5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
Internal I/O connectors Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related
2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s)
1 x Clear CMOS header 1 x COM Port header
1 x Front Panel Audio header (AAFP) 1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header 1 x Thermal Sensor header
Special Features Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with Dr. MOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Latch
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Box Headers
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
Software Features ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation AI Suite 3
- 5-Way Optimization by Dual Intelligent Processors 5 TPU
EPU
DIGI+ VRM
Fan Xpert 4 Turbo app
- EZ update ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE) ProArt Creator Hub
AI Charger DAEMON Tools
Norton Anti-virus software (Free Trial version) WinRAR
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows® 10 - 64 bit
Form Factor ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
