ProArt Display PA147CDV, Touch, 14" IPS, 1920 x 550 (FHD), 5 ms, 60Hz, Portable Monitor

  • SKU: 15277385
  • Manufacturer: ASUS
  • MPN: PA147CDV
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
ProArt Display PA147CDV, Touch, 14" IPS, 1920 x 550 (FHD), 5 ms, 60Hz, Portable Monitor

ASUS ProArt Display PA147CDV. ProArt Display PA147CDV is a 14-inch creative tool? with a 32:9 aspect ratio. Built to empower creators and streamline creative workflows inside the studio or out on location, it features the intuitive ASUS Dial, customizable Control Panel, 10-point multitouch controls, and Microsoft Pen Protocol 2.0 (MPP 2.0) support. PA147CDV is Calman Verified and factory calibrated to Delta E < 2, and it covers 100% of sRGB and Rec. 709 color spaces for exceptional color. Aesthetically, PA147CDV looks the part, too – winning the 2021 Good Design and 2021 Computex d&i Gold awards.

  • 14-inch, 32:9 Full HD (1920 x 550) IPS panel with 10-point multitouch and Microsoft Pen Protocol 2.0 support
  • Calman Verified and factory calibrated to Delta E < 2 for exceptional color accuracy, with 100% sRGB and 100% Rec. 709 coverage
  • ASUS Dial and Control Panel provide shortcuts in supported Adobe creative software

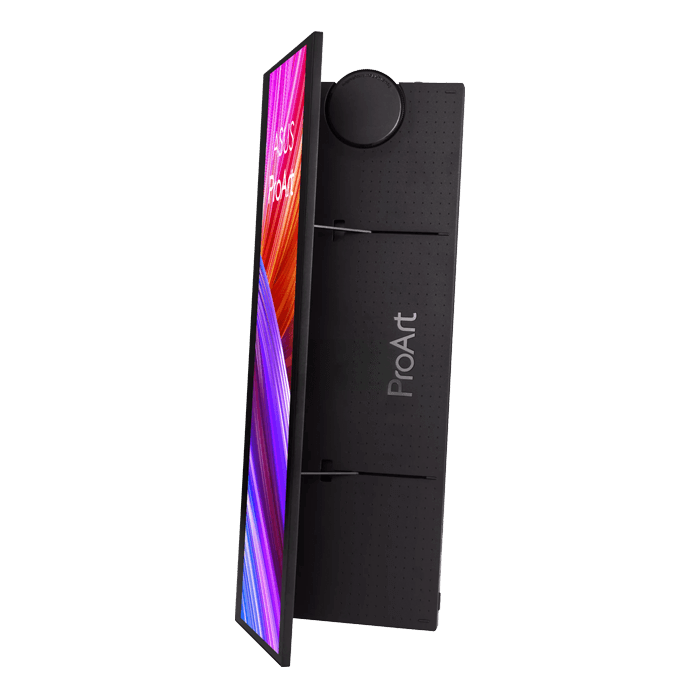

  • Patented mechanical kickstand design folds out smoothly and props the display up in portrait or landscape orientation to fit different creator’s scenario
  • Includes one standard HDMI® and two USB Type-C® (DP Alt mode) ports for variety devices connection
  • ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience
Model ProArt Display PA147CDV
Display Panel Size (inch) : 14
Pixels Per Inch (PPI) : 143
Aspect Ratio : 32:9
Display Viewing Area (H x V) : 344.22 x 98.60 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x 550
Color Space (sRGB) : 100%
Brightness (Typ.) : 400cd/m2
Contrast Ratio (Typ.) : 1200:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Touch : Yes (PCAP Touch)
Protection Glass : Yes
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)
Video Feature ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 709
ProArt Preset : Scenery
ProArt Preset : Reading
ProArt Preset : Darkroom
ProArt Preset : User mode1
ProArt Preset : User mode2
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : ΔE<2
ProArt Palette : Yes
QuickFit : Yes
HDCP : Yes, 1.4
ProArt Chroma Tune : Yes
Low Blue Light : Yes
Audio Feature Speaker : Yes(1Wx2)
I/O Ports USB-C x 2 (DP Alt Mode)
HDMI(v1.4) x 1
Signal Frequency Digital Signal Frequency : HDMI: 24 KHz~83 KHz (H) / 23Hz~60Hz (V)
USB-C: 24 KHz~83 KHz (H) / 23Hz~60Hz (V)
Power Consumption Power Consumption : ≤10W
Power Saving Mode : <0.5W
Voltage : 100-240V, 50/60Hz
Mechanical Design Tilt : Yes (+25° ~ 70°)
Pivot : Yes (0° ~ 90° Clockwise)
Dimensions (Esti.) Phys. Dimension with Stand (W x H x D) : 357.23 x 127.66 x 20.71 mm
Box Dimension (W x H x D) : 440 x 290 x 92 mm
Weight (Esti.) Net Weight with Stand : 0.950 Kg
Gross Weight : 2.3 Kg
Accessories (vary by regions) Color pre-calibration report
HDMI cable
Power adapter
ProArt Sleeve
Quick start guide
USB Type-C to A adapter
USB-C cable
USB-C to A cable
Warranty Card
Certificate TÜV Flicker-free
TÜV Low Blue Light
Calman Verified
