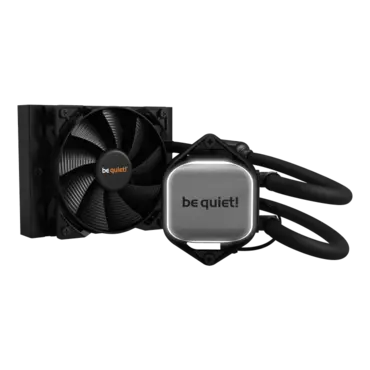

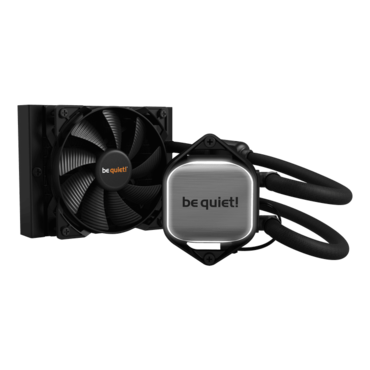

Pure Loop, 120mm Radiator, Liquid Cooling System
Quantity:
- SKU: 13629268
- Manufacturer: be quiet!
- MPN: BW005
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$100.42
As low as $8.37/ Month*
- High cooling performance
- Doubly decoupled pump for quiet operation and minimal vibration
- Pure Wings 2 120mm PWM fan combines quiet operation with high air pressure
- White LED illumination, all-black design and aluminum-style for unmistakable and stylish look
- Easy-to-access refill port and included coolant bottle guarantee a long lifespan
- Flexible sleeved tubes and a convenient mounting ensure easy handling
- Nickel-coated coldplate allows optimum use of liquid metal thermal compound
- 3-year manufacturer’s warranty
| General Data | |
| Model | Pure Loop 120mm |
| Dimensions radiator, incl. fan (H x W x D), (mm) | 157 x 120 x 52 |
| Total weight (kg) | 0.78 |
| Socket compatibility | Intel 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) square ILM; AMD: AM4 / AM3(+) |
| Fan model, number | 1x Pure Wings 2 120mm PWM high-speed |
| Noise level (dB(A)) @ 25 % / 50% /100% rpm | 18.9 / 23.4 / 36.1 |
| Pump speed (rpm) | 5500 |
| Pump connector | 3-pin |
| Tube length (mm) | 400 |
| Refill port | ✓ |
| Radiator specifications | |
| Dimensions (H x W x D), (mm) | 157 x 120 x 27 |
| Radiator material / finish | Aluminum / Black spray painted |
| Base material / finish | Copper / Nickel plated |
| Fan specifications | |
| Fan dimensions (mm) | 120 x 120 x 25 |
| Speed @ 100% PWM (rpm) | 2000 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.30 |
| Input power (W) | 3.6 |
| Connector | 4-pin PWM |
| Cable length (mm) | 420 |
| Lifespan (h / 25°C) | 80,000 |
| Accessories | |
| Thermal grease | Included |
| Mounting set | Intel & AMD |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
| Y-cable for fans | - |
| Y-SATA Power adaptor for pump & light | ✓ |
| Bottle of coolant (ml) | ✓ / 100 |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics data, RRP | |
| Article number | BW005 |
| EAN code | 4260052187883 |
| Dimensions, package (L x W x H), (mm) | 321 x 140 x 240 |
| Gross weight, package (kg) | 1.66 |
| Pieces per packaging unit | 8 |
| Dimensions, shipping box (L x W x H), (mm) | 658 x 296 x 508 |
| Gross weight, shipping box (kg) | 14.7 |
