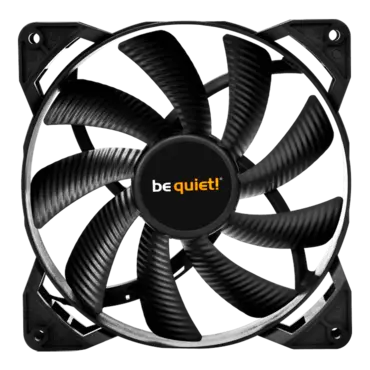

Pure Wings 2 140mm high-speed, 1600 RPM, 94.2 CFM, 36.3 dBA, Cooling Fan

Quantity:
  • SKU: 14930023
  • Manufacturer: be quiet!
  • MPN: BL082
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$14.94
Quantity:
Pure Wings 2 140mm high-speed, 1600 RPM, 94.2 CFM, 36.3 dBA, Cooling Fan

The Pure Wings 2 140mm high-speed fan brings exceptional be quiet! cooling to entry level computing. The extremely high air pressure makes it a perfect choice for powerful water- and air-cooled systems.

  • 9 airflow-optimized fan blades that reduce noise-generating turbulence
  • Long life rifle bearing gives an operating lifetime of 80,000 hours
  • A fan speed of 1,600 rpm for extremely high air pressure
  • Even at maximum speed, operates at only 36.3 dB(A)
  • Product conception, design and quality control in Germany
  • 3-year manufacturer’s warranty
General data
Model Pure Wings 2 140mm high-speed
Dimensions (mm) 140
Fan speed @ 100% PWM / 12V (rpm) 1600
Air Flow @ 100% PWM / 12V (CFM / m3/h) 94.2 / 160
Air Pressure @ 100% PWM / 12V (mm H2O) 1.82
Lighting -
Noise level @ 100% PWM / 12V (dB(A)) 36.3
Color option Black
Mechanical specifications
Dimensions (L x W x H), (mm) 140 x 140 x 25
Bearing technology Rifle
Motor technology 4-pole fan motor
Weight incl. fixed cables (kg) 0.158
Push pin fixing -
Screw fixing
Cables / Connectors
Y-cable for lighting signal -
Lighting connector -
Connector 3-pin
Cable length (mm) 460
Cable sleeve -
Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h) 94.2 / 160
Air Pressure @ 100% PWM / 12V (mm H2O) 1.82
Noise level @ 100% PWM / 12V (dB(A)) 36.3
Lifespan (h / 25°C) 80,000
Electrical specifications
Rated Voltage DC (V) 12
Operating Voltage DC (V) 5 - 12
Current consumption (A) 0.31
Safety current (A) 0.5
Input power (W) 6
Rated Current LED (A) -
Accessories
3-pin to 4-pin 12V-connector -
12V to 7V adapter -
12V to 5V adapter -
Screws 4
Push pins -
Silica gel washer -
Others -
Safety certification
Approvals CE / TÜV / UL
Service
Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR
Logistics data, RRP
Article number BL082
EAN code 4260052186848
Dimensions, package (L x W x H), (mm) 175 x 140 x 28
Gross weight, package (kg) 0.194
