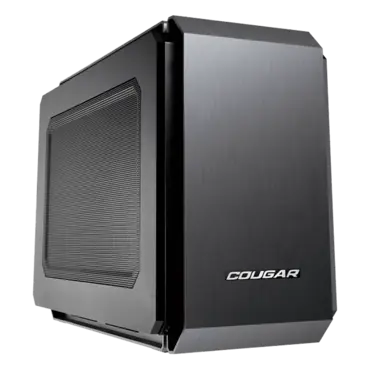

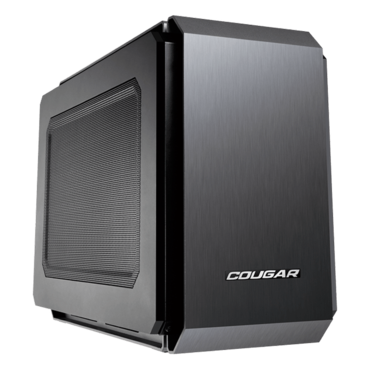

The QBX’s elegant, hairline surface front panel is the face of an ultra-compact case with one of the most stylish designs a pc case has ever seen. With the ability to house a full powered gaming computer with the latest technology, it allows the user to install up to 7 fans , thus providing the absolute best cooling on the market for a case of its kind.
Case Type | Mini-ITX Case | |
---|---|---|
Motherboard Type | Mini-ITX | |
Dimension (WxHxD) | 7.01 x 11.46 x 15.12 (inch) 178 x 291 x 384 (mm) |
|
Optical Disk Drive (ODD) Type | Supports ONLY Slot Loading Slim ODD | |
3.5" Internal Drive Bay (HDD) | 1 | |
2.5" Drive Bay (HDD/SSD) | 4 | |
Expansion Slots (For example for Graphics Card) |
2 | |
I/O Panel | 2 x USB3.0 / HD audio | |
Cooling System Max. Supported Installation: 7 Fans |
Front | 80mm Fan x 1 (optional) |
Top | 120mm Fans x 2 (optional) | |
Rear | 90mm Fan x 1 (pre-installed) | |
Bottom | 120mm Fans x 2 (optional) | |
Left Side | 120mm Fan x 1 or 240mm radiator with a single 120mm fan or 120mm radiator with a 120mm fan |
|
Cable management system | Cable feedthrough on the motherboard tray for easily routing and hiding cables. | |
Fan Filter (Cleanable) | 1 x Bottom Filter (pre-installed and removable) 1 x Front Filter (included, installed by the user) |
|
Water cooling support | Left Side:240mm radiator with a single 120mm fan or Left Side:120mm radiator with a 120mm fan |
|
Max. Graphic card Length | 350mm (Support for High End Graphics Cards) | |
Max. CPU Cooler Height | 105mm | |
PSU | PS2 ATX Type (up to 140mm long) | |
Compatible PSU | supports the following COUGAR PSU series: A Series and STX Series. |
