PERFORMANCE AND USEABILITY FEATURES
Revolutionary Realtime Ray Tracing Acceleration

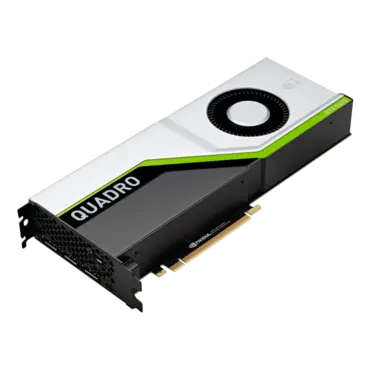

Incorporating new hardware-based ray tracing engines, Turing is the industry’s first graphics processor enabling real-time ray tracing. A single Quadro RTX 5000 board can render complex professional models with physically accurate shadows, reflections, and refractions to empower users with instant insight. Working in concert with applications leveraging APIs such as NVIDIA OptiX, Microsoft DXR and Vulcan ray tracing, systems based on Quadro RTX 5000 will power truly interactive design workflows to provide immediate feedback for unprecedented levels of productivity.
New dedicated hardware-based ray-tracing technology allows the GPU for the first time to real-time render film quality, photorealistic objects and environments with physically accurate shadows, reflections, and refractions. The real-time ray-tracing engine works with NVIDIA OptiX, Microsoft DXR, and Vulkan APIs to deliver a level of realism far beyond what is possible using traditional rendering techniques. RT cores accelerate the Bounding Volume Hierarchy (BVH) traversal and ray casting functions using low number of rays casted through a pixel.
Enhanced Tensor Cores
New mixed-precision cores purpose-built for deep learning matrix arithmetic, delivering 8x TFLOPS for training, compared to previous generation. Quadro RTX 5000 utilizes 384 Tensor Cores; each Tensor Core performs 64 floating point fused multiply-add (FMA) operations per clock, and each SM performs a total of 1024 individual floating point operations per clock. In addition to supporting FP16/FP32 matrix operations, new Tensor Cores added INT8 (2048 integer operations per clock) and experimental INT4 and INT1 (binary) precision modes for matrix operations.
Provides a compute-based geometry pipeline to speed processing and culling for geometrically complex models and scenes to improve performance by up to 2x.
Motion Adaptive Shading
Offers more granular control over how GPU horsepower is distributed (i.e. more cycles applied on the detailed areas of a scene and fewer on the less detailed areas) to increase performance and at the same image quality, or product similar image quality with a 50% reduction in the time required to generate shaded pixels.
Variable Rate Shading (VRS)
More control over pixel shading rate; efficient for effects like motion, blur, foveated shading. This capability enables shading and geometry samples to process at different rates for more efficient execution.
Texture Space Shading
Decouples shading from screen space, improving shading efficiency and reuse.
Multi-View Rendering (MVR)
Extension of Single Pass Stereo rendering multiple views in a single pass with unique view origin positions or view directions.
High Speed GDDR6 Memory
Built with Turing’s vastly optimized 16GB GDDR6 memory subsystem for the industry’s fastest graphics memory (448 GB/s peak bandwidth), Quadro RTX 5000 is the ideal platform for latency-sensitive applications handling large datasets. Quadro RTX 5000 delivers greater than 50% more memory bandwidth compared to previous generation.
Error Correcting Code (ECC) on Graphics Memory
Meet strict data integrity requirements for mission critical applications with uncompromised computing accuracy and reliability for workstations.
H.264 and HEVC Encode/Decode Engines
Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with two dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.
Ray tracing and variable rate shading enhance visual quality, while Multi-view rendering provides wider field of view, support for next-generation HMDs and displays. The RT Cores provide for accurate acoustic simulations and VirtualLink makes VR setup easier than ever with a single cable connection.
Full-Scene Antialiasing (FSAA)
Dramatically reduce visual aliasing artifacts or "jaggies" with up to 64X FSAA (128X with SLI) for unparalleled image quality and highly realistic scenes.
32K Texture and Render Processing
Texture from and render to 32K x 32K surfaces to support applications that demand the highest resolution and quality image processing.
NVIDIA Quadro Mosaic™ Technology
Transparently scale the desktop and applications across up to 8 GPUs and 32 displays from a single workstation while delivering full performance and image quality.
Support up to four 8K (7680 x 4320) monitors at 60 Hz, four 5K (5120 x 2880) displays at 60 Hz, or four 4K (3840 x 2160 or 4096 x 2160) displays at up to 120 Hz. Quadro RTX 6000 supports HDR over DisplayPort 1.4 (SMPTE 2084/2086. BT. 2020) with 4K at 60 Hz 10b/12b HEVC decode, 4K at 60 Hz 10b HEVC Encode.
NVIDIA nView Advanced Desktop Software
Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments.
NVIDIA Quadro Sync II
Synchronize the display and image output of up to 32 displays from 8 GPUs (connected through two Quadro Sync II boards) in a single system, reducing the number of systems needed to create an advanced video visualization environment.
OpenGL Quadro Buffered Stereo Support
Provides a smooth and immersive 3D Stereo experience for professional applications.
Professional 3D Stereo Synchronization
Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to a Quadro graphics card.
Ultra High Resolution Desktop Support
Get more Mosaic topology choices using high-resolution display devices with a 32K max desktop size.
VirtualLink is an industry standard alternate mode of USB Type-C that delivers 4 display lanes of HBR3 DisplayPort, USB 3.1 Gen2 SuperSpeed data, and up to 27 W of power to next generation VR HMDs (Head Mounted Displays).
Turing Optimized Software
Deep learning frameworks such as Caffe2, MXNet, CNTK, TensorFlow, and others deliver dramatically faster training times and higher multi-node training performance. GPU accelerated libraries such as cuDNN, cuBLAS, and TensorRT delivers higher performance for both deep learning inference and High-Performance Computing (HPC) applications.
NVIDIA CUDA® Parallel Computing Platform
Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.
A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.
NVIDIA GPUDirect for Video
GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.
NVIDIA Enterprise-Management Tools
Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.
MULTI-GPU TECHNOLOGY SUPPORT
NVIDIA NVLink High Speed Interface
Connect a pair of Quadro RTX 5000 boards with NVLink to essentially double the amount of GPU memory available, double CUDA, RT and Tensor Core counts, and scale application performance by enabling GPU-to-GPU data transfers at rates up to 50 GB/Sec.
3D GRAPHICS ARCHITECTURE
NVIDIA CUDA PARALLEL PROCESSING ARCHITECTURE
ADVANCED DISPLAY FEATURES
DISPLAYPORT AND HDMI DIGITAL AUDIO
|NVIDIA RT Cores||48|
|NVIDIA Tensor Cores||384|
|GPU Memory||16 GB GDDR6 with ECC|
|Rays Cast||8 Giga Rays/Sec|
|Peak Double Precision FP32 Performance||11.2 TFLOPS|
|Peak Half Precision FP16 Performance||22.3 TFLOPS|
|Peak Half Precision INT8 Performance||18.4 TOPS|
|Deep Learning TFLOPS||89.2 Tensor TFLOPS|
|NVLink Bandwidth||50 GB/Sec|
|Memory Bandwidth||870 GB/s|
|System Interface||PCI Express 3.0 x16|
|Maximum Power Consumption||265 W (add Quadro Power Guidelines link)|
|Energy Star Enabling||Yes|
|Thermal Solution||Ultra-quiet active fansink|
|Form Factor||4.4” H x 10.5” L, Dual Slot|
|Display Connectors||DisplayPort 1.4 (4) + VirtualLink|
|DisplayPort with Audio||Yes|
|DVI-D Single-Link Connector||Yes, via included adapter|
|HDMI Support||Yes, via included adapter|
|Number of Displays Supported||4|
|Maximum DP 1.4 Resolution||HDR 7680 x 4320 at 60 Hz (add Quadro and NVS Display Resolution Support link)|
|5K Display Support||HDR 5120 x 2880 at 60 Hz|
|4K Display Support||HDR 4096 x 2160 or 3840 x 2160 at 120 Hz|
|Maximum DVI-D DL Resolution||2560 x 1600 at 60 Hz via 3rd party adapter|
|Maximum DVI-D SL Resolution||1920 x 1200 at 60 Hz via included adapter|
|Professional 3D Support||Via optional Stereo Connector Bracket|
|Quadro Sync II Compatible||Yes (Frame Lock and Genlock)|
|NVIDIA GPU Direct Compatible||Yes|
|Graph APIs||Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0|
|Compute APIs||CUDA, DirectCompute, OpenCL|
