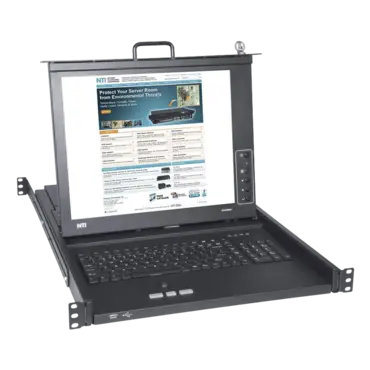

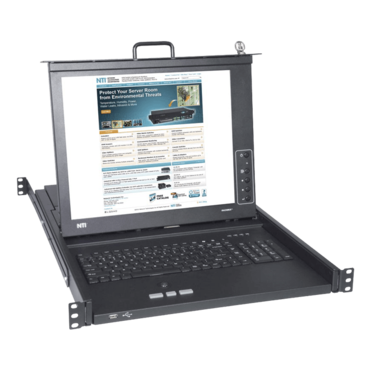

RACKMUX® Rackmount DVI SUN USB KVM Drawer, 17" LCD, Trackball Mouse, Numeric Keypad

  • SKU: 3566766
  • MPN: rackmux-ds17-nt
Starting At
17 inch DVI SUN USB KVM Drawer with Trackball Mouse & Numeric Keypad
  • 17 inch Active Matrix LCD flat panel DVI monitor
  • Supports resolutions to 1152x900
  • 17-key numeric keypad and trackball mouse
  • Rackmount DVI SUN USB KVM Drawer

    The RACKMUX® SUN USB KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard and 3-button trackball mouse or touchpad in a space-saving 1RU industrial strength drawer. It is available with a forward-folding 17" Active Matrix LCD flat panel DVI monitor.

    Features & Applications:

    • Forward-folding 17" Active Matrix LCD flat panel DVI monitor.
    • Supports SUN-compatible 1152x900 resolution.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
    • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
    • Compact, heavy-duty tactile keyboard.
      • Available with 17-key numeric keypad or large wrist-rest.
    • Drawer locks into place when open to prevent it from sliding in and out of the rack.
    • Available with optional mounting bracket for two-post style telco rack.
    • Rugged steel construction with durable powder coat finish.
    • LCD auto-shutoff in closed position.
    • Internal cable arm provides proper cable management for sliding the drawer open and closed.
    • Equipped with On Screen Display (OSD).
    • Front panel security lock.
    • Front panel USB port to connect an external USB device, such as a flash drive.
    • Available with Sunlight Readable monitor – call an NTI Product Consultant for more information.


    Host Interface
    • Compatible with USB-enabled SUN, Windows, Linux, Apple, IBM, and HP computers with single link DVI-D video.
    • One female DVI-I and one female USB Type B connectors.
    • Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
    • Forward-folding 17" Active Matrix LCD flat panel DVI monitor.
    • 1280x1024 video resolution.
      • Supports SUN-compatible 1152x900 resolution.
    • Tilt: up to 120°.
    • Frequency:
      • Horzontal: 31 to 80 KHz
      • Vertical: 55 to 76 Hz.
    • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
    • 300 nits brightness and 500:1 contrast ratio typical.
    • Supports DDC1 and DDC2B protocols.
    • Keyboard available in multiple languages: English(US), English(UK), German, Italian, French, and Spanish.
      • RACKMUX-DS17-T: 97-key (US) or 98-key (UK, German, Italian, French, Spanish), SUN-compatible keyboard with wrist-pad.
      • RACKMUX-DS17-NT: 114-key (US) or 115-key (UK, German), SUN compatible keyboard with numeric keypad.
    • Supports SUN keys including STOP, CUT, PASTE, COMPOSE, COPY, HELP, OPEN, UNDO, and PROPS.
    • Three button trackball mouse.
    • Front panel USB 1.1 port to connect external USB devices.
      • Female USB Type A connector.
    • RACKMUX-DS17-T: 40,530 hrs.
    • 6.5-foot single link DVI-D male to male cable included.
    • 6-foot USB Type A male to USB Type B male cable included.
    • 6-foot power supply cable included.
    • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
    • Power Consumption: 30W
    • Maximum Inrush Current: 30A
    • Operating temperature: 32°F to 104°F (0°C to 40°C).
    • Storage temperature: -4°F to 140°F (-20°C to 60°C).
    • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
    • WxDxH (Inches): 19x23.9x1.75.
    • Weight: 26 lbs.
    • Drawer is adjustable to various rack depths from 24" deep to 39" deep.
    • Drawer locks into place when open to prevent it from sliding in and out of the rack.
    • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
    Regulatory Approvals
    • CE, RoHS
    • Two years
