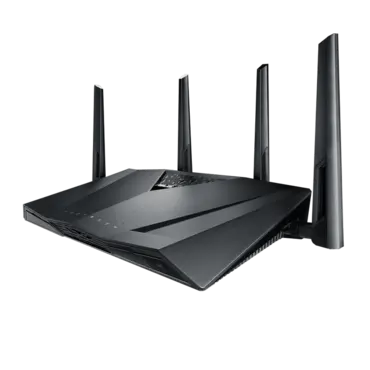

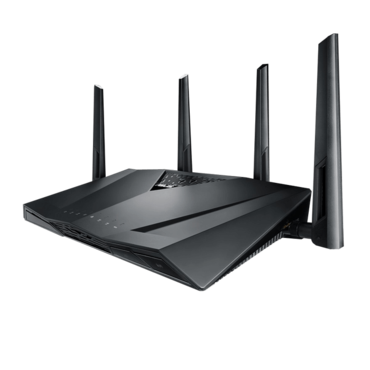

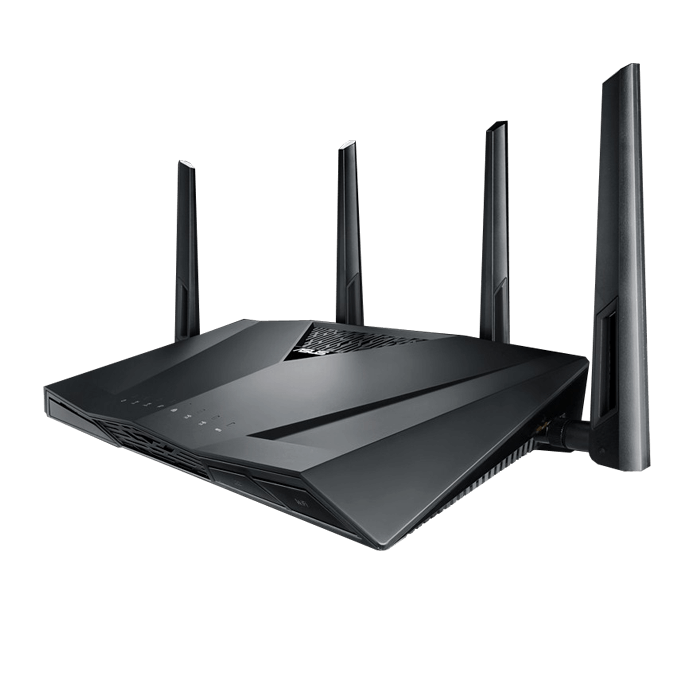

RT-AC3100, IEEE 802.11ac, Dual-Band 2.4 / 5GHz, 1000 / 2167 Mbps, 4xRJ45, Retail Wireless Router
Quantity:
- SKU: 10061997
- Manufacturer: ASUS
- MPN: RT-AC3100
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$259.88
RT-AC3100, IEEE 802.11ac, Dual-Band 2.4 / 5GHz, 1000 / 2167 Mbps, 4xRJ45, Retail Wireless Router
Dual-band wireless-AC3100 gigabit router
- Ultra-fast 802.11ac Wi-Fi router with a combined dual-band data rate of 3167 Mbps for low latency online gaming, smooth 4K streaming and extremely fast file-sharing
- Broadcom® NitroQAMTM technology boosts 5 GHz data rates up to 2167 Mbps and 2.4 GHz up to 1000 Mbps
- 4x4 antenna design with AiRadar universal beamforming for wireless signal coverage exceeding 500 m² (around 5400 square feet)
- 1.4 GHz dual-core processor improves USB and WAN/LAN speed
- Link aggregation supports close to 2 Gbps wired transmission for more devices to enjoy faster access speed
- Up to 4X capacity Wi-Fi with revolutionary MU-MIMO technology
- AiProtection for total security and privacy
- Parental Controls let you manage your family’s web activity and ensure a safe environment for younger users
-
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
-
Product Segment
AC3100 ultimate AC performance : 1000+2167 Mbps
-
Coverage
Very large homes
-
Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 600 Mbps
802.11ac : up to 1734 Mbps
1024QAM (2.4GHz) : up to 1000 Mbps
1024QAM (5GHz) : up to2167 Mbps -
Antenna
External antenna x 4
-
Transmit/Receive
MIMO technology
2.4 GHz 4 x 4
5 GHz 4 x 4 -
Processor
1.4 GHz dual-core processor
-
Memory
128 MB Flash
512 MB RAM -
Wi-Fi Technology
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth -
Operating Frequency
2.4 GHz / 5 GHz
-
Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
-
Firewall & Access Control
Access control:Parental control, Network service filter, URL filter, Port filter
-
Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, SNMP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, System Event Log
-
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
-
Utilities
Router setup wizard; Firmware restoration; Device discovary; printer setup utility
-

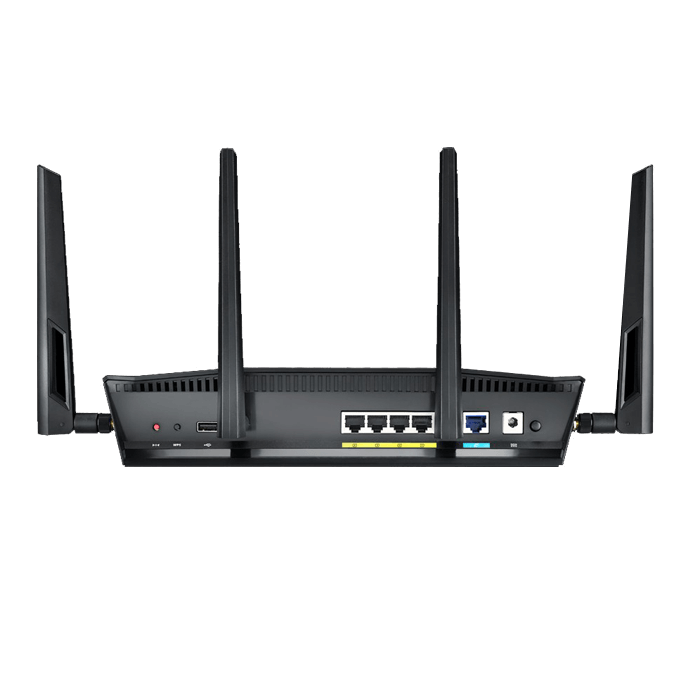

Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 2.0 x 1
USB 3.0 x 1 -
Button
WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button
-
Features
Link Aggregation
MU-MIMO
Airtime Fairness
Smart Connect
Traffic Analyzer
Adaptive QoS
AiProtection
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist -
LED Indicator
Power x 1
Wi-Fi x 2
WAN x 1
USB x 2
WPS x 1
LAN x 1 -
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current -
Dimensions
11.8 x 7.4 x 3.3 ~ inch (WxDxH)
-
Weight
910 g
-
Package Content
RT-AC3100 Gigabit Router
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
Support CD (User manual & Utility software) -
Router Special Features
3G/4G data sharing, AiCloud, Parental Control
-
Operation mode
Wireless router mode
Access point mode
Media bridge mode
