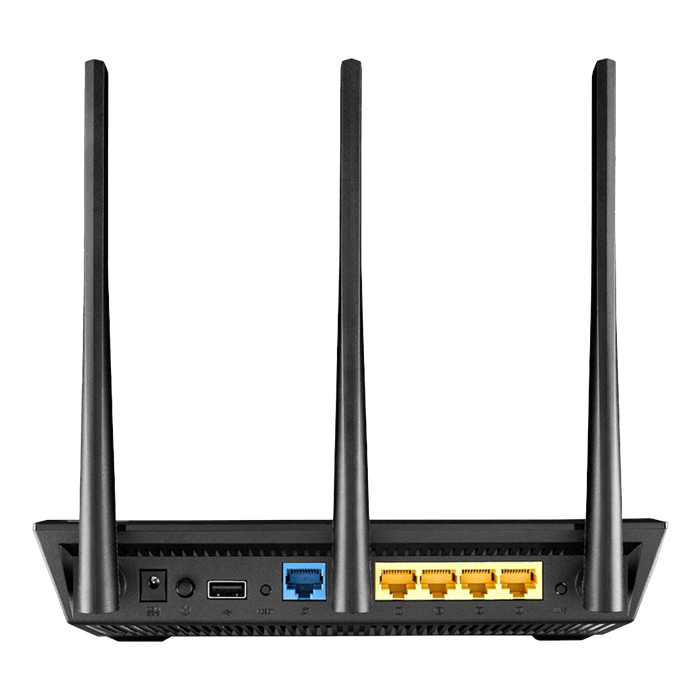

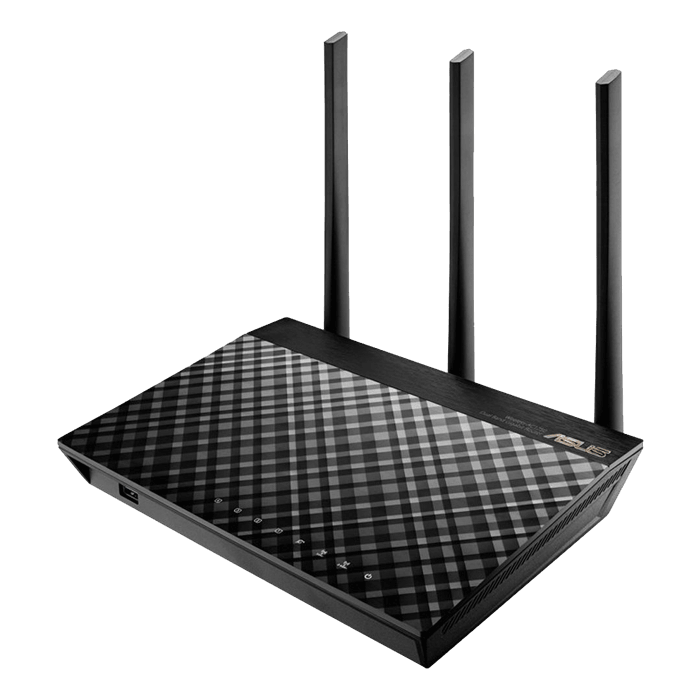

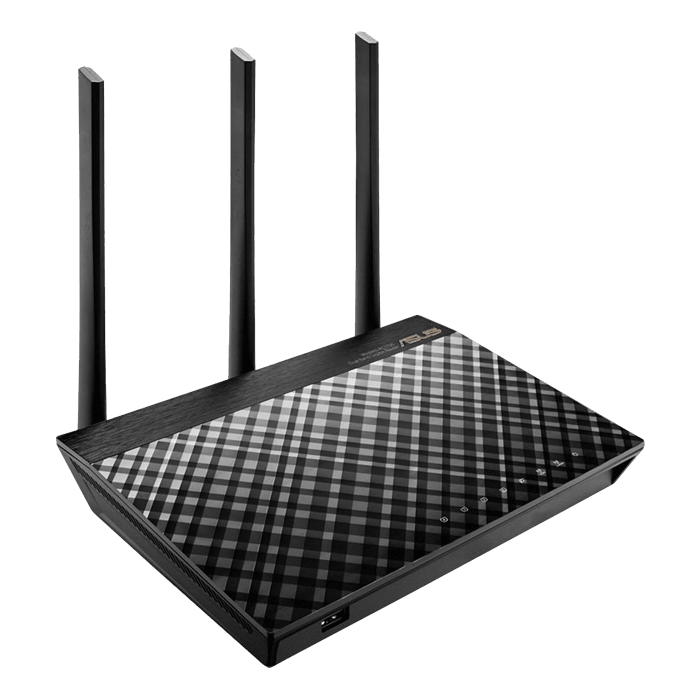

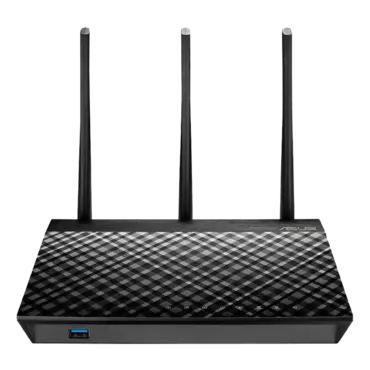

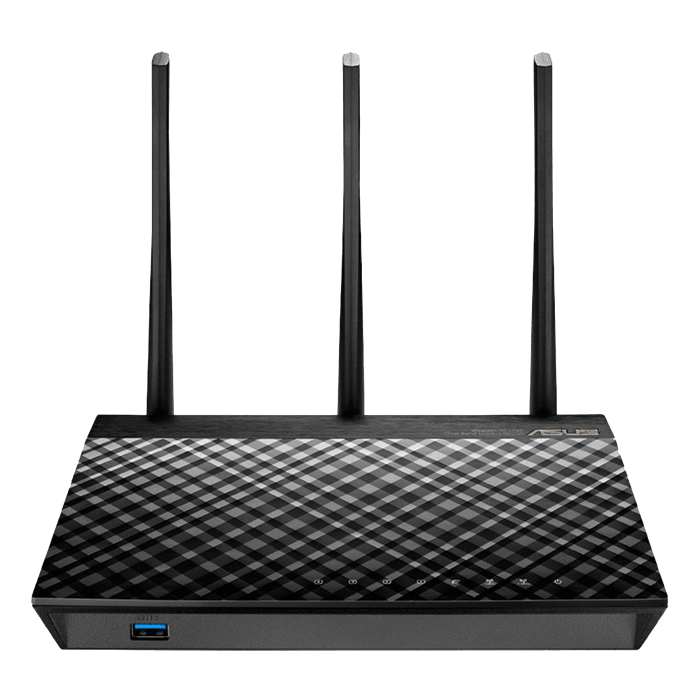

RT-AC66U, IEEE 802.11ac, Dual-Band 2.4 / 5GHz, 450 / 1300 Mbps, 4xRJ45, 2x USB, Retail Wireless Router
Quantity:
- SKU: 6961325
- Manufacturer: ASUS
- MPN: RT-AC66U
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$128.16
- 5th generation 802.11ac chipset gives you concurrent dual-band 2.4GHz/5GHz for up to super-fast 1.75Gbps
- ASUS AiCloud service: Access, stream, share, sync – all on the go with unlimited storage expansion!
- Gigabit Ethernet ports for fast and reliable internet performance
- AiRadar optimizes wireless coverage with detachable high-powered antennas
- Enjoy the ASUSWRT dashboard UI for 3 steps easy setup, signal monitoring, and network application control
- Download Master for wireless data storage and access to your router-connected USB storage devices
- File sharing, printer sharing, and 3G sharing via two multi-functional built-in USB ports
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3u, IPv4, IPv6 |
| Product Segment | AC1750 superior AC performance : 450+1300 Mbps |
| Coverage | Large homes |
| Data Rate | 802.11n : up to 450 Mbps
802.11ac : up to 1300 Mbps |
| Antenna | Detachable antenna x 3 |
| Transmit/Receive | MIMO technology
2.4 GHz 3 x 3 5 GHz 3 x 3 |
| Memory | 128 MB Flash
256 MB RAM |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise |
| Firewall & Access Control | Firewall:SPI intrusion detection,DoS protection
Access control:Parental control, Network service filter, URL filter, Port filter |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, Universal Repeater, System Event Log |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Dual Link support Multicast Proxy support Multicast Rate Setting support |
| Ports | RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, Support Ethernet and 802.3 with max. bit rate 10/100/1000 Mbps and auto cross-over function(MDI-X)
USB 2.0 x 2 |
| Button | WPS Button, Reset Button, Power Button |
| Features | Airtime Fairness
SmartQoS - WMM - User definable rules for IP/MAC/Port - Upload and download bandwidth management - ACK/SYN/FIN/RST/ICMP with highest priority Parental Control Guest Network : 2.4 GHz x 3, 5 GHz x 3 VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server VPN client : PPTP client, L2TP client, OpenVPN client Enhanced media server (AiPlayer app compatible) - Image : Jpeg - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov AiCloud personal cloud service 3G/4G data sharing Printer Server - Multifunctional printer support (Windows only) - LPR protocol support Download Master - Support bt, nzb, http, ed2k - Support encryption, DHT, PEX and magnet link - Upload and download bandwidth control - Download scheduling AiDisk file server - Samba and FTP server with account management Dual WAN IPTV support |
| LED Indicator | Power x 1
LAN x 4 WAN x 1 Wi-Fi x 2 USB x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.58 A current |
| OS Support | Windows® 10
Windows® 8.1 Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® Vista , 32bit/64bit Windows® XP , 32bit/64bit Mac OS X Linux |
| Dimensions | 207 x 148.8 x 35.5 ~ mm (WxDxH) |
| Weight | 450 g |
| Package Content | RT-AC66U Dual Band 3x3 802.11AC Gigibit Router
Router stand RJ-45 cable Support CD (User manual and utility software) Power adapter Quick start guide Warranty card |
| Operation mode | Wireless router mode
Range extender mode Access point mode Media bridge mode |
