Radeon™ Pro W6800, 32GB GDDR6, Graphics Card

  • SKU: 14519283
  • Manufacturer: AMD
  • MPN: 100-506157
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At

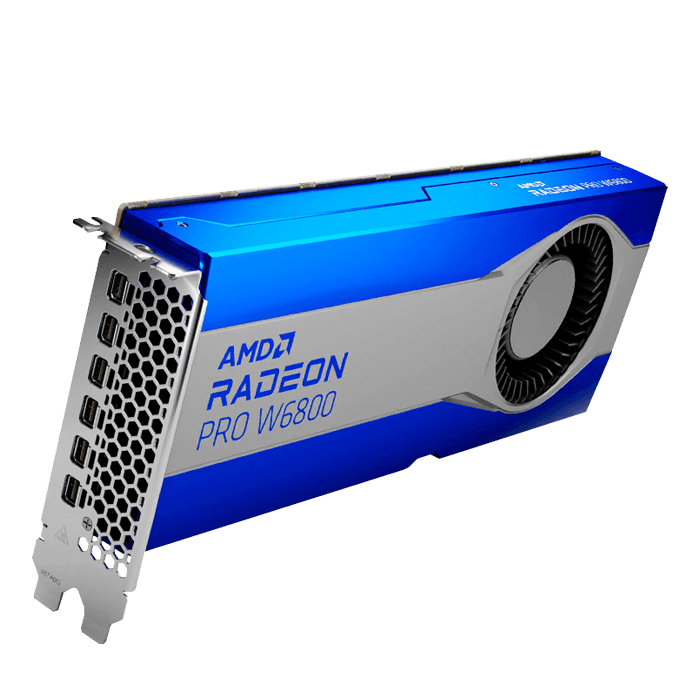

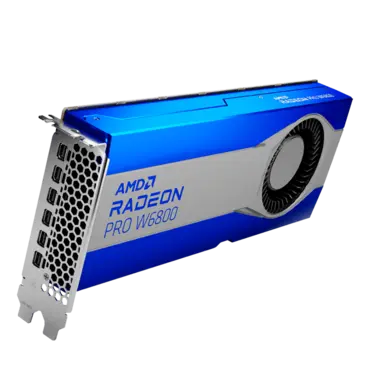

Radeon™ Pro W6800, 32GB GDDR6, Graphics Card

AMD Radeon™ Pro W6800 (100-506157). Discover Your Software’s Full Potential. Introducing the Incredibly Rapid Radeon™ PRO W6800. Delivering a Gigantic 32 GB of High-Performance ECC Memory, Hardware Raytracing, Optimizations for 6 Ultra-HD HDR Displays, Accelerated Software Multi-Tasking, PCIe® 4.0 for Advanced Data Transfer Speeds, and Certifications for Many Popular Applications. All as Standard with AMD Radeon™ PRO W6800 Graphics.

GPU Specifications
GPU Architecture AMD RDNA™ 2
Hardware Raytracing Yes
Lithography TSMC 7nm FinFET
Ray Accelerators 60
Stream Processors 3840
Compute Units 60
Peak Half Precision (FP16) Performance 35.66 TFLOPs
Peak Single Precision (FP32) Performance 17.83 TFLOPs
Peak Double Precision (FP64) Performance 1.11 TFLOPs
Transistor Count 26.8 Billion
OS Support Windows 10 - 64-Bit Edition
Linux x86_64
External Power Connectors 1x PCIe® 6-pin, + 1x PCIe® 8-pin
Total Board Power (TBP) 250W Peak
PSU Recommendation 650W Minimum
GPU Memory
Dedicated Memory Size 32 GB
Dedicated Memory Type GDDR6
Infinity Cache 128 MB
Memory Interface 256-bit
Peak Memory Bandwidth Up to 512 GB/s
Memory ECC Support Yes
Board Specifications
Form Factor PCIe® Add-in Card
Bus Type PCIe® 4.0 x16
Cooling Active
Display Outputs
DisplayPort™ 6x Mini-DisplayPort™ 1.4 with DSC
Display Configurations 6x @ 5120x2880px (5K)
2x @ 7680x4320px (8K)
HDR Support Yes
8K Support Yes
Board Height Full Height
Board Length 10.5" (267 mm)
Board Width Double Slot
Additional Features
Supported Rendering Formats 4K H264 Encode and Decode
AV1 Decode
H265/HEVC Encode and Decode
Supported Technologies AMD Remote Workstation
AMD Radeon™ Media Engine
AMD Radeon™ PRO Software
AMD Radeon™ VR Ready Creator
AMD Eyefinity Technology (Professionals)
AMD Radeon™ ProRender
3D Stereo Support Yes
Software API Support
DirectX® 12.0 (feature level 12_1)
OpenGL® 4.6
OpenCL™ 2.1
Product Basics
Product Family AMD Radeon™ Pro
Product Line AMD Radeon™ PRO W6000 Series
Platform Desktop
Launch Date 06/08/2021
