True Custom Computer Builder specializing in Assembly of Gaming Computers, Laptops, Workstations, Servers
Radeon™ RX 6800 Phantom Gaming D 16G OC, 1850 - 2190MHz, 16GB, GDDR6, Graphics Card
Quantity:
- SKU: 13731559
- Manufacturer: ASROCK
- MPN: RX6800 PGD 16GO
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$557.73

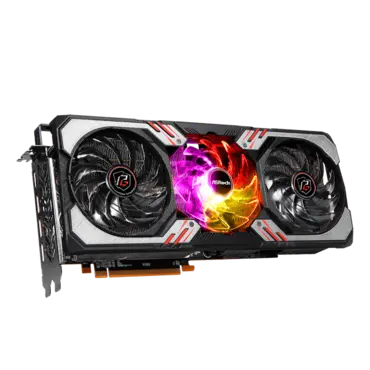

Radeon™ RX 6800 Phantom Gaming D 16G OC, 1850 - 2190MHz, 16GB, GDDR6, Graphics Card
ASRock Radeon™ RX 6800 Phantom Gaming D 16G OC (RX6800 PGD 16GO). Polychrome SYNC. With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
-
Clock: GPU / Memory
Boost Clock: Up to 2190 MHz / 16 Gbps
Game Clock: 1980 MHz / 16 Gbps
Base Clock: 1850 MHz / 16 Gbps -
Key Specifications
7nm AMD Radeon™ RX 6800 Graphics
16GB 256-bit GDDR6
AMD RDNA™ 2 Architecture
Hardware Raytracing1
PCI® Express 4.0 Support
2 x 8-pin Power Connectors
3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR -
Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card
| Graphics Engine | - AMD Radeon™ RX 6800 Graphics |
| Bus Standard | - PCI® Express 4.0 x16 |
| DirectX | - 12 Ultimate |
| OpenGL | - 4.6 |
| Memory | - GDDR6 16GB |
| Engine Clock |
- Boost Clock: Up to 2190 MHz - Game Clock: 1980 MHz - Base Clock: 1850 MHz |
| Stream Processors | - 3840 |
| Compute Units | - 60 |
| Memory Clock | - 16 Gbps |
| Memory Bus | - 256-bit |
| Resolution | - Digital Max Resolution: 7680 x 4320 |
| Interface |
- 1 x HDMI™ 2.1 VRR - 3 x DisplayPort™ 1.4 with DSC |
| HDCP | - Yes |
| Multi-view | - 4 |
| Recommended PSU | - 700W |
| Power Connector | - 2 x 8-pin |
| Accessories | - 1 x Quick Installation Guide |
| Dimensions | - 305 x 131 x 55 mm, 2.75-slot |
| Net Weight | - 1306 g |
