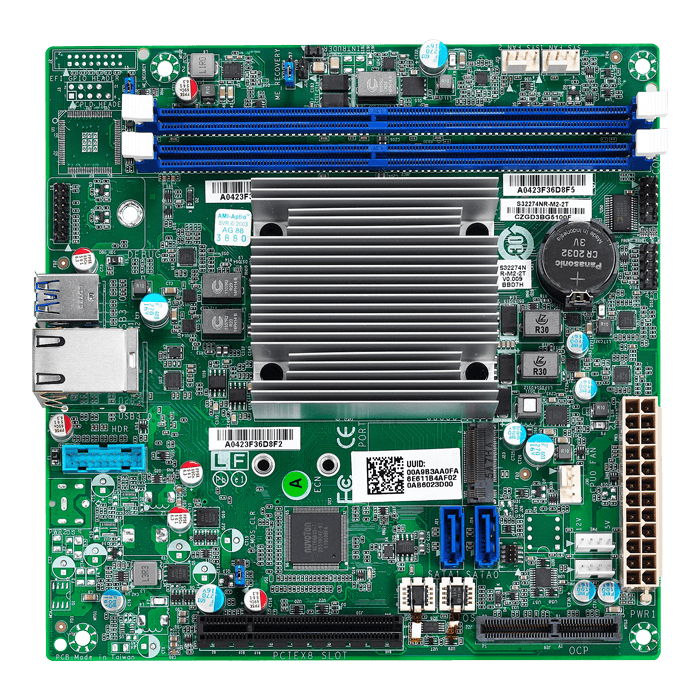

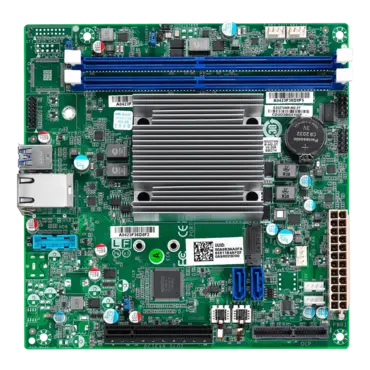

S3227 (S32272NR-C338), Atom SoC C3338, DDR4-1866 32GB RDIMM / 1, M.2, GbLAN / 2, Mini-ITX Retail
Quantity:
- SKU: 12247730
- Manufacturer: TYAN
- MPN: S32272NR-C338
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$258.19
| Processor | Supported CPU Series | (1) Intel Atom Denverton processor C3338 SoC | |||
| Thermal Design Power (TDP) wattage | 9W | ||||
| Chipset | Super I/O | NCT6683D-T | |||
| Memory | Supported DIMM Qty | (1) DIMM slot | |||
| DIMM Type / Speed | UDIMM/RDIMM ECC DDR4 1866 | ||||
| Capacity | Up to 16GB/32GB UDIMM/RDIMM | ||||
| Memory voltage | 1.2V | ||||
| Expansion Slots | PCI-E | (1) PCI-E Gen3 x8 slot (w/x2 link) | |||
| LAN | Port Q'ty | (2) GbE ports | |||
| Controller | Realtek RTL8111H | ||||
| Storage | SATA | Connector | (2) SATA | ||
| Controller | Intel Atom Denverton processor C3338 SoC CPU | ||||
| Speed | 6.0 Gb/s | ||||
| RAID | Non-support | ||||
| M.2 connector | (1) M.2 connector (2242/2260) by PCI-E interface | ||||
| Input /Output | USB | (2) USB3.0 ports (at rear) | |||
| COM | (1) header | ||||
| RJ-45 | (2) GbE ports | ||||
| Front Panel | (1) 2 x 5 header | ||||
| SATA | (2) SATA-III connectors | ||||
| Power | SSI/ATX 24-pin + 4-pin power connectors | ||||
| System Monitoring | Chipset | NCT6683D-T | |||
| Fan | Total (3) 4-pin headers | ||||
| Temperature | Monitors temperature for CPU & system environment / Monitors temperature for CPU & memory & system environment | ||||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||||
| LED | Fan fail LED indicator / Over temperature warning indicator | ||||
| Others | Watchdog timer support | ||||
| BIOS | Brand / ROM size | AMI / 16MB | |||
| Feature | ACPI 3.0/ACPI sleeping states S4,S5 / SMBIOS 2.8/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection | ||||
| Physical Dimension | Form Factor | mini-ITX | |||
| Board Dimension | 6.69" x 6.69" (170 x 170mm) | ||||
| Regulation | FCC (DoC) | Class B | |||
| CE (DoC) | Class A | ||||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |||
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||||
| RoHS | RoHS 6/6 Compliant | Yes | |||
| Operating System | OS supported list | Please refer to our AVL support lists. | |||
| Package Contains | Motherboard | (1) S3227 Motherboard | |||
| Manual | (1) Quick Installation Guide | ||||
| Installation CD | (1) TYAN installation CD | ||||
