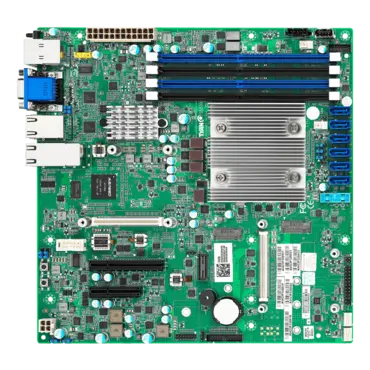

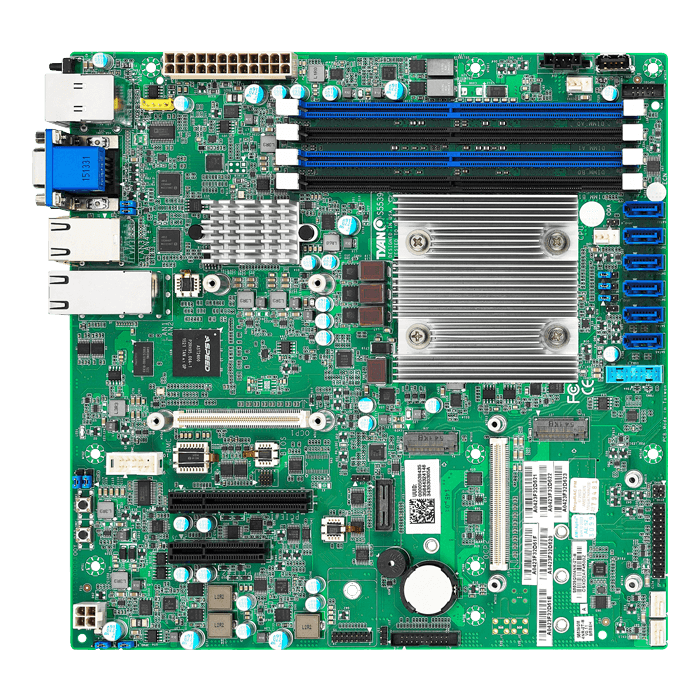

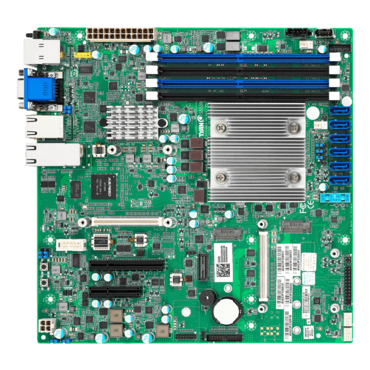

S5539 (S5539GM2NR-D21 (BTO)), Intel SoC D-1521, DDR4-2133 128GB RDIMM / 4, VGA, GbLAN / 2, microATX Retail

  • SKU: 12247760
  • Manufacturer: TYAN
  • MPN: S5539GM2NR-D21
Starting At
Processor Supported CPU Series Intel Xeon processor D-1521 SoC, 4 cores
Thermal Design Power (TDP) Wattage 45W
Memory Supported DIMM Qty (4) DIMM slots
DIMM Type / Speed UDIMM/RDIMM DDR4 2133
Capacity Up to 64GB/128GB UDIMM/RDIMM
Memory channel 2 Channels
Memory voltage 1.2V
Expansion Slots PCI-E (1) PCI-E Gen2 x4 slot / (1) PCI-E Gen3 x8 slot
NOTE: (2) OCP slots for TYAN LAN/SAS Card
LAN Q'ty / Port (2) GbE ports, (1) PHY dedicated for IPMI
Controller Intel I210-AT
PHY Realtek RTL8211E
Storage SATA Connector (6) SATA
Controller Intel Xeon processor D-1521 SoC CPU
Speed 6.0 Gb/s
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2400
Input /Output USB (4) USB3.0 ports (2 at rear, 2 via cable) / (1) Type-A USB2.0 port
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (2) GbE ports, (1) Dedicated for IPMI
SATA (6) SATA-III connectors
System Monitoring Chipset Aspeed AST2400
Fan Total (3) 4-pin headers
Temperature Monitors temperature for CPU & memory & system environment
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2400
AST2400 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2400 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 16MB
Feature Hardware Monitor / SMBIOS 2.7/PnP/Wake on LAN / PXE boot support / ACPI 3.0/ACPI sleeping states S4,S5
Physical Dimension Form Factor Micro ATX
Board Dimension 9.6"x9.6" (243.8x243.8mm)
Regulation FCC (DoC) Class A
CE (DoC) Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S5539 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
