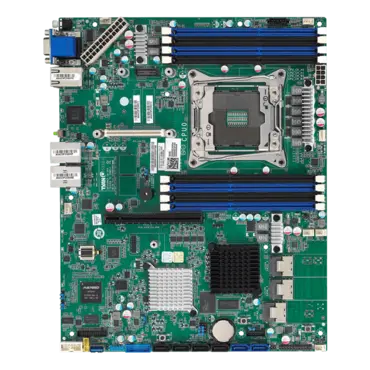

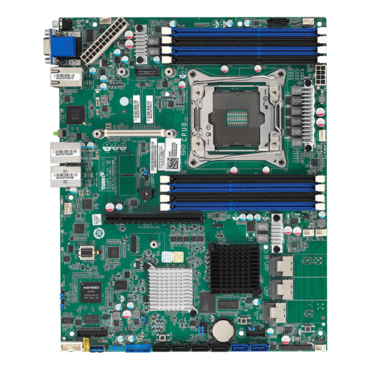

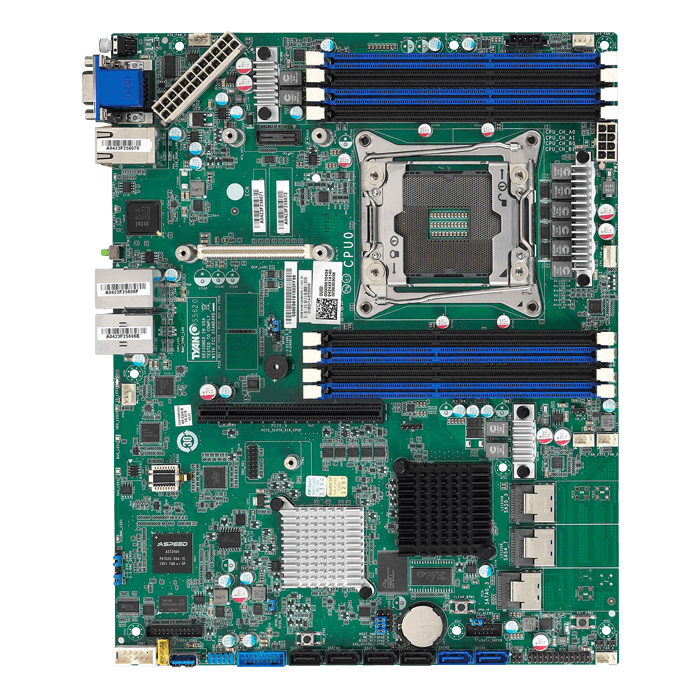

S5620 (S5620GM2NR), Intel C612, LGA 2011-3, DDR4-2400 1TB 3DS LRDIMM / 8, VGA, GbLAN / 2, ATX Retail

Quantity:
  • SKU: 12248161
  • Manufacturer: TYAN
  • MPN: S5620GM2NR
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$256.44
Quantity:
  • 12" x 9.6" ATX Form Factor
  • 8 R-DDR4 DIMM Slots
  • 2 onboard GbE LAN
  • 1 PCIe Gen3 x16 Slot
  • 1 OCP LAN Mezzanine Slot for Ethernet up to 10Gb/s
  • 10 SATA 6Gb/s Ports
  • IPMI 2.0 with Shared Management Port
Processor Socket Type / Q'ty LGA2011 / (1)
Supported CPU Series Intel Xeon Processor E5-2600/E5-1600 v3/v4 series processors
Thermal Design Power (TDP) Wattage Max up to 160W
Chipset PCH Intel C612
Memory Supported DIMM Qty (8) DIMM slots
DIMM Type / Speed RDIMM DDR4 2400/2133/1600 / LRDIMM DDR4 2400/1866 / LRDIMM 3DS DDR4 2400/1866 (*Up to 2400 speed support only w/E5-2600 v4)
Capacity Up to 256GB RDIMM/ 512GB LRDIMM/ 1,024GB LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel 4 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCI-E (1) PCI-E Gen3 x16 slot
Recommended TYAN OCP Card M7062-B811-1T, PCI-E Gen3 x8, Broadcom 10GbE Mezz Card / M7062-B810-2T, PCI-E Gen3 x8, Broadcom 10GbE Mezz Card / M7076-X540-2T, PCI-E Gen3 x8, Intel 10GbE Mezz Card / M7076-I350, PCI-E Gen3 x8, Intel (2)GbE Mezz Card / M7062-I599-1T, PCI-E Gen3 x8, Intel 10GbE Mezz Card / M7062-I599-2T, PCI-E Gen3 x8, Intel 10GbE Mezz Card
NOTE: (1) OCP slot for Mezz Card
LAN Q'ty / Port (2) GbE ports (1 port shared with IPMI)
Controller Intel I210-AT
Storage SATA Connector (6) SATA
Controller Intel C612
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
sSATA Connector (1) Mini-SAS (4-ports)
Controller Intel C612
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2400
Input /Output USB (4) USB 2.0 ports (2 at rear, 2 via cable) / (5) USB3.0 ports (2 at rear, 2 via cable, Type-A)
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 Total (2) GbE ports, (1) shared with IPMI
Front Panel (1) 2x12-pin SSI front panel header
SATA (6) SATA-III + (4) SATA ports by (1) mini-SAS connector
Power SSI 24-pin + 8-pin + 8-pin power connectors
System Monitoring Chipset Aspeed AST2400
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2400
AST2400 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2400 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 16MB
Feature Hardware Monitor / SMBIOS 2.7/PnP/Wake on LAN / PXE boot support / ACPI 3.0/ACPI sleeping states S1,S4,S5
Physical Dimension Form Factor ATX
Board Dimension 12"x9.6" (305x243.8mm)
Regulation FCC (DoC) Class A
CE (DoC) Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S5620 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
