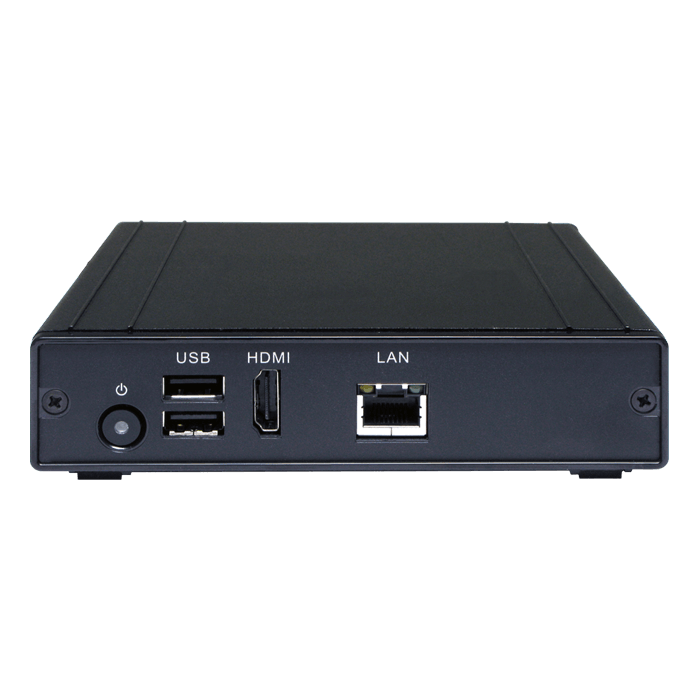

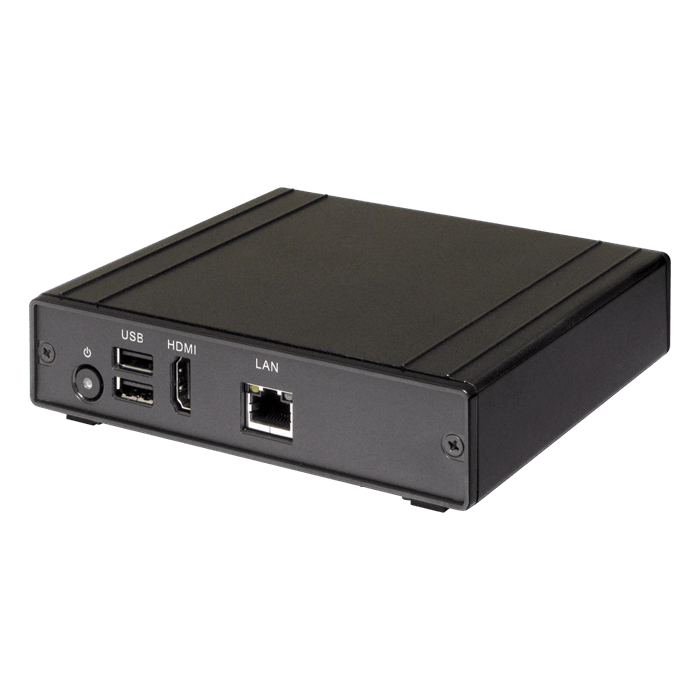

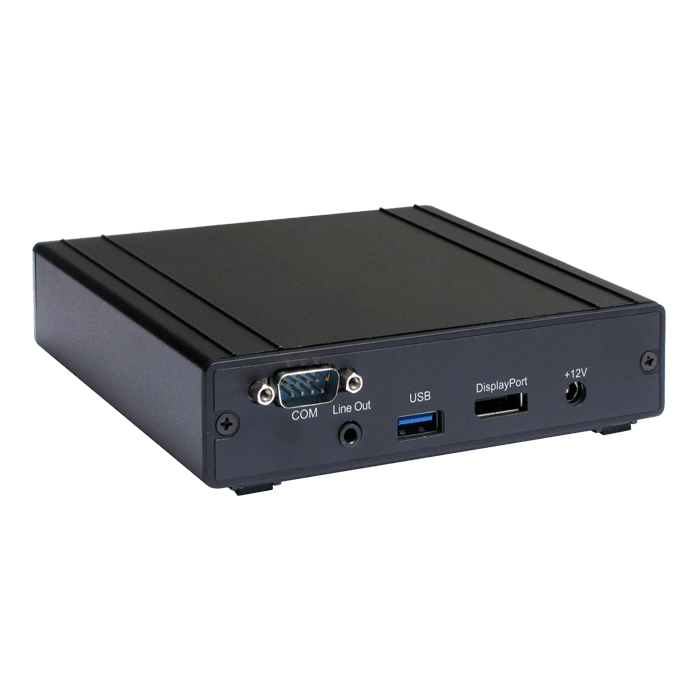

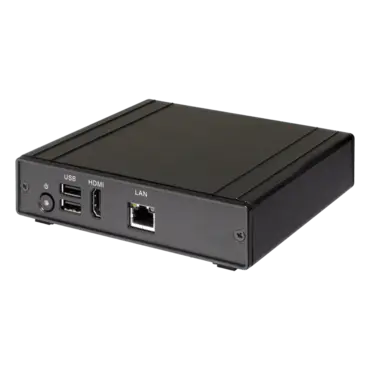

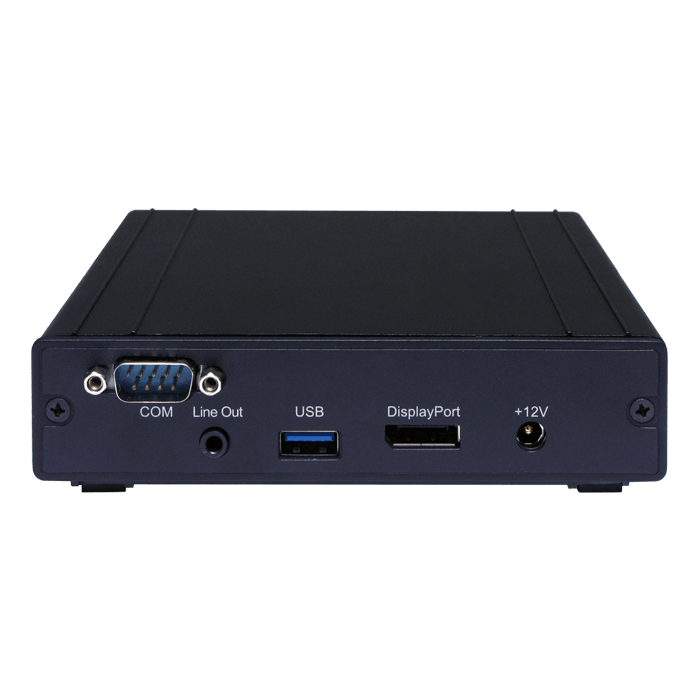

SA166CR Signage Appliance, Intel® Atom™ quad core 1.44GHz (up to 1.92GHz), 4GB Memory, 64GB Storage, Microsoft® Windows® 10 IoT Enterprise
Quantity:
- SKU: 15252262
- Manufacturer: DT RESEARCH
- MPN: SA166CR
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$404.22
- Intel® Atom™ CPU, 4 cores
- Small, robust and fanless design
- Microsoft® Windows® 10 IoT Enterprise operating system
- Support for multiple zones of content
- Content flexibility for many multimedia file formats
- Real-time or scheduled content playback
- Flexible screen layout options with multiple zones and layers
- Automatic content download recovery
| System | |
| CPU | Intel® Atom™ quad core, 1.44GHz (up to 1.92GHz) |
| Chipset/GPU | Intel® HD Graphics |
| RAM | 4GB |
| Storage | 64B |
| Operating System | Microsoft® Windows® 10 IoT Enterprise |
| Display Resolution | 1920 x 1080 @ 60Hz, 3840 x 2160 @ 30Hzz |
| Video Performance? | 1080P x 1 @ 12 mpbs/30fps |
| Network Interface | 10/ 100/ 1000MB BaseT LAN |
| I/O Ports | |
| HDMI | 1 |
| DisplayPort | 1 |
| Audio Jack | 1 |
| USB 2.0 | 2 |
| USB 3.0 | 1 |
| COM | 1 |
| DC-in | 1 |
| Ethernet | RJ45 connector for Ethernet x 1 |
| Mechanical and Environmental | |
| AC/DC Adapter | Input: 100 – 240V AC; Output: 12V DC, 3.33A |
| Fan/ Fanless | Fanless |
| Enclosure | Aluminum + steel |
| Dimensions (H x W x D) | 35 x 140 x 130 mm/ 1.4 x 5.5 x 5.1 in |
| Weight | 0.88 lbs/ 400 g |
| Regulatory | FCC Class B, CE, C-Tick, UL, RoHS compliant |
| Temperature | Operation: 0°C – 40°C; Storage: -20°C – 60°C |
| Humidity | 0% – 90% non-condensing |
