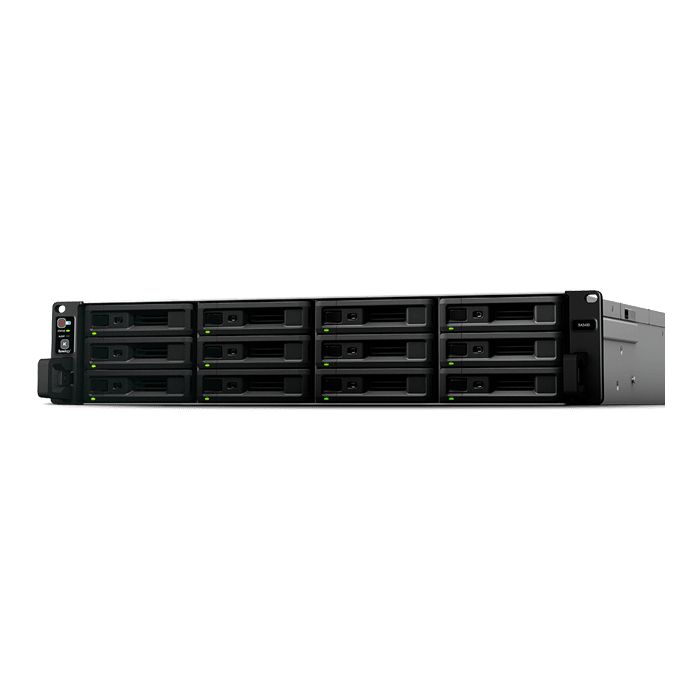

SA3400 2U NAS Server, Intel® Xeon D-1541, DDR4-2666 16GB ECC RDIMM / 4, SATA/SAS / 12, GbLAN / 4, 500W Rdt PSU

Quantity:
  • SKU: 12904451
  • Manufacturer: SYNOLOGY
  • MPN: SA3400
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$6,622.39
Quantity:
CPU CPU Model Intel Xeon D-1541
CPU Architecture 64-bit
CPU Frequency 8-core 2.1 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory System Memory 16 GB DDR4 ECC RDIMM
Memory Module Pre-installed 16 GB (16 GB x 1)
Total Memory Slots 4
Maximum Memory Capacity 128 GB (32 GB x 4)
Notes
  • For more information on memory upgrade limitations, visit here.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information on the recommended memory configurations, visit here.
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage Drive Bays 12
Maximum Drive Bays with Expansion Unit 96 (RX1217sas x 7) / 180 (RX2417sas x 7)
Compatible Drive Type* (See all supported drives)
  • 3.5" SAS HDD
  • 2.5" SAS HDD
  • 2.5" SAS SSD
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Single Volume Size*
  • 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
Hot Swappable Drive
Notes
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).
External Ports RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.0 Port 2
Expansion Port 1
PCIe PCIe Expansion 2 x Gen3 x8 slots (x8 link)
File System Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 14.5 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS1317)
Notes The rail kit is sold separately
Others System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 49.8 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 500 W
Redundant Power Supply
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 137.17 W (Access)
70.95 W (HDD Hibernation)
British Thermal Unit 468.04 BTU/hr (Access)
242.09 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
Temperature Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • CCC
  • KC
  • UL
  • VCCI
  • RCM
Warranty 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
  • DDR4 ECC RDIMM: D4RD-2666-16G*/D4RD-2666-32G
  • Expansion Units: RX2417sas/RX1217sas
  • 2.5" SATA SSD: SAT5200
  • M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
  • M.2 SSD Adapter Card: M2D20
  • 10GbE Network Interface Card: E10G18-T2/E10G18-T1/E10G17-F2
  • Rail Kit Sliding: RKS1317
  • VisualStation: VS960HD/VS360HD
  • Surveillance Device License Pack
