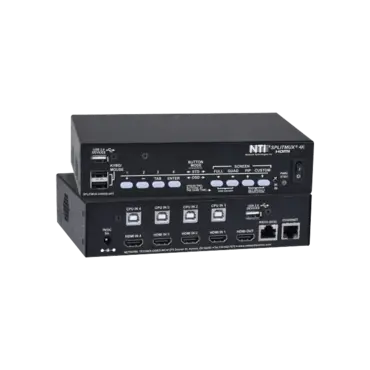

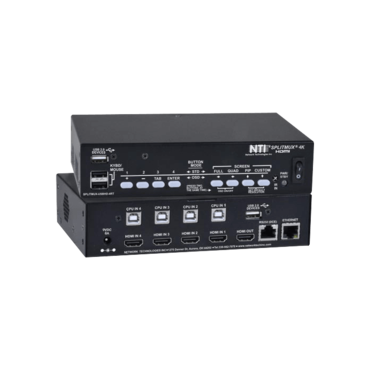

4K HDMI Quad Screen Multiviewer with Built-In KVM Switch, Desktop
Display video from four HDMI computers simultaneously on a single 4Kx2K monitor
Quad, Picture in Picture, Full Screen, and Custom display modes
Supports 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200
Hosts
- Four female HDMI connectors.
- Four female USB Type B connectors.
- Supported video input resolutions:
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 1920x1200.
- Supports HDCP 1.4
- Supports USB computers.
- Boots PCs, SUNs, and MACs simultaneously.
- Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
- Supports HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
Monitor
- One female HDMI connector.
- Supported video output resolutions:
- Quad and Full mode
- Ultra-HD 4Kx2K resolutions (3840x2160 @ 60Hz, 4096x2160 @ 60Hz)
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 2560x1600
- PiP and Custom mode
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 1920x1200.
- HDMI-embedded audio switching (four-channel stereo, non-mixing or one channel stereo, mixing).
- Switch audio independently of video from connected HDMI sources.
- Multiple audio sources can be simultaneously active in any display mode or preset layout.
- Latency:
- 50mS at 60Hz
- 60mS at 50Hz
- 100mS at 30Hz
- 120mS at 25Hz
- 125mS at 24Hz
Devices
- Two female USB Type A connectors for keyboard and mouse.
- Keyboard and mouse are hot-pluggable.
- Two female USB Type A connectors for USB peripheral devices (touch screen monitor, printers, scanners, security cameras, flash drives, etc.)
- Connect any type of USB device - fully transparent USB connectors.
- Switch USB 2.0 devices between connected computers.
- In Full Screen mode, USB touch screen monitors can be used to control the connected active computer.
- Provides support for high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
Protocols
- HTTP, HTTPS
- TCP/IP, DHCP, UDP, ARP
- IPV4
Power
- 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
- Power consumption: 20W
Dimensions
- SPLITMUX-USB4K-4RT (desktop)
- WxDxH (in): 7.35x4.98x1.75 (187x126x45 mm)
- SPLITMUX-USB4K-4RT-R (1RU rackmount) and SPLITMUX-USB4K-4RT-2R (1RU dual side-by-side rackmount)
- WxDxH (in):
- Without rackmount kit: 7.35x4.98x1.75 (187x126x45 mm)
- With rackmount kit: 19x4.98x1.75 (483x126x45 mm) (excludes cable tray)
- Can be mounted so that the front panel buttons are facing the front or back of the rack.
- Includes cable management tray.
Environmental
- Operating temperature: 32°F to 122°F (0°C to 50°C).
- Storage temperature: -22°F to 140°F (-30°C to 60°C).
- Operating and storage relative humidity: 17 to 90% non-condensing RH.
