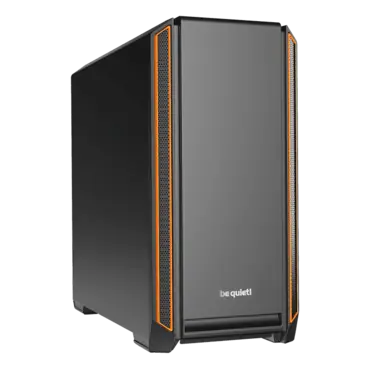

Silent Base 601, No PSU, E-ATX, Black/Orange, Mid Tower Case
Quantity:
- SKU: 12330601
- Manufacturer: be quiet!
- MPN: BG025
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$193.08
| General data | |
| Model | Silent Base 601 | Orange |
| PSU form factor | ATX PS/2 |
| Motherboard compatibility | E-ATX, ATX, M-ATX, Mini-ITX |
| Case size excl. stands (L x W x H), (mm) | 532 x 240 x 481 |
| Installation of motherboards with backplate | ✔ |
| Case size incl. stands (L x W x H), (mm) | 532 x 240 x 514 |
| Dimensions side panel window (L x W), (mm) | 440 x 498 |
| Color option | Orange |
| Weight (kg) | 10.49 |
| USB 2.0 | 1 |
| USB 3.0 | 2 |
| USB 3.1 Gen 2 Type C | - |
| HD Audio I/O | 1 |
| Expansion slots | 7+2 |
| Fan mounting locations | Front, Rear, Top, PSU Shroud |
| Qi charger / Quick Charging Option | - |
| Material | |
| Top cover | ABS, Steel |
| Side panel | - |
| Side panel window | - |
| Front panel | ABS, Steel |
| Stands | ABS |
| Drive bay capacity | |
| 5.25 bays | - |
| 3.5 slots (max.) | 7 |
| 3.5 slots (scope of delivery) | 3 |
| 2.5 slots (max.) | 14 |
| 2.5 slots (scope of delivery) | 6 |
| Pre-installed fans | |
| Fan @ front | 1x be quiet! Pure Wings 2 |140mm |
| Fan @ rear | 1x be quiet! Pure Wings 2 |140mm |
| Dimensions (L x W x H), (mm) | Front: 140 x 140 x 25, Rear: 140 x 140 x 25 |
| Fan speed @ 12V (rpm) | 1,000 |
| Noise level @ 12V (dB(A)) | 18.8 |
| Airflow @ 12V (cfm / m3/h) | 61.2 / 104 |
| Air pressure @ 12V (mm H2O) | 0.76 |
| Voltage range (V DC) | 5-12 |
| Input power (W) | 1.44 |
| Input current (A) | 0.12 |
| Connector | 3-pin |
| Lifespan (h / 25°C) | 80,000 |
| Fan controller | 3-step fan controller (3x 3-pin) |
| Optional fan installation | |
| Front (mm) | 2x 140/120 |
| Top (mm) | 3x 140/120 |
| Bottom (mm) | - |
| Side panel (mm) | - |
| PSU shroud | 1x 140/120 |
| Optional radiator installation | |
| Front (mm) | 120 / 140 / 240 / 280 / 360 |
| Top (mm) | 120 / 240 / 360 |
| Bottom (mm) | - |
| Rear (mm) | 120 / 140 |
| Cooling | |
| Max.construction height of CPU cooler unit (mm) | 185 |
| Airflow channel | Front, Top, Rear |
| Lighting | |
| RGB LED illumination | - |
| LEDs synchronizable with RGB controller/motherboard | - |
| Expandable RGB controller | - |
| PSU compatibility | |
| Maximum dimensions excl. bottom fan (mm) | 288 |
| Maximum dimensions incl. bottom fan (mm) | 288 |
| Graphics card | |
| HDD cage (in height of graphics card) installed (mm) | 287 |
| HDD cage (in height of graphics card) removed (mm) | 449 |
| Insulation and damping | |
| Top panel insulation mats | ✔ |
| Front panel insulation mats | ✔ |
| Side panel insulation mats | ✔ |
| Anti-vibration decoupled HDD | ✔ |
| Anti-vibration decoupled fan | ✔ |
| Anti-vibration decoupled PSU | ✔ |
| Anti-vibration decoupled motherboard-tray | ✔ |
| Removeable dust filters | |
| Front | 1 |
| Bottom | 1 |
| Side panel | 0 |
| Accessories | |
| Screw set (Drives/Motherboard) | ✔ |
| Rubber rail (pcs.) | - |
| Standoff (pcs.) | 1 (for E-ATX) |
| LCS bracket (pcs). | 0 |
| HDD slot cover (pcs.) | 0 |
| Upper fan bracket (pcs.) | 0 |
| HDD panel rubber grommet (pcs.) | - |
| SSD bracket for PSU shroud | 0 |
| LED strips (pcs.) | - |
| Cable ties (pcs.) | 6 (Velcro) |
| Cable tie holder (pcs.) | - |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | ✔ / DE, FR |
| Logistics data, RRP | |
| Article number | BG025 |
| EAN code | 4260052186992 |
| Certifications | CE, RoHS |
| Dimensions, package (L x W x H), (mm) | 566 x 325 x 615 |
| Gross weight, package (kg) | 12,50 |
| Pieces per packaging unit | 1 |
