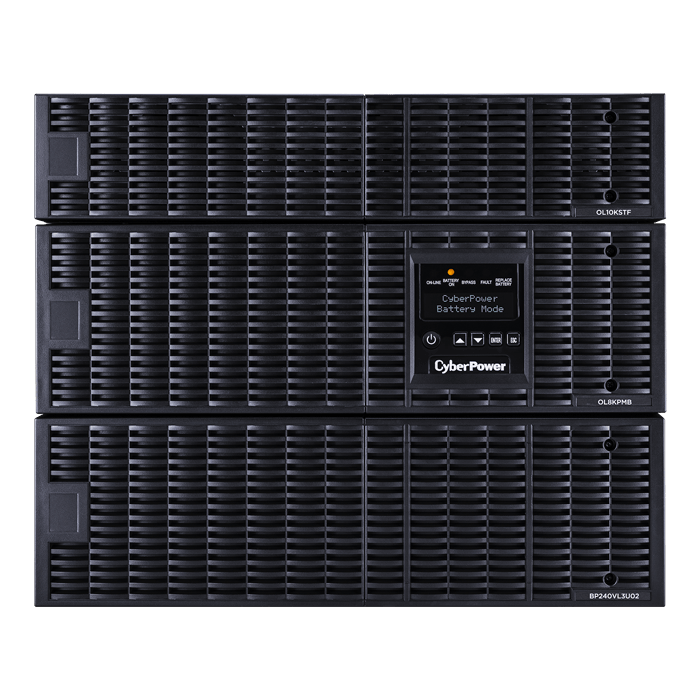

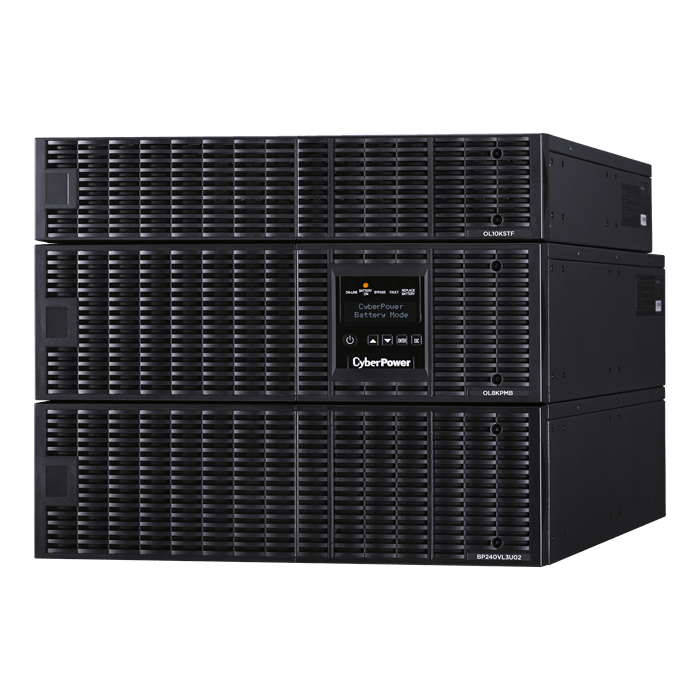

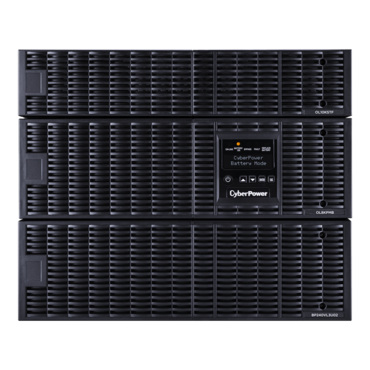

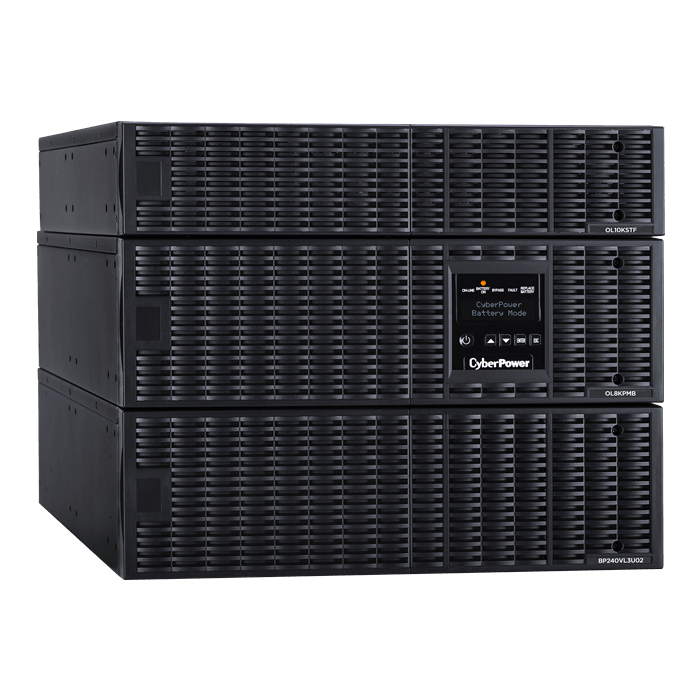

Smart App Online OL8KRTMBTF, 8000VA/8000W, 240V, 13 Outlets, Black, Tower/8U Rackmount UPS
Quantity:
- SKU: 12690455
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: OL8KRTMBTF
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$6,004.95
- Capacity: 8000 VA / 8000 W
- Power Factor (PF): 1
- Topology: Double-conversion
- Waveform: Sine Wave
- Output: 120 VAC; 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Plug type & cord: Hardwire

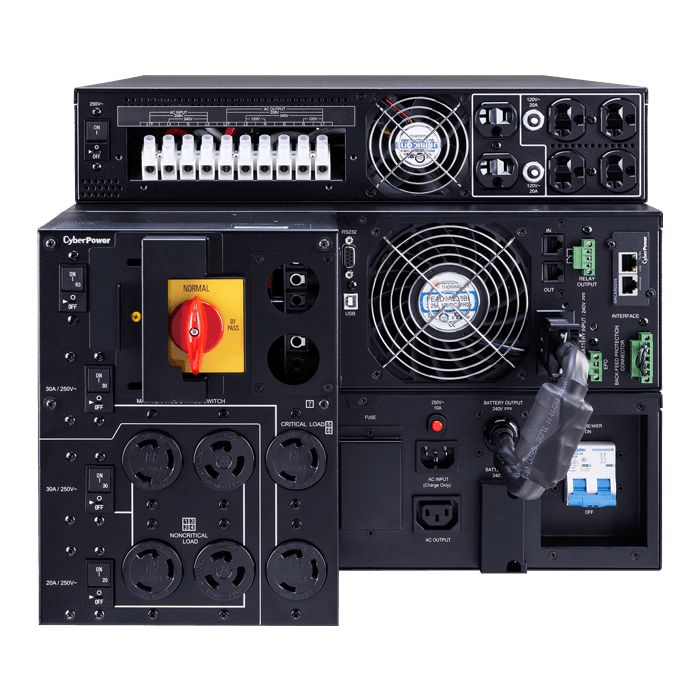

- Outlet types: 6 x NEMA 5-20R, 2 × NEMA L6-20R, 4 x NEMA L6-30R, 1 x Hardwire Terminal Block
- Maintenance Bypass Switch: Yes
- Communication ports: USB, Serial, SNMP, Relay, EPO
- Data line protection: Telephone, Network
- Management software: PowerPanel® Business Edition
- Energy saving: ECO Mode Efficiency >96%
- Warranty: 3 year
| General | |
| Energy Saving | Yes – ECO Mode Efficiency up to 96% |
| Nominal Voltage | 200 V to 240 V |
| UPS Topology | Double Conversion |
| Battery | |
| Battery Quantity | 20 |
| Battery Size | 12 V/9 Ah |
| Battery Type | Sealed lead acid |
| Extended Battery Module | Optional BP240VL3U01 |
| Hot Swappable | Yes |
| Replacement Battery | (2) RB1290X10 |
| Replacement Battery Cartridge Quantity | 2 |
| Runtime at Full Load | 4.7 min |
| Runtime at Half Load | 12 min |
| Smart Battery Management (SBM) Mode | Yes |
| Typical Recharge Time | 5 h (0% to 90%) |
| User Replaceable | Yes |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 35.31 x 82.04 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 13.9 x 32.3 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 353 x 820 (mm) |
| Rack Units | 8U |
| Rail Depth – Max. Mounting (in) | 36.02 |
| Rail Depth – Max. Mounting (mm) | 915 |
| Rail Depth – Min. Mounting (in) | 20.47 |
| Rail Depth – Min. Mounting (mm) | 520 |
| Weight (kg) | 160.56 |
| Weight (lb) | 353.98 |
| Dimensions – Shipping | |
| Shipping – Dimensions (WxHxD, in) | 40.5 x 44.1 x 24.4 (in) |
| Shipping – Dimensions (WxHxD, mm) | 1028.7 x 1120.14 x 619.76 (mm) |
| Shipping – Weight (kg) | 207.46 |
| Shipping – Weight (lb) | 457.38 |
| Dimensions – Step-Down Tranformer | |
| Step-Down Tranformer – Dimensions (WxHxD, in) | 17.05 x 3.46 x 23.6 |
| Step-Down Tranformer – Dimensions (WxHxD, mm) | 433 x 88 x 600 |
| Step-Down Tranformer – Rack Units | 2U |
| Step-Down Tranformer – Weight (kg) | 54.3 |
| Step-Down Tranformer – Weight (lb) | 119.68 |
| Dimensions – Maintenance Bypass Module | |
| Maintenance Bypass Module – Dimensions (WxHxD, in) | 7.8 x 10.4 x 6.3 |
| Maintenance Bypass Module – Dimensions (WxHxD, mm) | 198 x 264 x 160 |
| Maintenance Bypass Module – Rack Units | 6U |
| Maintenance Bypass Module – Weight (kg) | 5.9 |
| Maintenance Bypass Module – Weight (lb) | 13 |
| Dimensions – Battery Module | |
| Battery Module – Dimensions (WxHxD, in) | 17.05 x 5.2 x 26 |
| Battery Module – Dimensions (WxHxD, mm) | 433 x 132 x 660 |
| Battery Module – Rack Units | 3U |
| Battery Module – Weight (kg) | 78 |
| Battery Module – Weight (lb) | 171.6 |
| Dimensions – Power Module | |
| Power Module – Dimensions (WxHxD, in) | 17.05 x 5.2 x 26 |
| Power Module – Dimensions (WxHxD, mm) | 433 x 132 x 660 |
| Power Module – Rack Units | 3U |
| Power Module – Weight (kg) | 24 |
| Power Module – Weight (lb) | 52.8 |
| Input | |
| Backfeed Protection | Yes |
| Cold Start | Yes |
| Frequency Range | 40 Hz to 70 Hz (auto-sensing) |
| Input Power Factor | 0.99 |
| Plug Type | Hardwire |
| Voltage Range |
120 V to 139 V, 0% to 25% load 140 V to 159 V, 0% to 50% load 160 V to 179 V, 0% to 75% load 180 V to 280 V, 0% to 100% load |
| Output | |
| Bypass | Internal Bypass (Automatic and Manual), Maintenance Bypass |
| Crest Factor | 3:1 |
| ECO Mode Bypass Voltage Range | ±10%, ±15% (configurable) |
| Harmonic Distortion | <3% at linear load, <5% at non-linear load |
| Maintenance Bypass | Yes |
| Nominal Voltage (Battery Mode) | 120 V; 200, 208, 220, 230, 240 V ±2% (configurable) |
| Outlet Type | (6) NEMA 5-20R, (2) NEMA L6-20R, (4) NEMA L6-30R, (1) Hardwire Terminal Block |
| Outlets – Total | 13 |
| Output Frequency | 50/60 Hz ±0.25 Hz (auto-sensing/configurable) |
| Output Power Factor | 1 |
| Overload Protection |
Line Mode: 105% to 125% load for 1 min 126% to 150% load for 10 s Battery Mode: 105% to 130% load for 10 s 131% to 150% load for 2 s |
| Rated Power Factor | 1 |
| Short Circuit Protection | UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection |
| Transfer Time | 0 ms |
| VA | 8,000 (8 kVA) |
| Watts | 8,000 (8 kW) |
| Waveform (Battery Mode) | Sine wave |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Phone / Network Surge Protection RJ11/RJ45 | 1-In / 1-Out (Combo) |
| Surge Protection | 2430 Joules, IEC 61000-4-5 Level 3 |
| Management & Communications | |
| Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault |
| Cables Included | USB cable, serial cable, phone cable |
| Dry Contact Port | Yes |
| Emergency Power Off (EPO) Port | Yes |
| Expansion Slot | Yes – RMCARD205 pre-installed |
| HID Compliant USB Port | Yes |
| LCD Control Panel | Access 51 information status and configuration settings via the Information and Configuration Menus, in addition to an Event Log Menu. |
| LED Indicators |
Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red) |
| Management Cable | USB cable, Serial Cable, Phone line |
| Removable LCD Control Panel Option | Yes – Requires DB26 cable (not included) |
| Rotatable LCD Control Panel Option | Yes |
| SNMP / HTTP Remote Monitoring | Yes – RMCARD205 pre-installed |
| Serial Port | Yes |
| Software | PowerPanel® Business Edition |
| Physical | |
| Color | Black |
| Enclosure Construction | Steel |
| Form Factor | Rack / Tower convertible (rotatable LCD) |
| Mounting Hardware Included | Yes |
| Rack Mounting Hardware | Included |
| Environmental | |
| Audible noise at 1m from surface of unit | 38 dBA to 65 dBA (0% to 100% load) |
| ECO Mode Thermal Dissipation (100% Load) | 932 BUT/hr |
| Operating Elevation | 0 ft to 10,000 ft (0 to 3,000 m) |
| Operating Relative Humidity | 0% to 90% non-condensing |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| STF Thermal Dissipation (100% load) | 1914 BTU/h |
| Storage Elevation | 0 ft to 50,000 ft (0 m to 15,000 m) |
| Storage Relative Humidity | 0% to 95% non-condensing |
| Storage Temperature | -4 °F to 113 °F (-20 °C to 45 °C) |
| UPS Online Thermal Dissipation (100% load) | 2536 BTU/h |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Extended 2-Year Warranty | Optional WEXT5YR-U20C |
| Product Warranty | 3 Years Limited |
