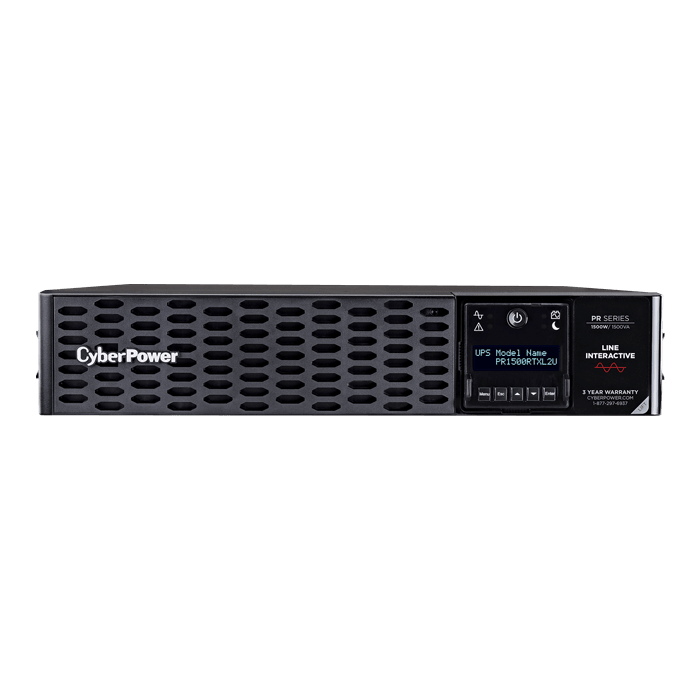

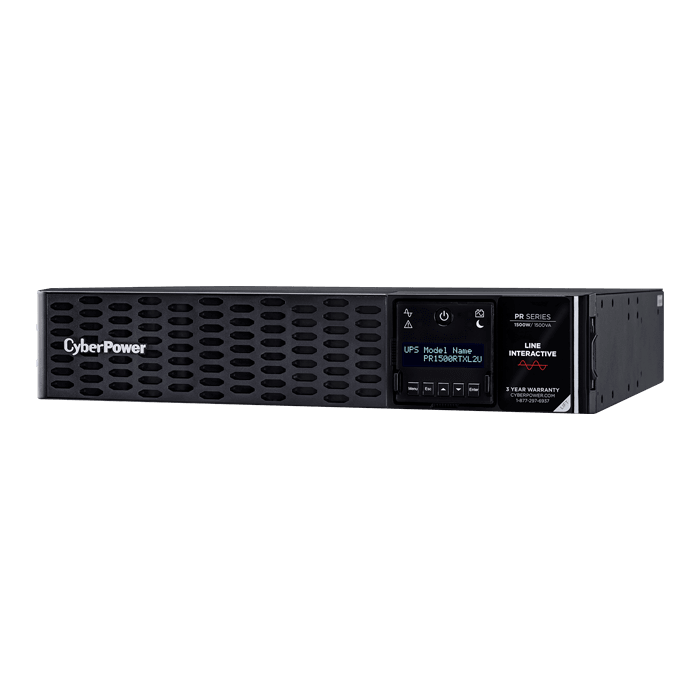

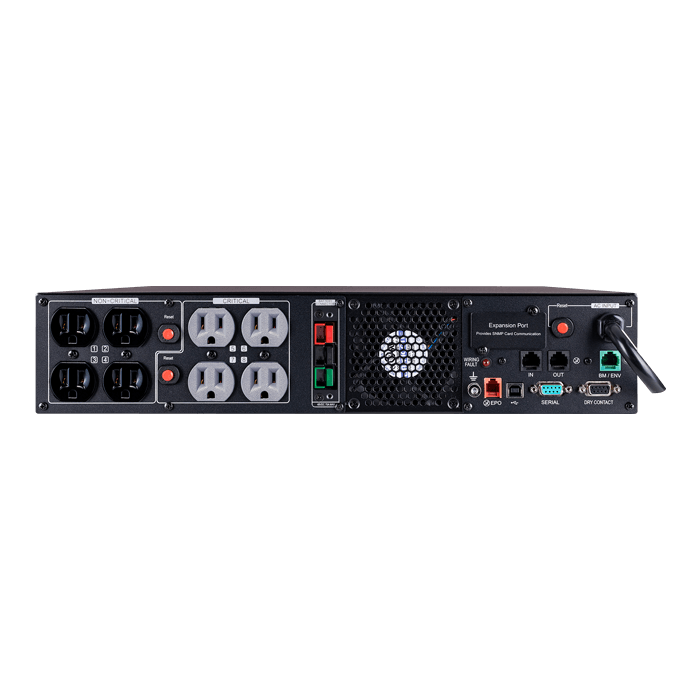

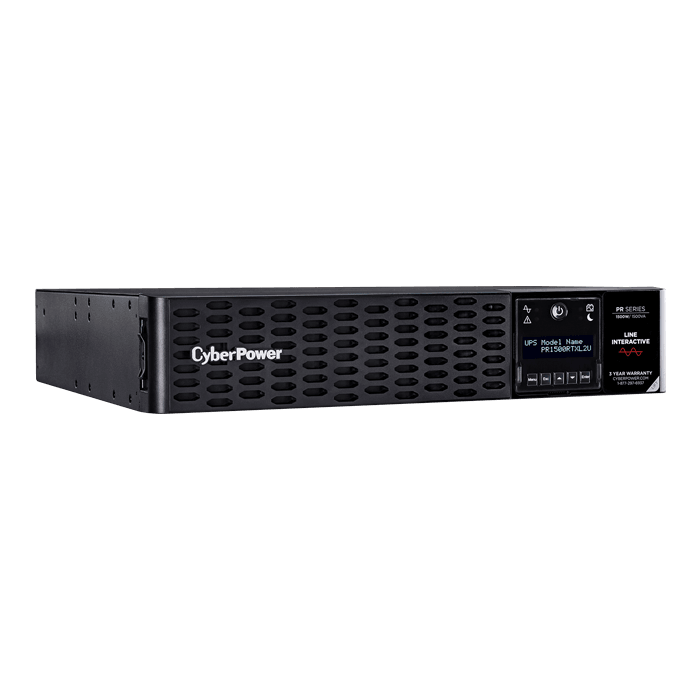

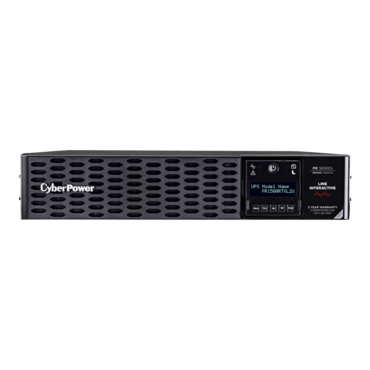

Smart App Sinewave PR1500RTXL2U, LCD, 1500 VA/1500 W, Sine Wave, 2U Rackmount/Tower UPS

  • SKU: 12361416
  • Manufacturer: CYBERPOWER SYSTEMS
  • MPN: PR1500RTXL2U
Starting At
  • Capacity: 1500 VA / 1500 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 100-125 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Outlet types: 8 × NEMA 5-15R
  • Communication: USB, Serial, SNMP, Relay, EPO
  • Management software: PowerPanel® Business Edition
  • Remote management: Yes
  • Warranty: 3 year
  • ENERGY STAR® qualified: Yes
UPS Topology Line Interactive
Energy Saving GreenPower UPS™ Bypass Technology
ENERGY STAR® Qualified Yes
Active PFC Compatible Yes
Voltage 100 – 125 Vac
Frequency 47 – 63 Hz
Input Voltage Range 70 – 155 Vac
Plug Type NEMA 5-15P
Plug Style Right Angle, 45° Offset Right
Cord Length 10 ft.
VA 1500
Watts 1500
Automatic Voltage Regulation Double Boost, Single Buck
On Battery Voltage 100/110/120/125 Vac ± 5%
On Battery Frequency 50/60 Hz ± 1%
On Battery Waveform Sine Wave
Outlets – Total 8
Outlet Type NEMA 5-15R
Outlets – Critical Load 4
Outlets – Battery & Surge Protected 8
Rated Power Factor 1
Overload Protection Internal Circuitry Limiting
Circuit Breaker
Transfer Time 4 ms typical
Extended Battery Module BP48VP2U02
Runtime at Half Load (min) 17.9
Runtime at Full Load (min) 6.5
Battery Type Sealed Lead-Acid
Battery Size 12 V/9 AH
Hot-Swappable Yes
Replacement Battery RB1290X4J
Battery Quantity 4
User Replaceable Yes
Typical Recharge Time 3 hrs
External Battery Pack Option Yes
Surge Protection & Filtering
RJ11/RJ45 1-in, 1-out
Surge Suppression 2430
EMI/RFI Filtration Yes
Management & Communications
Multifunction LCD Panel 47 Settings (27 setup and control items + 20 status updates and log menus)
HID Compliant USB Port Yes
Serial Port Yes
EPO Port Yes
Contact Closure Yes
Management Cable USB Cable, Serial Cable, EPO Cable
LED Indicators Power On, Line Mode, Battery Mode, Fault, Night Mode, Wiring Fault
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat
Software PowerPanel® Business Edition
SNMP/HTTP Remote Monitoring Yes – with optional RMCARD205
Rack Size 2U
Color Black
Form Factor Rack/Tower
Dimensions – W×H×D (in) 17.1 x 3.4 x 19.7
Weight (lbs) 67.7
Shipping Dimensions (WxHxD) (in.) 22.1 x 10.8 x 24.4
Shipping Weight (lbs.) 81.1
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity 0 – 95% (non-condensing)
Storage Temperature 5°F to 113°F (-15°C to 45°C)
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
AC Mode Thermal Dissipation 71.7
Safety UL1778, cUL107.1, FCC Class B
Environmental RoHS Compliant
Product Warranty Three-Years Limited
Connected Equipment Guarantee Lifetime
