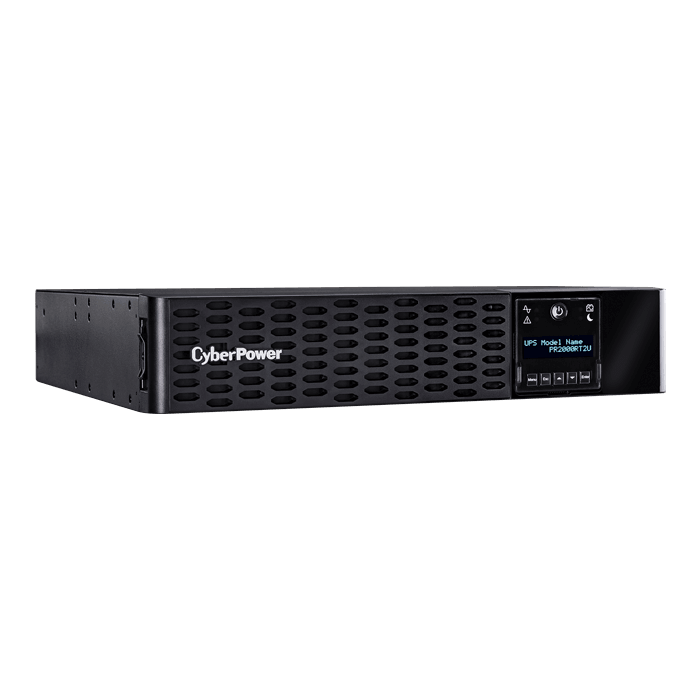

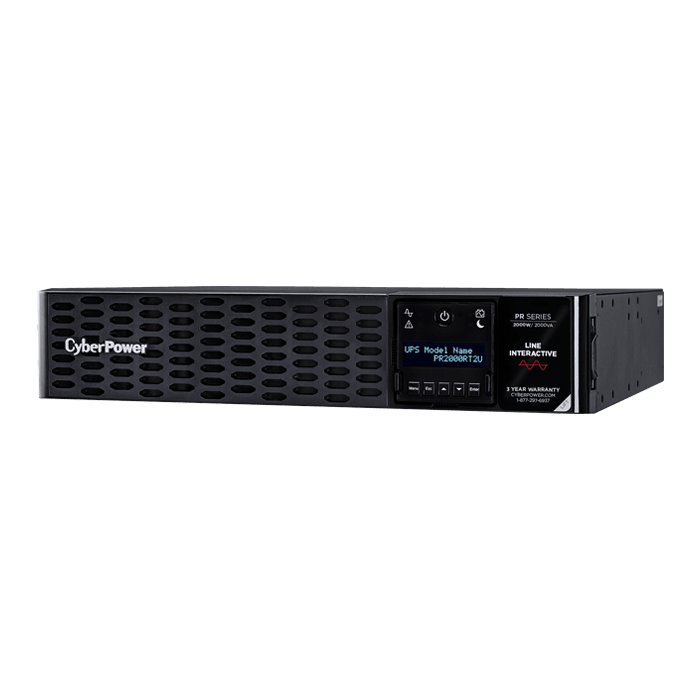

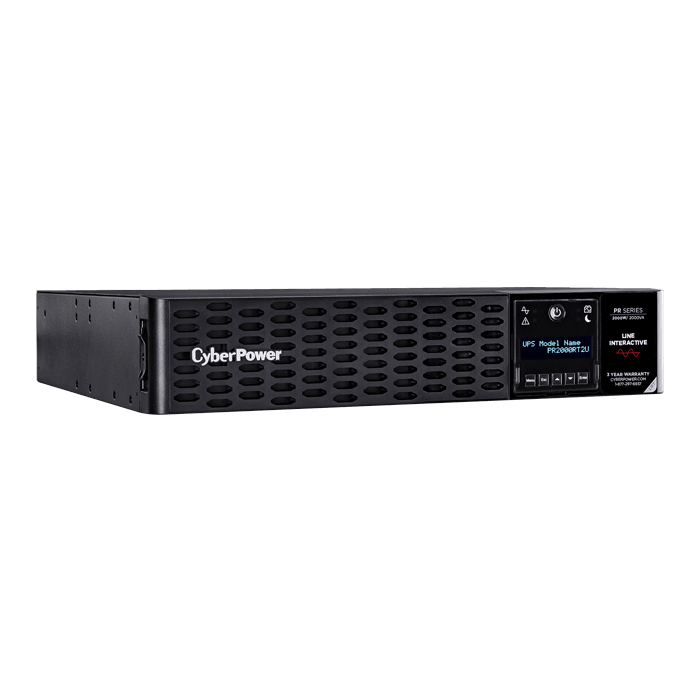

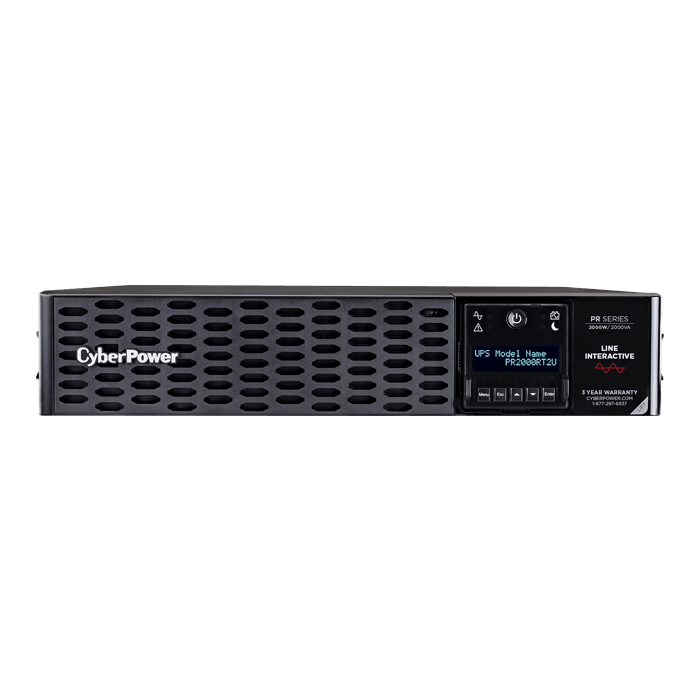

Smart App Sinewave PR2000RT2UN, 2000VA/2000W, 125V, 8 Outlets, Black, Tower/2U Rackmount UPS

SKU: 12843232



Availability: Out of Stock

Price: $939.95
or as low as $30/month
  • Capacity: 2000 VA / 2000 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 100-125 VAC ± 5%
  • Plug type & cord: NEMA 5-20P, 10 ft. cord
  • Outlet types: 8 × NEMA 5-20R
  • Communication: USB, Serial, SNMP, Relay, EPO
  • Management software: PowerPanel® Business Edition
  • Remote management: Yes, pre-installed RMCARD205
  • Warranty: 3 year
  • ENERGY STAR® certified: Yes
Active PFC Compatible Yes
Energy Saving GreenPower UPS™ Bypass Technology
Energy Star Certified Yes
UPS Topology Line-Interactive
Battery Quantity 4
Battery Size 12V / 9AH
Battery Type Sealed Lead-Acid
Extended Battery Option No
Hot Swappable Yes
Replacement Battery Cartridge RB1290X4J
Replacement Battery Cartridge Quantity 1
Runtime at Full Load 4.5 minutes
Runtime at Half Load 13.5 minutes
Typical Recharge Time 3 hrs
User Replaceable Yes
Physical Dimensions – (WxHxD) (cm) 43.43 x 8.64 x 41.15 (cm)
Physical Dimensions – (WxHxD) (in) 17.1 x 3.4 x 16.2 (in)
Physical Dimensions – (WxHxD) (mm) 434 x 86 x 411 (mm)
Weight (kg) 27.12
Weight (lb) 59.8
Dimensions – Shipping
Shipping – Weight (kg) 33.57
Shipping – Weight (lb) 74.0
Shipping Dimensions – (WxHxD) (cm) 52.71 x 26.67 x 54.61 (cm)
Shipping Dimensions – (WxHxD) (in) 20.75 x 10.5 x 21.5 (in)
Shipping Dimensions – (WxHxD) (mm) 527.05 x 266.7 x 546.1 (mm)
Adjustable Voltage Range 70 – 155 Vac
Circuit Breaker 20A
Cord Length (ft) 10
Frequency Range 47 – 63 Hz
Input Voltage 100-125Vac
Input Voltage Range 75 – 149 Vac
Plug Style Right Angle, 0° Offset
Plug Type NEMA 5-20P
Automatic Voltage Regulation Double boost, single buck
On Battery Frequency 50/60Hz +/- 1%
On Battery Voltage 100/110/120/125Vac ± 5%
On Battery Waveform Sine wave

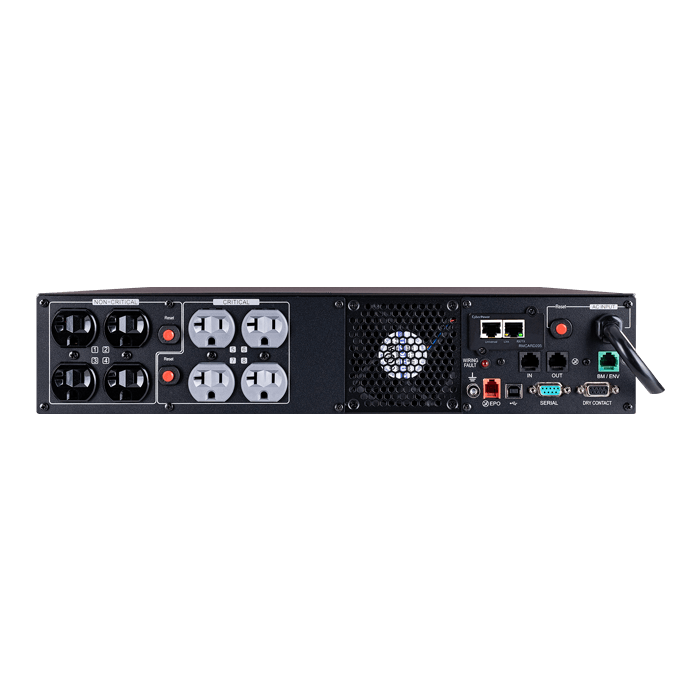

Outlet Type NEMA 5-20R
Outlets – Battery & Surge Protected 8
Outlets – Critical Load 4
Outlets – Total 8
Overload Protection Internal Circuitry Limiting, Circuit Breaker
Rated Power Factor 1
Transfer Time 4ms typical
VA 2000
Watts 2000
Surge Protection & Filtering
EMI/RFI Filtration Yes
Network Protection RJ45 1-in, 1-out
Surge Suppression 2430
Management & Communications
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat
Dry Contacts Yes
Emergency Power Off (EPO) Port Yes
HID Compliant USB Port Yes
LED Indicators Power on, Line mode, Battery mode, Fault, Night mode, Wiring Fault
Management Cable USB Cable, EPO Cable

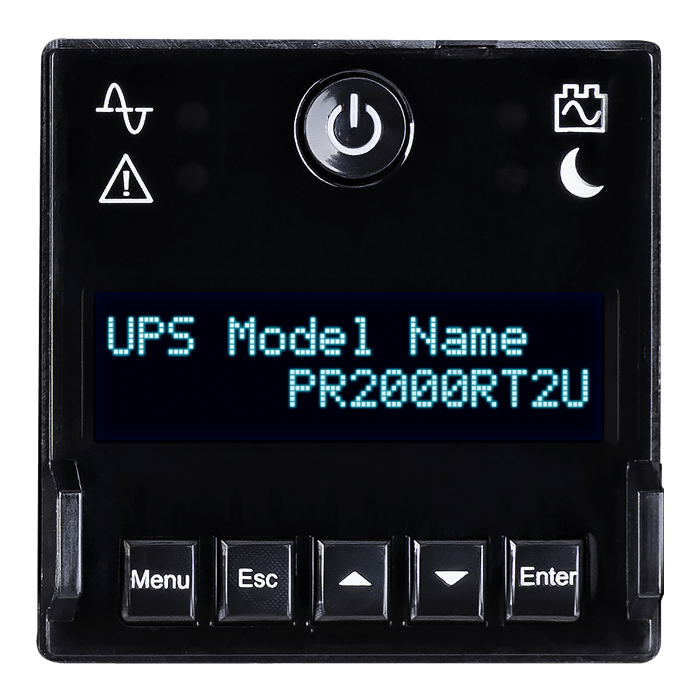

Multifunction LCD Panel 47 Settings (27 setup and control items + 20 status updates and log menus)
SNMP / HTTP Remote Monitoring Yes – pre-installed RMCARD205
Serial Port Yes
Software PowerPanel® Business Edition
Color Black
Enclosure Construction Metal
Form Factor Rack/Tower
Rack Size 2U
Audible noise at 1m from surface of unit 52.5 dBA
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Online Thermal Dissipation 129.6 BTU/hr
Operating Relative Humidity 0 – 95% (non-condensing)
Operating Temperature 32 °F to 104°F (0°C to 40°C)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 5°F to 113°F (-15°C to 45°C)
Environmental RoHS Compliant
Safety UL1778, cUL107.1, FCC Class B
Connected Equipment Guarantee Lifetime
Product Warranty 3 Years Limited
