General | |
Active PFC Compatible | Yes |
Energy Saving | GreenPower UPS™ Bypass Technology |
Energy Star Certified | Yes |
UPS Topology | Line Interactive |
Battery | |
Battery Quantity | 4 |
Battery Size | 12 V / 9 Ah |
Battery Type | Sealed Lead-Acid Battery |
Extended Battery Module | BP48VP2U02 |
Hot Swappable | Yes |
Replacement Battery Cartridge | RB1290X4J |
Replacement Battery Cartridge Quantity | 1 |
Runtime at Full Load | 1.7 min |
Runtime at Half Load | 7 min |
Typical Recharge Time | 3 Hours |
User Replaceable Battery | Yes |
Input | |
Adjustable Voltage Range | 70 – 155 VAC |
Circuit Breaker | 30 A |
Cord Length | 10 ft (3.0 m) |
Input Frequency Range | 47 Hz – 63 Hz |
Input Plug Type | NEMA L5-30P |
Input Voltage | 100 – 120 VAC |
Input Voltage Range | 75 VAC – 155 VAC |
Nominal Input Voltage | 120 VAC |
Plug Style | Straight (Twist Lock) |
Output | |
Automatic Voltage Regulation |
Double Boost Single Buck |
On AC WaveForm | Sine Wave |
On Battery Frequency | 50/60 Hz ± 1% |
On Battery Voltage | 100/110/120 VAC ± 5% |
On Battery Waveform | Sine Wave |

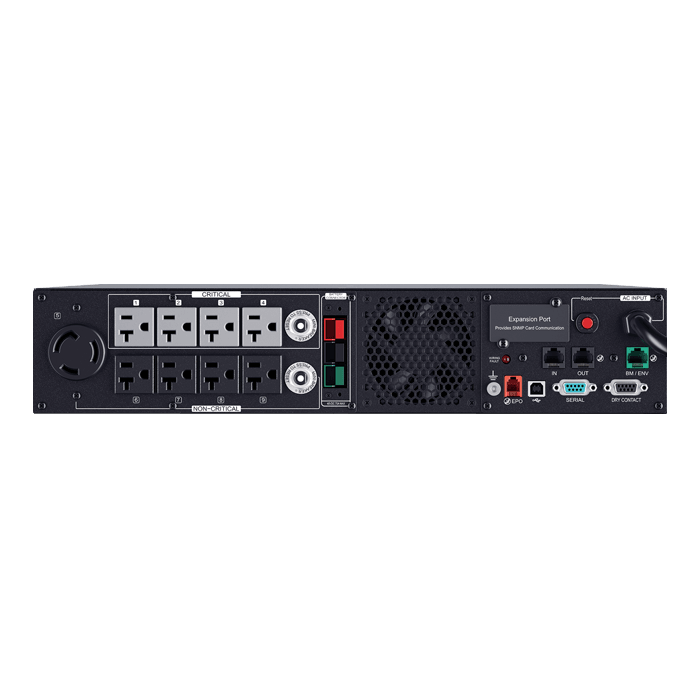

Outlet Type |
8 – NEMA 5-20R 1 – NEMA L5-30R |
Outlets – Battery & Surge Protected | 9 |
Outlets – Critical Load | 4 |
Outlets – Total | 9 |
Output Power Factor | 1 |
Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
Typical Transfer Time | 4 ms |
USB Charge Port | No |
VA | 3000 VA |
Watts | 3000 W |
Surge Protection & Filtering | |
EMI/RFI Filtration | Yes |
Network Protection RJ45 | 1 in / 1 out |
Surge Suppression (Joules) | 2430 J |
Management & Communications | |
Audible Alarms |
Battery Mode Low Battery Overload Overcharge Overheat |
Emergency Power Off (EPO) Port | Yes |
HID Compliant USB Port | Yes |
LCD | Multifunction LCD |
LED Indicators |
Power On Line Mode Battery Mode Fault Night Mode Wiring Fault |
Management Cable |
USB Cable EPO Cable |
SNMP / HTTP Remote Monitoring | Yes – RMCARD205 pre-installed |
Serial Port |
1 Serial 1 Dry Contact |
Software (Free Download) | PowerPanel® Business |
Physical | |
Color | Black |
Form Factor | Rack / Tower |
Material of Construction | Metal |
Rack Height | 2U |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 43.43 x 8.64 x 50.04 (cm) |
Physical Dimensions – (WxHxD) (in) | 17.1 x 3.4 x 19.7 (in) |
Physical Dimensions – (WxHxD) (mm) | 434 x 86 x 500 (mm) |
Physical Weight (kg) | 34.2 |
Physical Weight (lb) | 75.4 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 11.07 |
Shipping – Weight (lb) | 24.4 |
Shipping Dimensions – (WxHxD) (cm) | 56.13 x 27.43 x 61.98 (cm) |
Shipping Dimensions – (WxHxD) (in) | 22.1 x 10.8 x 24.4 (in) |
Shipping Dimensions – (WxHxD) (mm) | 561.34 x 274.32 x 619.76 (mm) |
Environmental | |
Audible noise at 1m from surface of unit | 57.5 dBA |
Online Thermal Dissipation | 120.8 BTU/hr |
Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
Operating Relative Humidity | 0 – 95 % (non-condensing) |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
Storage Relative Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
Certifications | |
Environmental | RoHS Compliant |
Safety |
UL1778 VCCI FCC DOC Class A |
Warranty | |
CEG Amount | $400000 |
Connected Equipment Guarantee | Lifetime |
Extended Warranty Option | WEXT5YR-U4B |
Product Warranty | 3 Year Limited Warranty |
