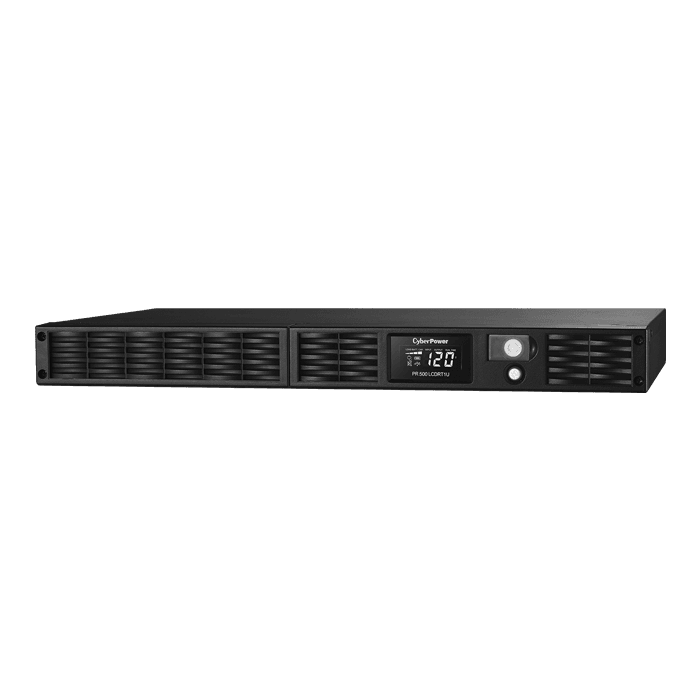

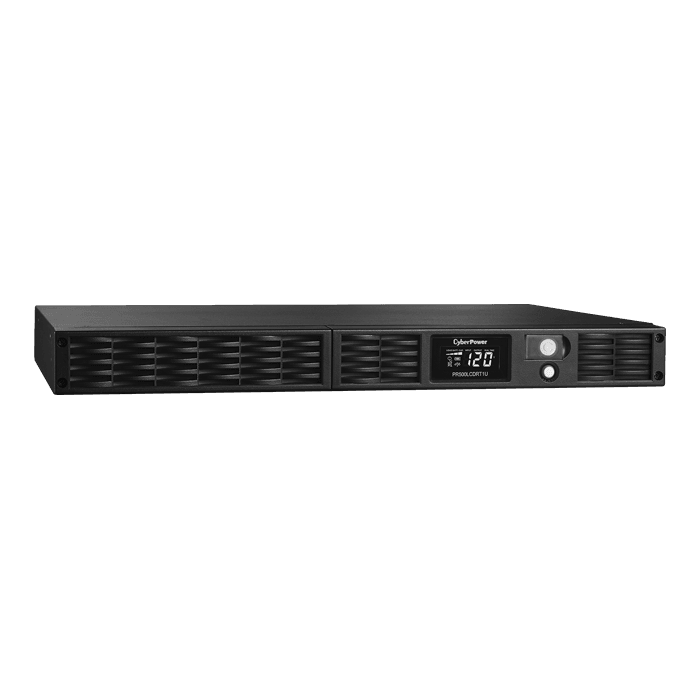

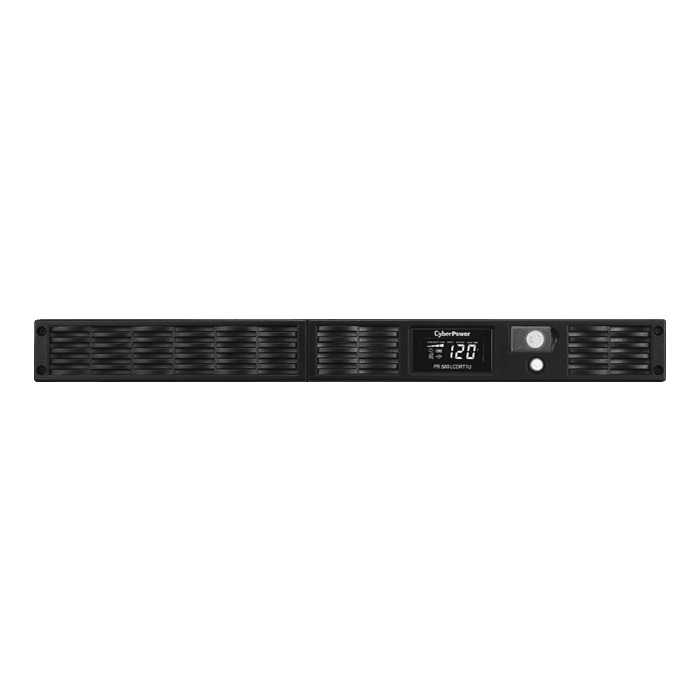

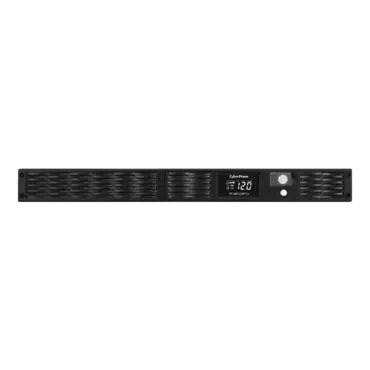

Smart App Sinewave PR500LCDRT1U, 500VA/400W, 120V, 7 Outlets, Black, Tower/1U Rackmount UPS

SKU: 8479539

Manufacturer: CYBERPOWER SYSTEMS

MPN: PR500LCDRT1U

Availability: Available


Price: $299.95
or as low as $10/month
Quantity:
  • Capacity: 500 VA / 400 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Communication: USB, Serial, SNMP, Relay, EPO
  • Management software: PowerPanel® Business Edition
  • Remote management: Yes
  • Warranty: 3 year
General
UPS Topology Line Interactive
Energy Saving GreenPower UPS™ Bypass
Active PFC Compatible Yes
Input
Voltage Nominal 120V VAC
Frequency Range 57 – 63 Hz
Plug Type NEMA 5-15P
Plug Style Right Angle, 45° Offset Right
Cord Length 10 ft
Input Voltage Range 80 – 150 VAC
Output
VA 500 VA
Watts 400 W
Automatic Voltage Regulation Boost 1 +30%

Boost 2 +14%

Buck -12%

On Battery Voltage 120 VAC ± 5%
On Battery Frequency 60 Hz ± 1%
On Battery Waveform Sine Wave

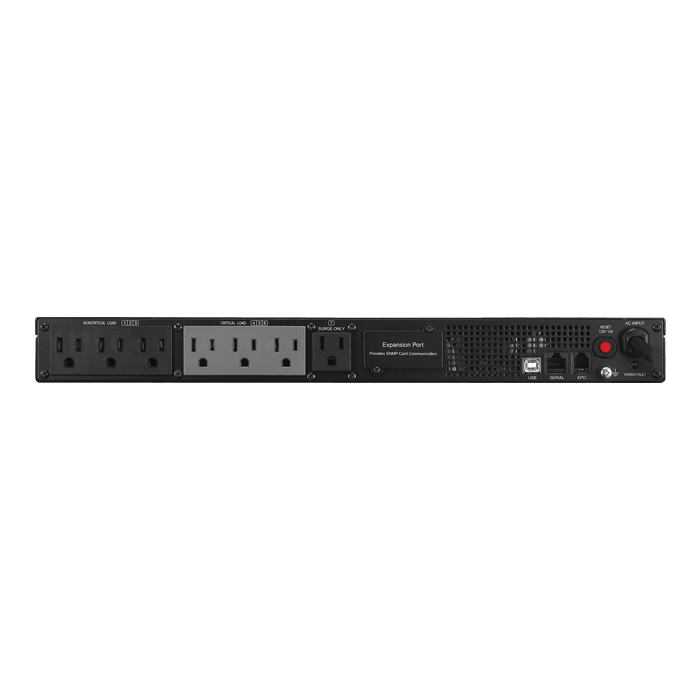

Outlet Type NEMA 5-15R
Outlets – Total 7
Outlets – Critical Load 3
Outlets – Battery & Surge Protected 6
Outlets – Surge-Only Protected 1
Overload Protection Internal Circuitry Limiting

Circuit Breaker

Transfer Time 10 ms
Rated Power Factor 0.8
Battery
Runtime at Half Load 12 minutes
Runtime at Full Load 3 minutes
Battery Type Sealed Lead-Acid
Battery Size 6V/9Ah
Battery Quantity 2
Hot-Swappable Yes
User Replaceable Yes
Replacement Battery Cartridge RB0690X2A
Replacement Battery Cartridge Quantity 1
Typical Recharge Time Less than 6 hours (90% charged)
Surge Protection & Filtering
Surge Suppression 1,030 J
EMI/RFI Filtration Yes
Management & Communications
Multifunction LCD Panel Displays:Current/Load Level

Runtime

Battery Level

Battery In Use

Input Voltage

Output Voltage

Overload

Silent Mode

Normal Mode

HID Compliant USB Port Yes
Serial Port Yes
Emergency Power Off (EPO) Port Yes
LED Indicators Power On

Wiring Fault

Audible Alarms On Battery

Low Battery

Overload

Software PowerPanel® Business Edition
SNMP / HTTP Remote Monitoring Yes, with optional RMCARD205
Contact Closure No
Cable Management USB Cable

Serial Cable

EPO Cable

Physical
Rack Size 1U
Form Factor Rack/Tower
Dimensions – W×H×D (in) 17.25 × 1.75 × 9.5 inches
Weight (lbs) 19.8 lbs
Shipping Dimensions – W×H×D (in) 20.8 × 6.2 × 13.2 inches
Shipping Weight (lbs) 25.3 lbs
Environmental
Operating Temperature 32 – 104 °F (0 – 40 °C)
Operating Humidity 0 – 95% (non-condensing)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
AC Mode Thermal Dissipation 31 BTU/Hr
Certifications
Safety UL1778

CSA C22.2 NO.107.3-05

FCC DOC Class A

Environmental RoHS Compliant
Warranty
Product Warranty 3 Years Limited
Connected Equipment Guarantee Lifetime
