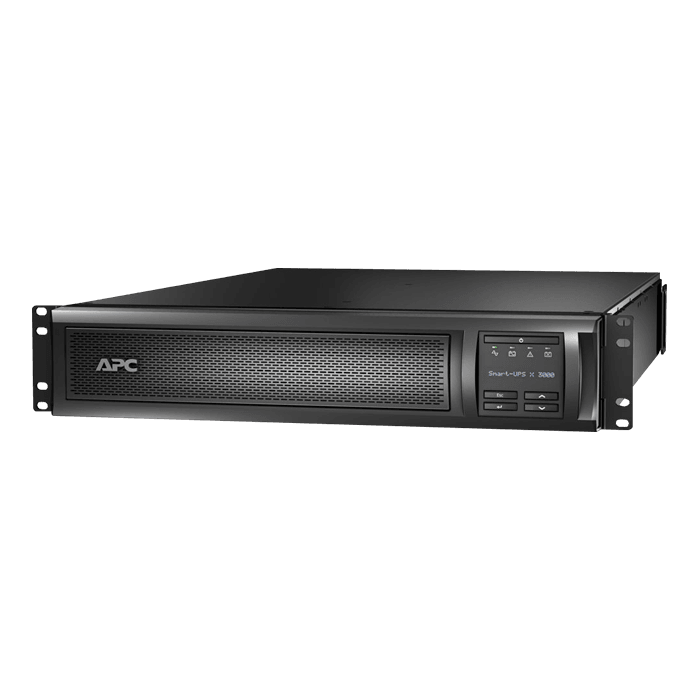

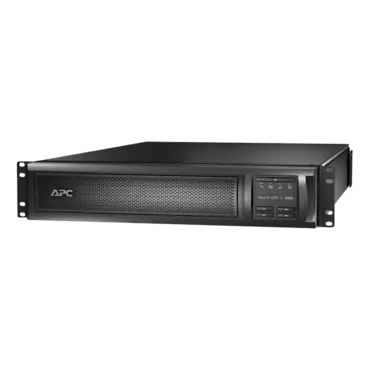

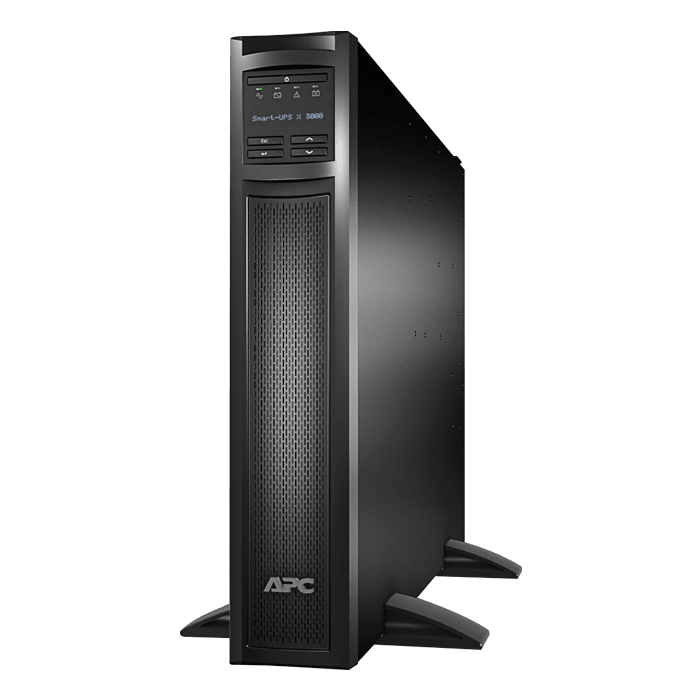

Smart-UPS X SMX3000RMLV2U, 3000 VA/2700 W, Sine Wave, 2U Rackmount/Tower UPS

Quantity:
  • SKU: 4572903
  • Manufacturer: APC
  • MPN: SMX3000RMLV2U
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$2,041.90
Quantity:
Smart-UPS X SMX3000RMLV2U, 3000 VA/2700 W, Sine Wave, 2U Rackmount/Tower UPS
APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V
Output
  • Output power capacity
    2.7 KWatts / 2.88 kVA
  • Max Configurable Power (Watts)
    2.7 KWatts / 2.88 kVA
  • Nominal Output Voltage
    120V
  • Output Voltage Distortion
    Less than 5%
  • Output Frequency (sync to mains)
    50/60Hz +/- 3 Hz
  • Topology
    Line Interactive
  • Waveform type
    Sine wave

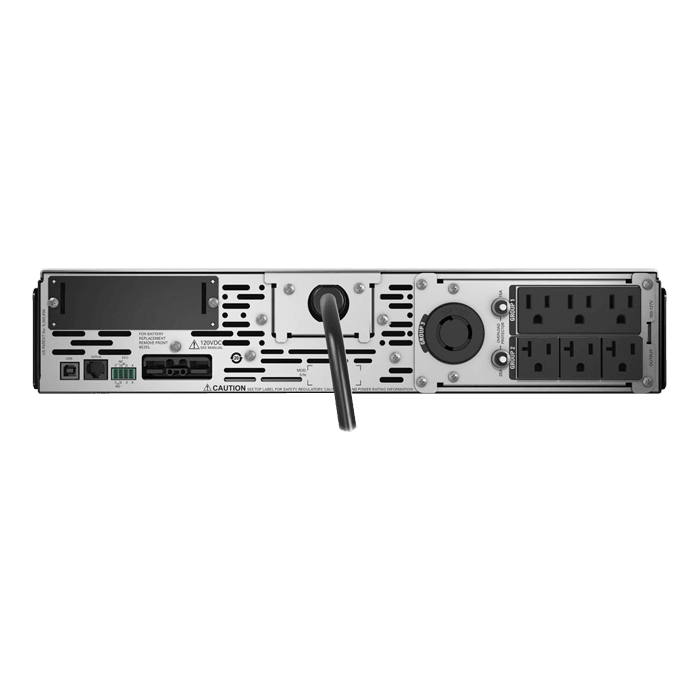

  • Output Connections
    (3) NEMA 5-15R (Battery Backup)
    (3) NEMA 5-20R (Battery Backup)
    (1) NEMA L5-30R (Battery Backup)
  • Transfer Time
    2-4 ms
  • Transfer Time
    4ms typical : 8ms maximum
Input
  • Nominal Input Voltage
    120V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    NEMA L5-30P
  • Cord Length
    8ft ( 2.44meters )
  • Input voltage range for main operations
    70 - 153V
  • Number of Power Cords
    1
  • Transfer Time
    2-4 ms
Batteries & Runtime
Communications & Management
  • Interface Port(s)
    SmartSlot , USB
  • Control panel
    LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO)
    Yes
  • Available SmartSlot™ Interface Quantity
    1
Surge Protection and Filtering
  • Surge energy rating
    540Joules
  • Data Line Protection
    --
  • Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
  • Maximum Height
    3.36inches ( 85mm , 8.5CM )
  • Maximum Width
    17.0inches ( 432mm , 43.2CM )
  • Maximum Depth
    26.26inches ( 667mm , 66.7CM )
  • Rack Height
    2U
  • Net Weight
    84.6lbs. ( 38.45KG )
  • Shipping weight
    99.79lbs. ( 45.36KG )
  • Shipping Height
    9.58inches ( 243mm , 24.3CM )
  • Shipping Width
    23.48inches ( 596mm , 59.6CM )
  • Shipping Depth
    34.23inches ( 869mm , 86.9CM )
  • Color
    Black
  • Pallet Dimensions
    39.369999999999997inches
  • # of Layers per Pallet
    4.0
  • # of Units per Layer per Pallet
    2.0
  • Pallet Weight
    855.12lbs.
  • Units per Pallet
    8.0
Environmental
  • Operating Temperature
    32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-10000ft ( 0-3000meters )
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-50000ft ( 0-15000meters )
  • Audible noise at 1 meter from surface of unit
    55.0dBA
  • Online thermal dissipation
    276.0BTU/hr
Conformance
  • Approvals
    BSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR V1.0 (USA), FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
  • Equipment protection policy
    Lifetime : $150000
  • Standard warranty
    3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available
Sustainable Offer Status
  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
