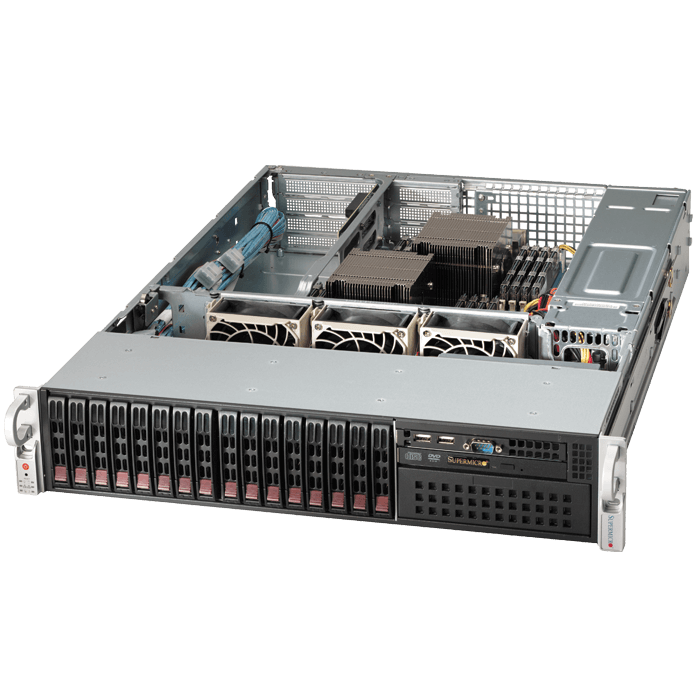

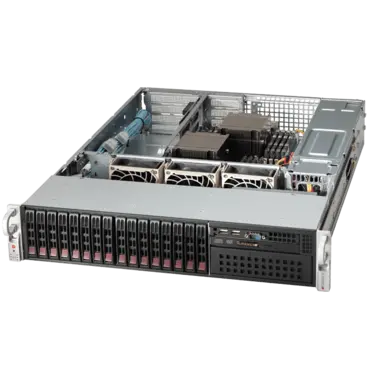

- 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 16.5", motherboards
- 16 x 2.5" hot-swap SAS2/SATA drive bay, 1 x 5.25" drive bay
- 16-port 2U SAS 6Gbps direct-attached backplane, support up to 16x 2.5-inch SAS2/SATA3 HDD/SSD
- 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
- 4 full-height & full-length expansion slot(s) , 3 low-profile expansion slot(s)
- 4 x 80mm high-performance fan(s)
- Optional 3 x fans for 100% cooling redundancy
Product SKUs | |
---|---|
CSE-219A-R920WB |
|
Form Factor |
|
Processor Support |
|
Dimensions | |
Height |
|
Width |
|
Depth |
|
Gross Weight |
|
Packaging (W x H x L) |
|
Available Color |
|
Expansion Slots |
|
Drive Bays |
|
Backplane |
|
Peripheral Drives |
|
Front Panel | |
Buttons |
|
LEDs |
|
Fans |
|
Operating Environment (System) | |
Operating Temperature Range |
|
Non-Operating Temperature Range |
|
Operating Relative Humidity Range |
|
Non-Operating Relative Humidity Range |
|
Power Supply | 1U 920W Redundant Platinum Super Quiet power supply W/PMbus |
Power Efficiency |
|
Total Output Power and Input |
|
AC Input Frequency |
|
Dimensions (L x W x H) |
|
Output Type |
|
+12V |
|
+5Vsb |
|
Power Distributor |
|
Certification |
|
Regulatory (Power Supply) | |
Power Supply Safety / EMC |
|
Standard Parts List | |||
---|---|---|---|
Part Number | Qty | Description | |
Air Shroud | MCP-310-29002-0N | 1 | SC829/219 Intel DP X9, X8 PC air shroud, 12.8x16.5MB |
HD Backplane | BPN-SAS-213A | 1 | 16-port 2U SAS 6Gbps direct-attached backplane, support up to 16x 2.5-inch SAS2/SATA3 HDD/SSD |
Cable(S) | CBL-0071 | 1 | Front control cable ROUND 16 pin TO 16 pin RIBBON 30" (76cm), 28AWG |
Cable(S) | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
CD-ROM & Accessory | MCP-290-00007-01 | 1 | Black DVD dummy cover for SC825, 836 |
Fan(s) | FAN-0126L4 | 4 | 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing |
Front Panel | MCP-280-00018-0N | 1 | SC826 front control board adapter |
Cooling Fan & Accessory | MCP-320-82902-0N | 1 | Fan tray for 4pcs 80x38 hot-swap fan for SC829, SC219 |
Drive Tray(s) | MCP-290-00079-0B | 1 | Black 5.25inch Drive Dummy Cover, Short Depth Square Pattern |
Drive Tray(s) | MCP-220-00023-01 | 1 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 |
Drive Tray(s) | MCP-220-00047-0B | 16 | Black gen 3rd hot-swap 2.5inch HDD tray |
Power Distributor | PDB-PT213-S8824 | 1 | SC213 24PIN SHORT CABLE PWR DISTRIBUTOR |
Power Supply & Accessory | PWS-920P-SQ | 2 | 920W 1U Redundant PWS W/ Quiet Mode |
Mounting Rail(s) | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2";W |
Rear Window | MCP-240-00104-0N | 1 | 2U W+IO rear window for SC829, SC219 |
Optional Parts List | |||
---|---|---|---|
Part Number | Qty | Description | |
Rail | MCP-290-00058-0N | 1 | Short rail set, quick release, 19.6"~26.9" Extendable Length |
Tray(s) | MCP-220-00007-01 | 1 | Black USB/COM port tray for SC825, 836 |
SATA DVD Kit | MCP-220-81502-0N | 1 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 |
Cable Management Arm | MCP-290-00073-0N | 1 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis |
Air Shroud | MCP-310-82901-0N | 1 | Air shroud for SC829, X8 16.5" DP |
