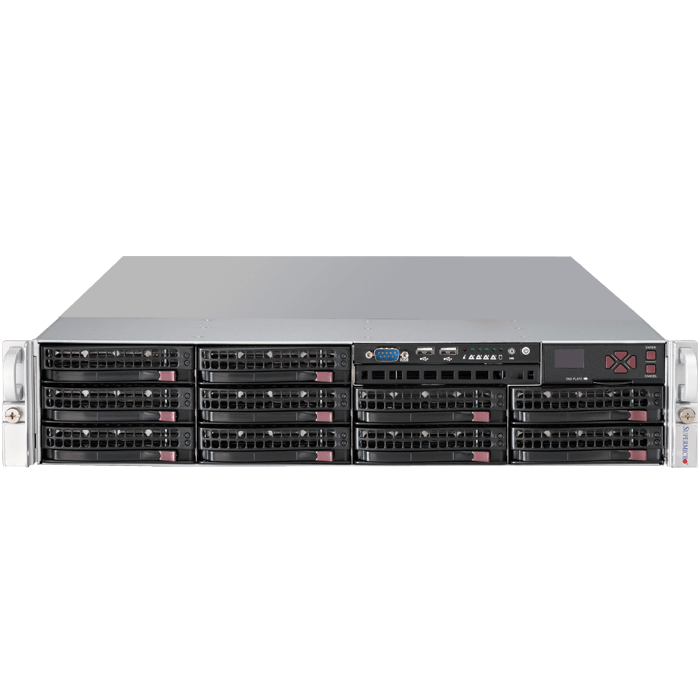

SuperChassis 829BTQ-R920WB, 10x 3.5" Hotswap Bays, 920W Rdt PSU, Proprietary, Black, 2U Chassis

Quantity:
  • SKU: 6705880
  • Manufacturer: SUPERMICRO
  • MPN: CSE-829BTQ-R920WB
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,281.57
Quantity:
  1. 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 16.5" motherboards
  2. 10 x 3.5" hot-swap SAS/SATA
  3. 10-port 2U CSE-829 TQ (W/ AMI 9072 SGPIO support) backplane, support up to 10x 3.5-inch SAS/SATA HDD
  4. 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
  5. 4 full-height & full-length expansion slot(s) , 3 low-profile expansion slot(s)
  6. 4 x 80mm 9500 RPM fan(s)
  7. Optional 3 x fans for 100% cooling redundancy
Product SKUs
CSE-829BTQ-R920WB
  • SuperChassis 829BTQ-R920WB
Form Factor
  • 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 16.5" motherboards
Processor Support
  • Dual Intel® and AMD processors
Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 27.75" (705 mm)
Gross Weight
  • 55 lbs (24.95 kg)
Packaging (W x H x L)
  • 25.9" (658 mm) x 10.8" (274 mm) x 39.3" (998 mm)
Available Color
  • Black
Expansion Slots
  • 4 full-height & full-length expansion slot(s)
  • 3 low-profile expansion slot(s)
Drive Bays
  • 10 x 3.5" hot-swap SAS/SATA
Backplane
  • 10-port 2U CSE-829 TQ (W/ AMI 9072 SGPIO support) backplane, support up to 10x 3.5-inch SAS/SATA HDD
Peripheral Drives
  • Optional 1 x slim DVD-ROM drive bay
  • 2 x USB 2.0 ports
  • 1 x COM port tray
Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 4 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • Power Fail LED
  • System Information LED
Systems Cooling
Fans
  • 4 x 80mm 9500 RPM fan(s)
  • Optional 3 x fans for 100% cooling redundancy
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency
  • 94%
Total Output Power and Input
  • 920W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 75A / Min: 1A (100Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT213-S8824
  • O/P: 12V/100
  • +5V Max: 45
  • +3.3V Max: 24
  • -12V Max: 0.6
Certification
  • Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-29002-0N 1 SC829/219 Intel DP X9, X8 PC air shroud, 12.8x16.5MB
HD Backplane BPN-SAS-829BTQ 1 10-port 2U CSE-829 TQ (W/ AMI 9072 SGPIO support) backplane, support up to 10x 3.5-inch SAS/SATA HDD
Cable(S) CBL-0071 1 Front control cable ROUND 16 pin TO 16 pin RIBBON 30" (76cm), 28AWG
Cable(S) CBL-0157L 1 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Cable(S) CBL-0180L-01 1 SET OF 4 SATA 70/59/48/38CM ROUND S-RA, 26AWG
CD-ROM & Accessory MCP-290-00036-0B 1 Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
Fan(s) FAN-0118L4 4 80 x 80 x 38 mm, 9.5K RPM, 4-pin PWM Fan, Hot
Cooling Fan & Accessory MCP-320-82902-0N 1 Fan tray for 4pcs 80x38 hot-swap fan for SC829, SC219
Drive Tray(s) MCP-220-00075-0B 10 Black gen 5.5 hot-swap 3.5"; HDD tray
Power Distributor PDB-PT213-S8824 1 SC213 24PIN SHORT CABLE PWR DISTRIBUTOR
Power Supply & Accessory PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-00104-0N 1 2U W+IO rear window for SC829, SC219
Optional Parts List
  Part Number Qty Description
Cable Management Arm MCP-290-00073-0N 1 Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Adaptor Bracket MCP-120-82503-0N 1 Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
Air Shroud MCP-310-82901-0N 1 Air shroud for SC829, X8 16.5" DP
Air Shroud MCP-310-29015-0N 1 SC829B Air Shroud for X9DAX
Fan Kit MCP-320-82903-0N 1 Redundant fan kit for SC829, SC219
Rail MCP-290-00058-0N 1 Short rail set, quick release, 19.6"~26.9" Extendable Length
HDD Tray Converter MCP-220-00043-0N 1 Black hotswap gen 4 3.5 to 2.5 HDD tray
HDD Tray Converter MCP-220-00118-0B 1 Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
HDD Kit MCP-220-82616-0N 1 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Cable CBL-0157L-01 1 8 pin to 8 pin ribbon SGPIO cable with tube, 60cm, PBF
Cable CBL-0097L-03 1 Ipass to 4 SATA, 51cm, W/51cm SB, S, 30AWG
Cable CBL-0237L-01 1 IPASS TO 4 SATA 70CM W/ 70cmSB, S. 30AWG
Cable CBL-0481L 2 81CM 30AWG SATA S-S cable
