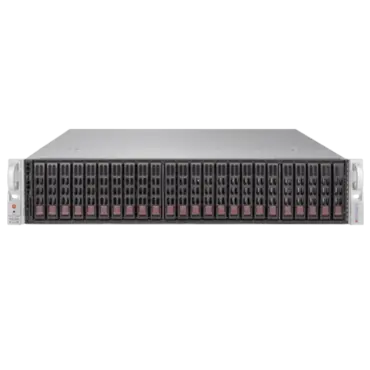

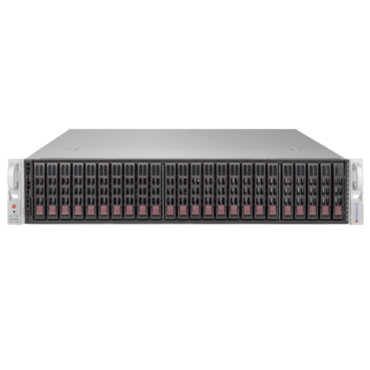

SuperServer 2029P-ACR24H, 2U, Intel C624, 24x SATA/SAS, 16x DDR4, Dual 10Gb Ethernet, 1200W Rdt PSU

Quantity:

SKU: 11596321
Manufacturer: SUPERMICRO
MPN: SSG-2029P-ACR24H
Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

Starting At

$3,289.57

Product SKUs
SSG-2029P-ACR24H	SuperServer 2029P-ACR24H (Black)
Motherboard
Super X11DPH-T
Processor/Cache
CPU	Dual Socket P (LGA 3647) Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W
Cores	Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity	16 DIMM slots Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset	Intel® C624 chipset
SAS	SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID 3 Broadcom 3108 controller RAID 0, 1, 5, 6, 10, 50, 60
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC
Input / Output
LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	4 USB 3.0 ports (rear) 1 Type A
Video	1 VGA port
Serial Port / Header	1 Fast UART 16550 port / 1 Header
System BIOS
BIOS Type	256Mb AMI UEFI
Management
Software	Intel® Node Manager IPMI 2.0 NMI SPM, SUM SuperDoctor® 5 Watchdog
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	2U Rackmount
Model	CSE-216BE1C4-R1K23LPB
Dimensions
Width	17.2" (437mm)
Height	3.5" (89mm)
Depth	24.8" (630mm)
Gross Weight	61 lbs (27.7 kg)
Available Colors	Black
Front Panel
Buttons	Power On/Off button System Reset button
LEDs	Power status LED Hard drive activity LED Network activity LEDs System Overheat LED Power fail LED
Expansion Slots
PCI-Express	3 PCI-E 3.0 x16 slot 4 PCI-E 3.0 x8 slots
Drive Bays
Hot-swap	24 Hot-swap 2.5" SAS3/SATA3 drive bays
Optional	2 Optional Onboard NVMe M.2
Backplane
SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots
System Cooling
Fans	3 Hot-swap 8cm redundant PWM cooling fans
Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power	1000W/1200W
Dimension (W x H x L)	76 x 40 x 336 mm
Input	100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz
+12V	Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac)
+5Vsb	Max: 4A / Min: 0A
Output Type	19 Pairs Gold Finger Connector
Certification	80 Plus UL/cUL/CB/BSMI/CE/CCC Titanium Level
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
