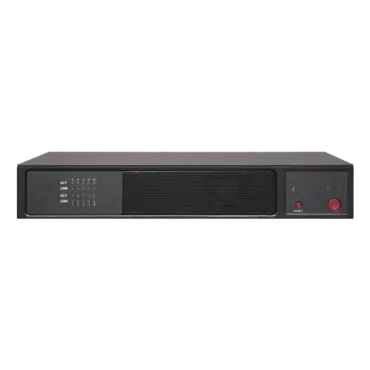

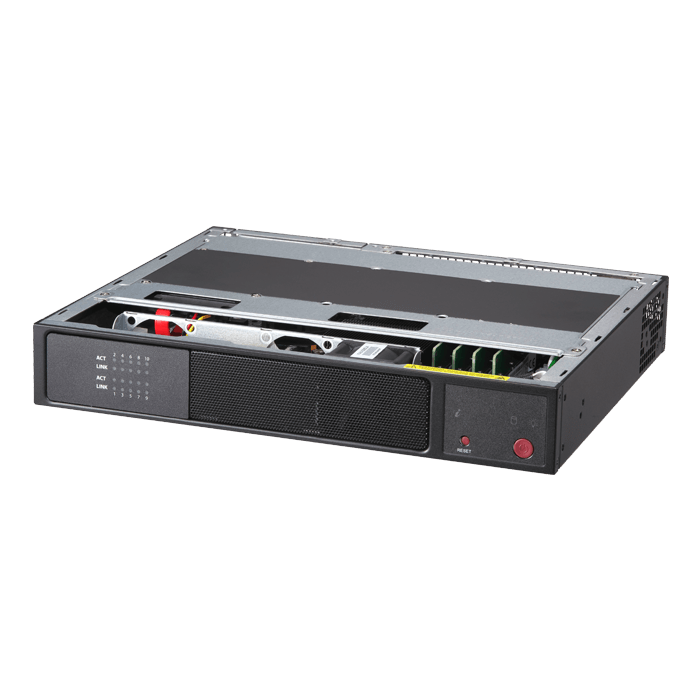

SuperServer E300-9A-8C, Mini-1U, Intel® Atom® C3758, 2x 2.5", SuperDOM, 4x DDR4, 4x 1Gb Ethernet, 84W DC power adapter
SuperServer E300-9A-8C, Mini-1U, Intel® Atom® C3758, 2x 2.5", SuperDOM, 4x DDR4, 4x 1Gb Ethernet, 84W DC power adapter
SuperServer E300-9A-8C, Mini-1U, Intel® Atom® C3758, 2x 2.5", SuperDOM, 4x DDR4, 4x 1Gb Ethernet, 84W DC power adapter

SuperServer E300-9A-8C, Mini-1U, Intel® Atom® C3758, 2x 2.5", SuperDOM, 4x DDR4, 4x 1Gb Ethernet, 84W DC power adapter

Quantity:
  • SKU: 12056259
  • Manufacturer: SUPERMICRO
  • MPN: SYS-E300-9A-8C
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,075.24
Quantity:

- Network Security Appliance
- Embedded IoT Gateway
- Networking Edge Device

  1. Intel® Atom® processor C3758,
    Single socket FCBGA 1310
  2. System on Chip
  3. 1 fixed 2.5" drive bay (Top drive bay
        area is shared with AOC. Please
        remove riser card when installing
        2.5" drive on the top.)
  4. Up to 256GB registered ECC,
    up to 64GB unbuf. ECC/non-ECC,
    DDR4-2400MHz, in 4 DIMM slots
  5. 1 PCI-E 3.0 x4 AOC slot (LP)
  6. 4 GbE LAN ports w/ Intel C3000 SoC
  7. 2 USB 2.0, 1 M.2 M Key 2242/2280
  8. 1 VGA via BMC
  9. 2x 40mm chassis fan, passive CPU
    heat sink
  10. 84W DC power adapter
Product SKUs
SYS-E300-9A-8C
  • SuperServer E300-9A-8C (Black)
Motherboard
Super A2SDi-8C-HLN4F
Processor/Cache
CPU
  • Intel® Atom® processor C3758
  • 8 Cores, 2.2GHz
  • CPU TDP support 25W
  • FCBGA 1310
System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 256GB DDR4 ECC RDIMM
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
  • 2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
  • 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
    (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers
  • Quad Gigabit Ethernet LAN via Intel® C3000 SoC
Graphics
  • Aspeed AST2400
Input / Output
SATA
  • 2 SATA3 (6Gbps) ports
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (rear)
Display
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) power connector
TPM
  • TPM 2.0 header
Chassis
Form Factor
  • Mini-1U
Model
Dimensions
Width
  • 10" (254mm) / 15" (381mm) - pkg.
Height
  • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth
  • 8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.45 lbs (1.56 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)
Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x4 AOC slot (LP)
Drive Bays / Storage
Internal
  • 2 fixed 2.5" drive bays, one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)
M.2
  • Interface: PCI-E 3.0 x2
  • Form Factor: M Key 2242/2280
System Cooling
Fans
  • 2x 40mm chassis fan
Power Supply
84W DC power adapter System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • UEFI 2.4
  • SMBIOS 2.7.1
Management
Software
Power Configurations
  • ACPI / APM Power Management
  • CPU thermal trip support for processor protection
  • Power-on mode for AC power recovery
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
