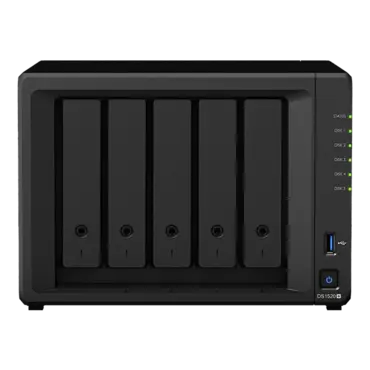

Description: Synology DS1520+, Intel® Celeron® J4125, 5-Bay, SATA, NAS Server Storage System
(configuration # 14429002) QTY: 1 Unit Price:$XXXX Total Price:$XXXX
or as low as $XXX/month
Share your Configuration
Email successfully sent
Let us Help You
Need Expert Advice?
Our technical support staff is here to help in any way that they can! please fill out the form below and a friendly technician will contact you.
Email a Quote
Email successfully sent
or as low as $XXX/month
Intel Celeron J4125
4-core 2.0 (base) / 2.7 (burst) GHz
Hardware Encryption Engine (AES-NI)
8 GB DDR4 non-ECC
Memory Module Pre-installed
8 GB (4 GB + 4 GB)
Total Memory Slots
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified
with the same benchmark to ensure identical performance.
Maximum Drive Bays with Expansion Unit
15 (DX517 x 2)
M.2 Drive Slots
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe SSD
Maximum Single Volume Size*
Hot Swappable Drive
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
Each internal volume (may consist of multiple drives) is expandable up to 108TB.
RJ-45 1GbE LAN Port
4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
exFAT Access is purchased separately in Package Center.
Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear.
Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
0°C to 40°C (32°F to 104°F)
-20°C to 60°C (-5°F to 140°F)
5% to 95% RH
The warranty period starts from the purchase date as stated on your purchase receipt.
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1
Expansion Units: DX517
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5200
M.2 2280 NVMe SSD: SNV3400
Surveillance Device License Pack
