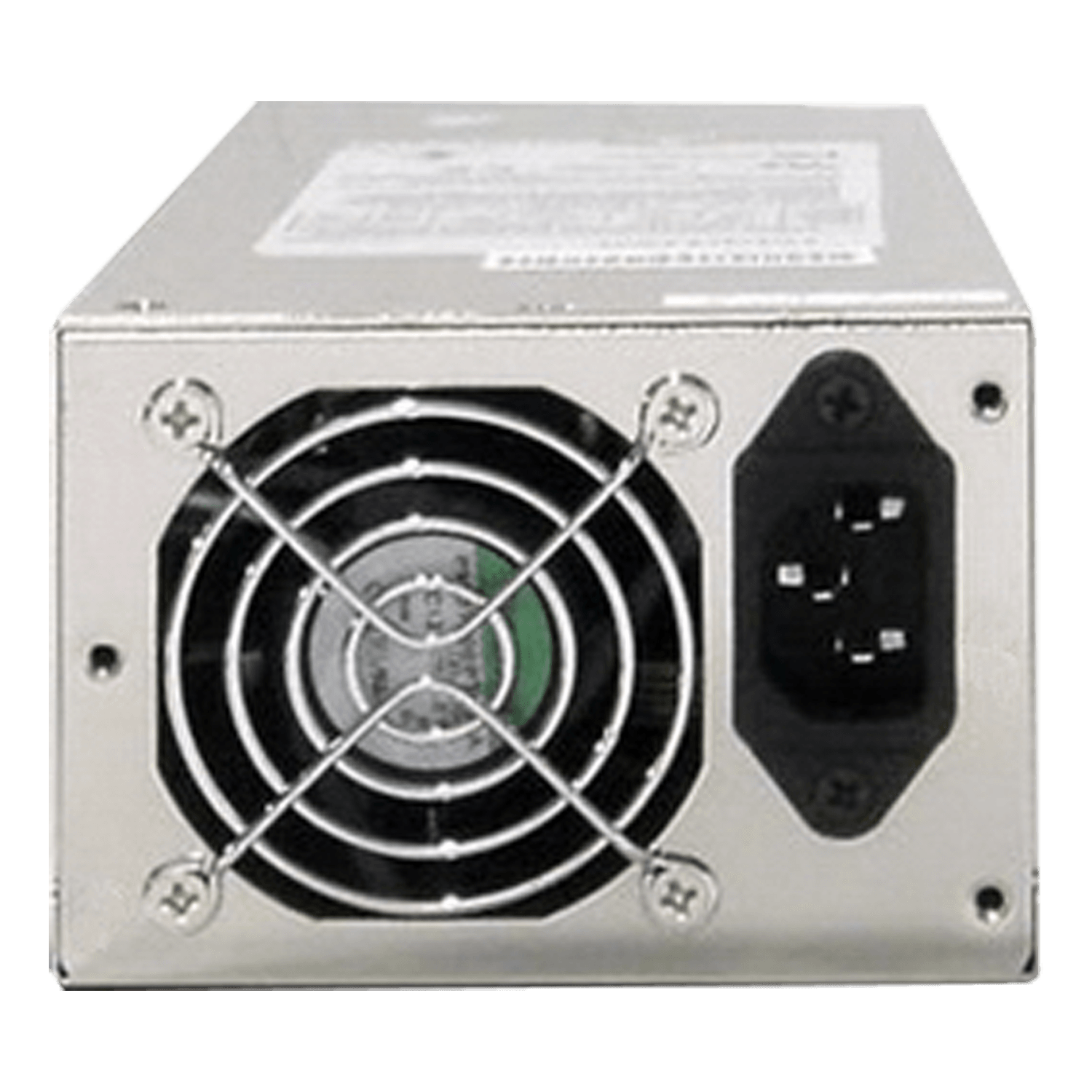

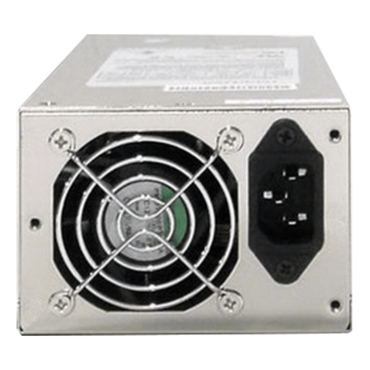

TC-2U80PD8, 80 PLUS Standard, 800W, Single, 2U Power Supply
- SKU: 11438965
- Manufacturer: ISTARUSA
- MPN: TC-2U80PD8
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$330.05
TC-2U80PD8, 80 PLUS Standard, 800W, Single, 2U Power Supply
XEAL 2U power supply series provide high performance in compact form factor. The TC-2U80PD8 supports server, compact PC, and space constrained application. Standard feature includes high efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.
TC-2U80PD8 2U 800W High Efficiency Switching Power Supply
- High Efficiency 80% minimum
- Universal Power Input
- Over Current Protection
- Over Voltage Protection
- Over Power Protection
- Short Circuit Protection
| Model Number | TC-2U80PD8 |
| RoHS Compliance | Yes |
| Output Wattage | 800 |
| Efficiency | 80-84% |
| Connector Type | Main Connector :: 20+4 pin
4pin 12V :: 1 8pin EPS 12V :: 2 6+2 Pin PCIE :: 4 Molex :: 5 SATA :: 2 Floppy :: 2 |
| Dimensions (WxHxD) | 3.94" x 2.76" x 11.02"
100.1 mm x 70.1 mm x 279.9 mm |
