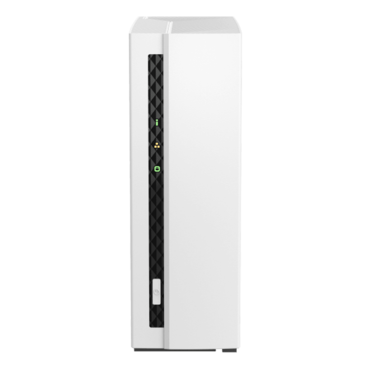

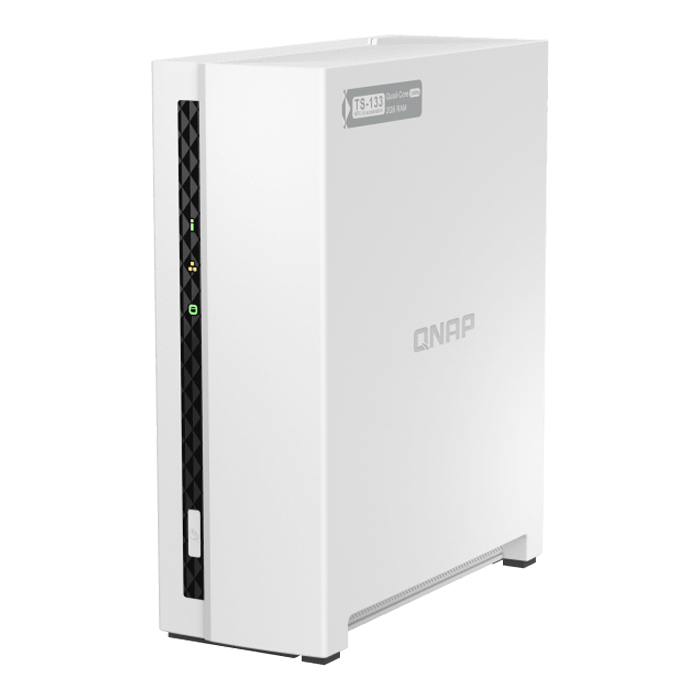

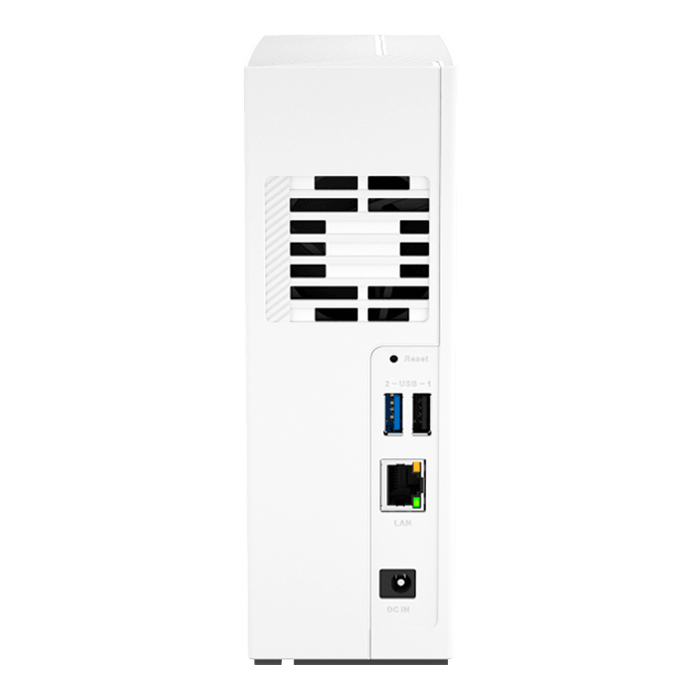

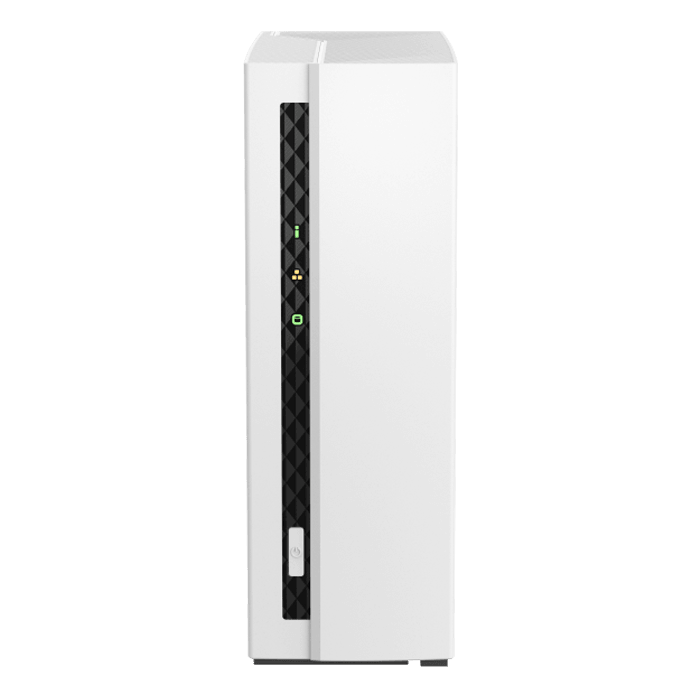

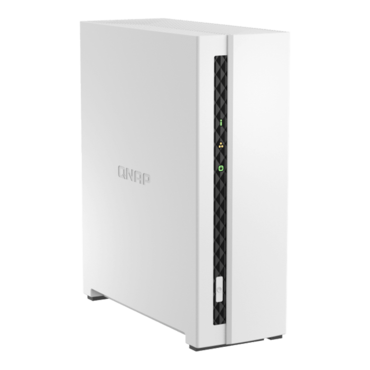

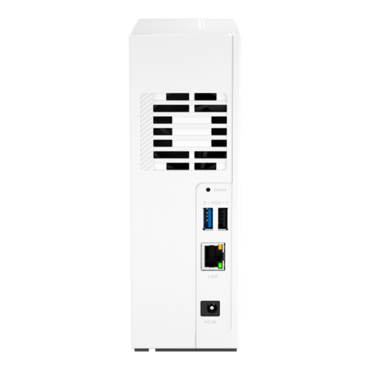

TS-133 1-bay NAS Server, ARM 4-core Cortex-A55 1.8GHz processor, 2GB RAM (not expandable), SATA 6Gb/s, 1GbLAN / 1, Type-A USB 3.2 Gen1 / 1, 36W PSU

Quantity:
  • SKU: 14809348
  • Manufacturer: QNAP
  • MPN: TS-133-US
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$151.86
Quantity:
CPU ARM 4-core Cortex-A55 1.8GHz processor
CPU Architecture 64-bit ARM
Floating Point Unit
Encryption Engine
System Memory 2 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
Maximum Memory 2 GB on board (non-expandable)
Flash Memory 4 GB (Dual boot OS protection)
Drive Bay 1 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Gigabit Ethernet Port (RJ45) 1
Wake on LAN (WOL)
Jumbo Frame
USB 2.0 port 1
USB 3.2 Gen 1 port 1
Form Factor Tower
LED Indicators System Status, LAN, HDD
Buttons Power, Reset
Dimensions (HxWxD) 7.38 × 2.6 × 6.2 inch
Weight (Net) 1.34 lbs
Weight (Gross) 2.8 lbs
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit 36W Adapter, 100-240V
Power Consumption: HDD Sleep Mode 2.74 W
Power Consumption: Operating Mode, Typical 7.32 W
Tested with drives fully populated.
Fan 1 x 50mm, 12VDC
System Warning Buzzer
Standard Warranty 2
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 200
