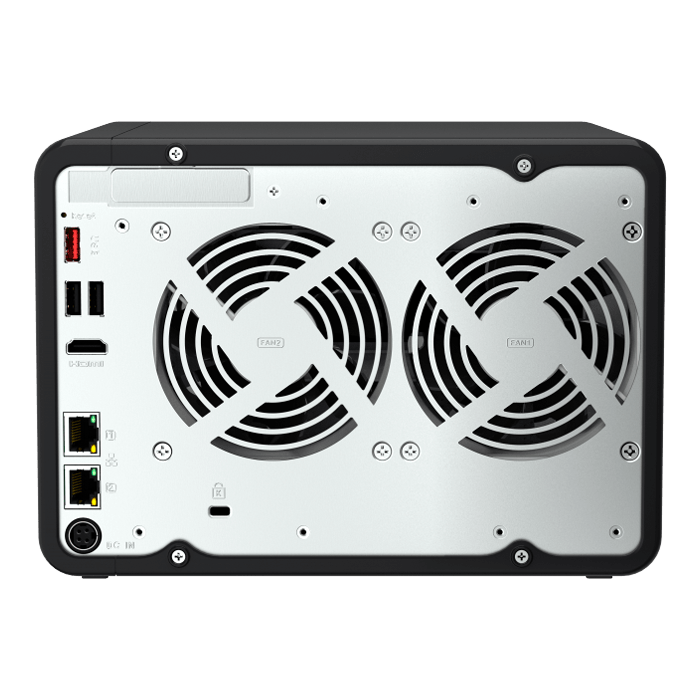

TS-664-4G, 6-bay NAS Server, Intel® Celeron® N5105/N5095, 4-core 2.9GHz processor, 16GB DDR4 RAM (4GB pre-installed), SATA 6Gb/s, 2.5GbLAN / 2, Type-A USB 3.2 Gen 2 / 2, 120W PSU
Quantity:
- SKU: 15139610
- Manufacturer: QNAP
- MPN: TS-664-4G-US
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$789.39
As low as $65.78/ Month*
| CPU | Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | ✔ |
| Encryption Engine | ✔(AES-NI) |
| Hardware-accelerated Transcoding | ✔ |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 16 GB (2 x 8GB) |
| Memory Slot |
2 x SODIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay |
6 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility |
3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | ✔ |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 |
| SSD Cache Acceleration Support | ✔ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| Jumbo Frame | ✔ |
| PCIe Slot |
1 Slot 1: PCIe Gen 3 x2 |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| IR Sensor | (Optional QNAP RM-IR004 remote control) |
| HDMI Output | 1, HDMI 2.0 |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-6 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 168 × 235 × 226 mm |
| Weight (Net) | 2.9 kg |
| Weight (Gross) | 4.56 kg |
| Operating Temperature | 0 ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 120W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode | 23.22 W |
| Power Consumption: Operating Mode, Typical |
44.02 W
Tested with drives fully populated.
|
| Fan | 2 x 90mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | ✔ |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1,500 |
