TTP-1550AH3FCT, 80 PLUS Titanium 1550W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 14553050
  • Manufacturer: THERMALTAKE
  • MPN: PS-TPD-1550FNFATU-1
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$543.14
Quantity:

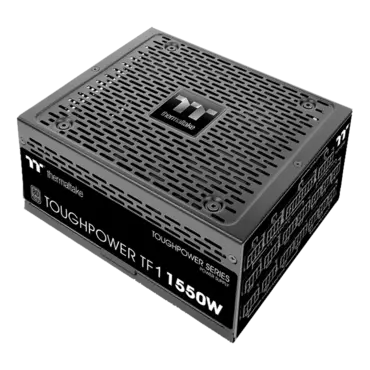

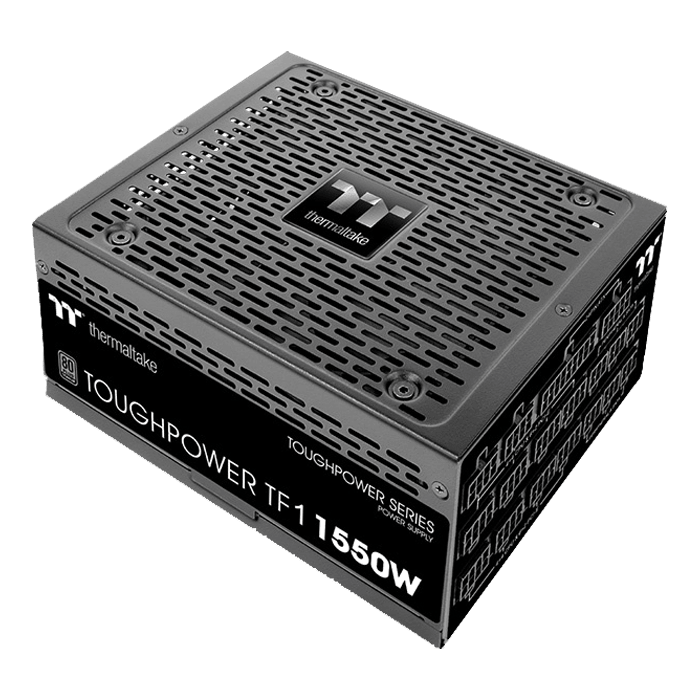

TTP-1550AH3FCT, 80 PLUS Titanium 1550W, Fully Modular, ATX Power Supply

Toughpower TF1 1550W - TT Premium Edition

Designed for overclockers, user’s with high-end system demands, and more, the Toughpower TF1 Titanium 1550W delivers 80 PLUS Titanium efficiency to satisfy their needs. Besides the critical features like <30mV low ripple noise, extremely strict Voltage Regulation < ±2%, and Hold up time> 16 milliseconds, Thermaltake also added three vital features to make sure Toughpower TF1 Titanium 1550W can consistently and safely power up the whole system. Firstly, Low Transient Response Secondly, Inrush current <50 Ampere. Lastly, 12V OCP protection is covered. With all the advantages plus a 10-years warranty, the Toughpower TF1 Titanium 1550W can satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.

P/N PS-TPD-1550FNFATU-1
watts 1550W
RGB Fan No
Form Factor ATX
Model TTP-1550AH3FCT
Max. Output Capacity 1550W
Peak Output Capacity 1860W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 180mm(D)
Weight 2.4kg
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 18A max
Input Frequency Range 47Hz-63Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to + 50°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm PWM fan
Efficiency Meet 80 PLUS® Titanium at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/cTUVus/TÜV/FCC/BSMI/EAC/ CCC
PCI-E Connector 8
