Tempest CX S5542 (S5542WGM4NR), Intel C232, LGA 1151, DDR4-2400 64GBECC UDIMM / 4, VGA, GbLAN / 4, ATX Retail

Quantity:
  • SKU: 11633707
  • Manufacturer: TYAN
  • MPN: S5542WGM4NR
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$324.29
Quantity:

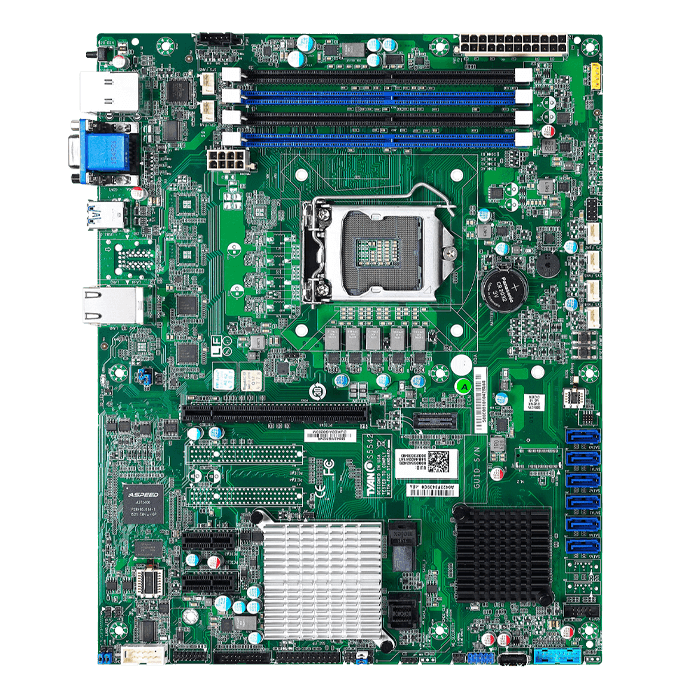

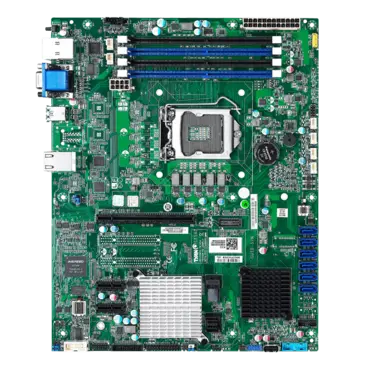

Tempest CX S5542 (S5542WGM4NR), Intel C232, LGA 1151, DDR4-2400 64GBECC UDIMM / 4, VGA, GbLAN / 4, ATX Retail

TYAN Tempest CX S5542 (S5542WGM4NR). TYAN's S5542 is a low cost and versatile ATX form factor motherboard with variants that are great for lightweight applications such as Desktop Virtualization or Object Storage. The motherboard supports Intel E3-1200v5/v6 CPUs with TDP of up to 80 watts and supports up to 64GB of Unbuffered ECC DDR4 memory. The S5542G2NR-UHE and S5542G2NR-UHE-M2 SKUs support Intel's CPU based Iris™ Pro Graphics.

Expansion and I/O

  • The S5542 comes in a variety of PCIe slot configurations for large variety expansion cards. A Gen3 x16 PCIe slot with x8 link allows the use of a riser card in a 1U chassis deployment. For desktop and larger chassis the (2) Gen3 PCIe x1 slots allow for additional expansion cards such as sound and video capture. Additional PCIe slots are added by the S5542GM2NR and S5542GM4NR in the form of a Gen3 x8 slot for a total of (1) x16 (with x8 link), (1) x8, and (2) x1 PCIe Gen3 slots. The S5542G2NR-UHE and S5542G2NR-UHE-M2 take this one step further and maximize PCIe utilization by adding a Gen3 PCIe x8 slot with a x4 link, totaling (5) PCIe expansion slots.

Storage Options

  • The S5542 features support for Intel's Rapid Storage Technology. Intel RST resides on the system PCH and enables the use of RAID through the onboard SATA ports without the cost of purchasing or deploying a dedicated RAID card and without the consumption of a PCIe slot. With driver support for both Windows and Linux operating systems, Intel RST allows IT administrators to greatly reduce the overall system costs incurred when using a hardware RAID solutions.
  • The S5542 motherboard also has an optional onboard Broadcom/LSI SAS3008 controller. Available on the S5542WGM2NR SKU, the SAS3008 adds an additional eight 12Gb/s SAS ports which support the use of both SATA and SAS hard drives.
  • With the optional Broadcom/LSI SAS controller, TYAN's S5542 motherboard is capable of supporting up to 14 hard drives without the need of any additional controller cards. This allows for some very dense and low-cost storage servers when paired with a long depth 1U chassis, perfect for many object storage applications.

Server Management

  • TYAN's S5542WGM2NR, S5542GM2NR, and S5542GM4NR SKUs include enterprise grade server management via an onboard AST2400 BMC with IPMI 2.0 and a dedicated IPMI network port. Complete with an HTML based web management portal and Java based Keyboard-Video-Mouse (KVM) redirection, IPMI allows for both the remote viewing of critical system sensors and for complete remote control of the system to be handed to remote support personnel in times of need. Management features such as IPMI help your business lower the TCO of the system by reducing the amount of time and effort expenditure needed by support technicians.

Processor Socket Type / Q'ty LGA1151 / (1)
Supported CPU Series Intel Xeon processor E3-1200 v6/v5 product family / 7th/6th Gen. Intel Core i3 Processors / Intel Celeron and Intel Pentium
Thermal Design Power (TDP) Wattage Max up to 80W
Chipset PCH Intel C232
Memory Supported DIMM Qty (4) DIMM slots
DIMM Type / Speed Unbuffered ECC UDIMM DDR4 2133/2400
Capacity Up to 64GB
Memory channel 2 Channels
Memory voltage 1.2V
Expansion Slots PCI-E (1) PCI-E Gen.3 x16 slot (w/ x8 link) / (2) PCI-E Gen.3 x1 slots
LAN Q'ty / Port (4) ports + (1) dedicated for IPMI
Controller Intel I210-AT
PHY Broadcom BCM5221 PHY (dedicated for IPMI connection)
Storage SAS Connector (2) Mini-SAS HD connectors (totally support 8 ports)
Controller LSI SAS3008
Speed 12.0 Gb/s
RAID RAID 0/1/1E/10 (LSI Integrated RAID)
SATA Connector (6) SATA
Controller Intel C232
Speed 6.0 Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2400
Input /Output Others (1) Reset button/ (1) Power button
USB (3) USB2.0 ports (2 via cable, 1 Type-A) / (6) USB3.0 ports (4 at rear, 2 via cable)
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (2) GbE ports, (1) Dedicated for IPMI
SAS (2) Mini-SAS HD (4-in-1) connectors
SATA (6) SATA-III connectors
PSMI (1) 1x5-pin header
TPM Module Interface 2 x 8 pin header
System Monitoring Chipset Aspeed AST2400
Fan Total (4) 4-pin headers
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2400
AST2400 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2400 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 16MB
Feature Hardware Monitor / ACPI 5.0 / SMBIOS 3.0/PnP/Wake on LAN / ACPI sleeping states S3,S4,S5 / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection
Physical Dimension Form Factor ATX
Board Dimension 12"x9.6" (305x243.8mm)
Regulation FCC (DoC) Class A
CE (DoC) Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S5542 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
I/O Shield (1) I/O Shield
Cable SATA (2) SATA signal cables
