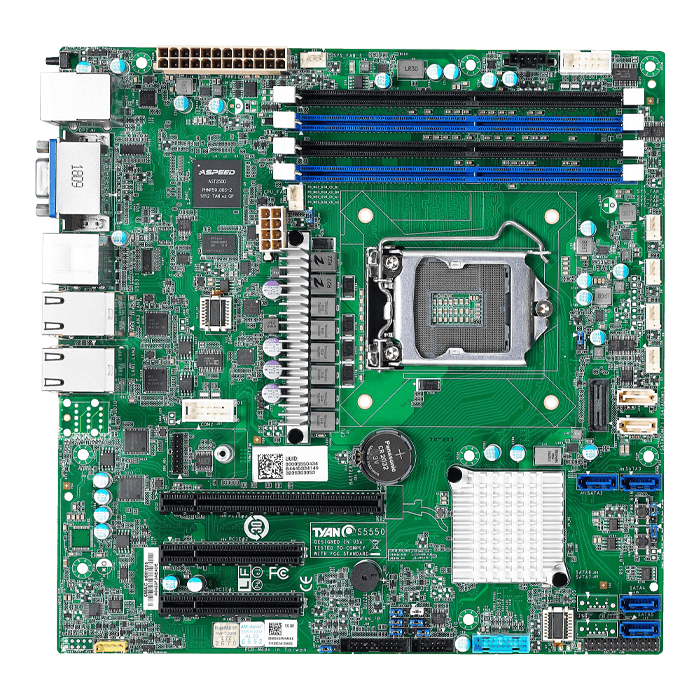

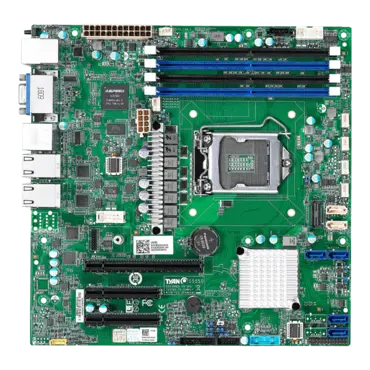

Tempest CX S5550 (S5550GM4NR), Intel C242, LGA 1151, DDR4-2666 128GB ECC UDIMM / 4, SATADOM /2, VGA, GbLAN / 4, microATX Retail
Quantity:
- SKU: 13225387
- Manufacturer: TYAN
- MPN: S5550GM4NR
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$258.74
- 9.6" x 9.6" μATX form factor
- C242 PCH
- 6 SATA 6G ports
- Up to 4 1000Base-T LAN + 1 dedicate 1000Base-T IPMI ports
- 2 PCIe Gen.3 x8 + 1 PCIe Gen.3 x4 (x2 link) slots
- AST2500 BMC with Redfish support
- 1 VGA
| Processor | Q'ty / Socket Type | (1) LGA1151 | |
| Supported CPU Series | Intel Celeron G4900 Series Processors and Intel Pentium Processor G5000 Series / Intel Xeon E-2200/2100 series processors / 9th/8th Gen. Intel Core i3 processors | ||
| Thermal Design Power (TDP) Wattage | Max up to 95W | ||
| Chipset | PCH | Intel C242 | |
| Memory | Supported DIMM Qty | (4) DIMM slots | |
| DIMM Type / Speed | UDIMM ECC DDR4 2666/2400 | ||
| Capacity | Up to 128GB / *Follow latest Intel DDR4 Memory POR | ||
| Memory channel | 2 Channels | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCI-E | (1) PCI-E Gen3 x8 slot / (1) PCI-E Gen3 x8 slot ( w/ x4 link) / (1) PCI-E Gen3 x16 slot (w/ x8 link) | |
| LAN | Q'ty / Port | (4) GbE ports + (1) GbE dedicated for IPMI | |
| Controller | Intel I210 | ||
| PHY | Realtek RTL8211E | ||
| Storage | SATA | Connector | (4) SATA |
| Controller | Intel C242 | ||
| Speed | 6Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||
| sSATA | Connector | (2) SATA-DOM | |
| Controller | Intel C242 | ||
| Speed | 6Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 @60Hz | ||
| Chipset | Aspeed AST2500 | ||
| Input /Output | USB | (2) USB3.1 Gen2 ports (@ rear) / (2) USB3.1 Gen1 ports (@ rear) / (2) USB3.1 Gen1 ports (via Cable) | |
| COM | (2) headers | ||
| VGA | (1) D-Sub 15-pin VGA port (at rear) | ||
| RJ-45 | (4) GbE ports, (1) GbE dedicated for IPMI | ||
| SATA | (6) SATA-III connectors | ||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
| System Monitoring | Chipset | Aspeed AST2500 | |
| Fan | Total (6) 4-pin headers | ||
| Temperature | Monitors temperature for CPU & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / PXE boot support / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S5 | ||
| Physical Dimension | Form Factor | Micro ATX | |
| Board Dimension | 9.6" x 9.6" (243.8 x 243.8mm) | ||
| Regulation | FCC (SDoC) | Class A | |
| CE (DoC) | Class A | ||
| RCM | Class A | ||
| VCCI | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Package Contains | Motherboard | (1) S5550 Motherboard | |
| Manual | (1) Quick Installation Guide | ||
| I/O Shield | (1) I/O Shield | ||
| Cable | SATA | (2) SATA signal cables | |
