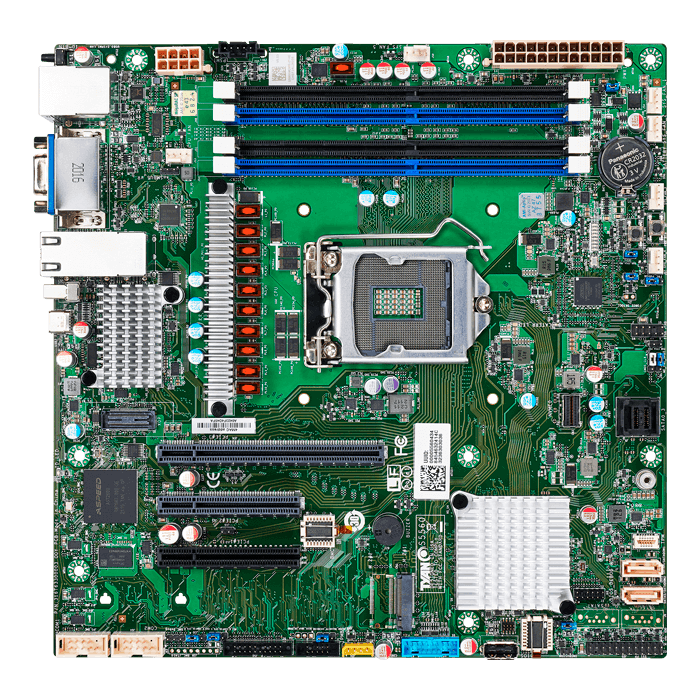

Tempest CX S5560 (S5560GM2NRE-2T), Intel® C252, LGA 1200, DDR4-3200 128GB ECC UDIMM / 4, SATADOM / 2, Display Port, M.2, 10GbLAN / 2, microATX Retail

  • SKU: 14692619
  • Manufacturer: TYAN
  • MPN: S5560GM2NRE-2T
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
Processor Q'ty / Socket Type (1) LGA1200
Supported CPU Series Intel Xeon E-2300 11th Gen. series processor / Intel Pentium series processor
Thermal Design Power Wattage Max up to 95W (TDP)
Chipset PCH Intel C252
Memory Supported DIMM Qty (4) DIMM slots
DIMM Type / Speed DDR4 Unbuffered ECC UDIMM 3200
Capacity Up to 128GB / *Follow latest Intel DDR4 Memory POR
Memory channel 2 Channels per CPU
Memory voltage 1.2V
Expansion Slots PCIe (1) PCIe Gen.4 x16 slot #7 (w/ x8 link) from CPU / (1) PCIe Gen.4 x8 open-end slot #6 (w/ x8 link) from CPU / (1) PCIe Gen.3 x8 open-end slot #5 (w/ x2 link) from PCH
LAN Q'ty / Port (2) 10GbE ports + (1) GbE dedicated for IPMI
Controller Intel X550
PHY Realtek RTL8211FD-CG
Storage SATA Connector (2) SATA-DOM / (1) Mini-SAS HD for (4) SATA ports
Controller Intel C252
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
Storage NVMe Connector (M.2) (1) 22110/2280 (by PCIe Gen.3 x2 )
Graphic VGA Connector type (1) VGA
Resolution Up to 1920x1200 @60Hz
Chipset Aspeed AST2600
Graphic Display Port Connector type (1) Display port 1.2
Resolution Up to 4096X2304 @60Hz
Chipset Intel Processor Graphics (pGFX)

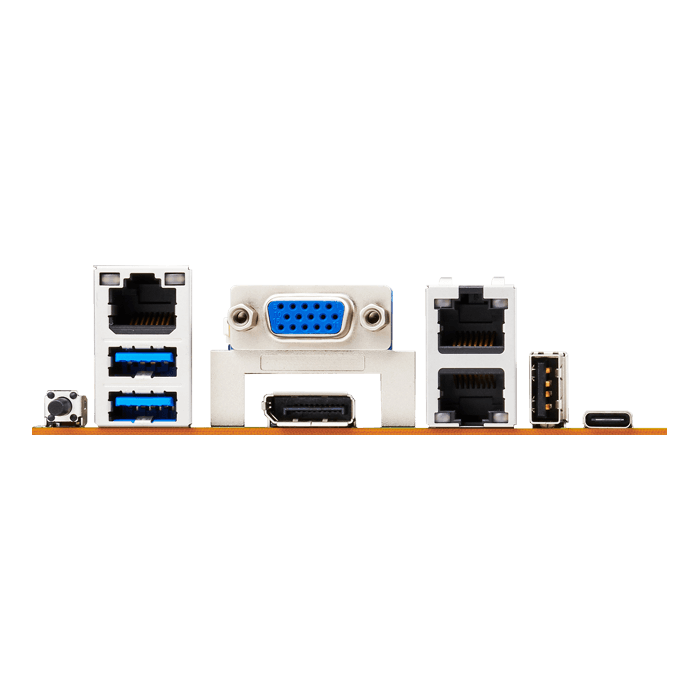

Input /Output USB (1) USB2.0 port (@ rear) / (1) USB3.2 Gen.2 port (Type-C @rear) / (2) USB3.2 Gen.1 ports (via cable) / (2) USB3.2 Gen.2 ports (@rear)
COM (2) DB-9 COM Connector headers
VGA (1) D-Sub 15-pin VGA port (@ rear)
RJ-45 (2) 10GbE ports + (1) GbE dedicated for IPMI
Display port (1) Display port 1.2
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2600
Fan Total (6) 4-pin headers
Temperature Monitors temperature for CPU & memory
Voltage Monitors voltage for CPU, memory, chipset & power supply
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / PXE boot support / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.1/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S5
Physical Dimension Form Factor Micro ATX
Board Dimension 9.6" x 9.6" (243.8 x 243.8mm)
Regulation FCC (SDoC) Class B
CE (DoC) Class B
RCM Class B
VCCI Class B
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S5560 Motherboard
Manual (1) Quick Installation Guide
I/O Shield (1) I/O Shield
Cable SATA (2) SATA signal cables
